Back in the early days of solar, installers pretty much used whatever outdoor-rated rubber cable they could get their hands on. We learned the hard way that the sun is a brutal enemy to insulation.
Then came PV1-F. For years, it was the gold standard—the cable we all trusted to survive 25 years on a roof. But as the solar industry matured, pushing for higher voltages and stricter safety codes, PV1-F began to show its limitations. Enter H1Z2Z2-K.
If you are a solar installer, engineer, or procurement officer today, you are likely staring at spec sheets wondering: Is H1Z2Z2-K just a fancy new name for PV1-F? Can I mix them? Is PV1-F obsolete? We are going to dive into the molecular and electrical differences between these two cables, why the industry shifted, and which one you actually need for your project.
For a broader understanding of the entire solar cable ecosystem before we drill down, I recommend reviewing our comprehensive guide: All About Solar Cable.
Why Are There Two Solar Cable Standards?
PV1-F belongs to the era of the TÜV 2 PfG 1169 standard. It was a German specification that effectively became the global benchmark for photovoltaic cables before international harmonization took over. It was designed primarily for 1000V DC systems.
H1Z2Z2-K is the successor, defined by the European Standard EN 50618. The “H” stands for Harmonized. This standard was introduced to address the growing demand for 1500V DC systems and stricter fire safety regulations (CPR – Construction Products Regulation).
Think of PV1-F as the reliable classic car, and H1Z2Z2-K as the modern EV designed for higher performance metrics and stricter safety crash tests.
PV1-F vs H1Z2Z2-K: How Are They Different?

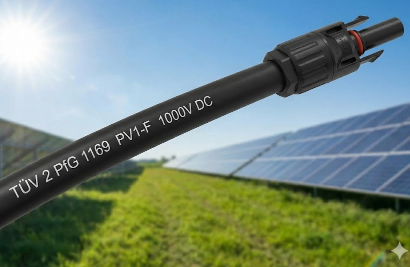

PV1-F: The Legacy Standard
For a long time, PV1-F was the only specialized cable we recommended. It features a flexible tinned copper conductor, insulation, and a sheath made of cross-linked halogen-free material.
Key Characteristics of PV1-F:
- Voltage Rating: Rated for 0.6/1kV AC and roughly 900V/1500V DC (though often limited to 1000V DC systems in practice).
- Temperature Range: -40°C to +90°C.
- Durability: UV resistant, ozone resistant, and generally tough.
However, as solar farms scaled up, we started seeing limitations. In large utility-scale projects, system voltages were pushed to 1500V DC to reduce efficiency losses. To understand why voltage impacts cable choice so heavily, you can read our breakdown of AC vs. DC current and how it dictates insulation thickness.
H1Z2Z2-K: The Modern Harmonized Standard
When EN 50618 was released, it didn’t just rename the cable; it upgraded the testing requirements. The code H1Z2Z2-K tells you exactly what the cable is:
- H: Harmonized type.
- 1: Rated voltage (1.5kV DC).
- Z2: Ozone resistance, applicable to both insulation and sheath.
- K: Flexible conductor (Class 5).
Why H1Z2Z2-K is Superior:
- Voltage: Rated for 1500V DC (and up to 1800V DC max system voltage). Essential for today’s high-voltage solar arrays.
- Water Resistance: While PV1-F typically had an AD7 rating (occasional submersion), high-quality H1Z2Z2-K often meets AD8 standards, meaning it can withstand permanent submersion. That’s a big plus for floating solar farms or flood-prone sites.
- Fire Safety: H1Z2Z2-K undergoes stricter testing for smoke density (LSZH – Low Smoke Zero Halogen) and flame propagation compared to the older PV1-F.
If you are exploring what are the types of solar cables available on the market today, you will notice that H1Z2Z2-K is rapidly becoming the default for new projects.
Quick Comparison: Key Features Side by Side
| Feature | PV1-F (Legacy) | H1Z2Z2-K (Modern) |
| Standard | TÜV 2 PfG 1169 | EN 50618 |
| Nominal Voltage (AC) | U0/U = 0.6/1 kV | U0/U = 1.0/1.0 kV |
| Nominal Voltage (DC) | 900V (Conductor-Earth) | 1500V (Conductor-Earth) |
| Max Permitted DC | 1.8 kV | 1.8 kV |
| Life Expectancy | 25 Years | 25 Years (Verified by Arrhenius plot) |
| Water Resistance | Generally AD7 | AD7 or AD8 (Permanent Submersion) |
| Flame Retardancy | IEC 60332-1-2 | IEC 60332-1-2 (Stricter smoke tests) |
| Conductor | Tinned Copper (Class 5) | Tinned Copper (Class 5) |
| Cross-Linking | E-Beam or Chemical | E-Beam or Chemical |
The “Hidden” Difference: While the table looks similar, the chemical formulation of the insulation in H1Z2Z2-K is often more robust. Manufacturers had to tweak their cross-linking recipes to meet the EN 50618 thermal endurance tests. This ensures that the solar photovoltaic PV wire maintains its dielectric strength even after decades of exposure to harsh UV radiation.
Choosing the Right Cable for Your Project
So, which cable should you actually use?
When to use PV1-F:
- Maintenance & Repair: If you are repairing an old system built in 2010 that used PV1-F, it is acceptable to use it for continuity, provided the connectors are compatible.
- Small, Low-Voltage Systems: For a small 12V or 24V off-grid cabin setup, PV1-F is more than sufficient, though finding new stock is becoming harder as manufacturers phase it out.
When to use H1Z2Z2-K:
- New Installations: Almost every new grid-tied residential or commercial project should use H1Z2Z2-K to ensure compliance with modern electrical codes (NEC in the US uses UL 4703 PV Wire, but IEC regions use H1Z2Z2-K).
- 1500V Systems: Mandatory. Do not use PV1-F on 1500V utility strings.
- Public Buildings: Due to the Low Smoke Zero Halogen (LSZH) properties, H1Z2Z2-K is safer for installations on schools, hospitals, or public infrastructure.
But before you make your final decision, it’s worth pausing to consider product quality—because not all solar cables are created equal.
For example, you might be tempted to cut costs by using standard building wire like THHN. This is a critical mistake. Standard nylon-coated wires simply can’t withstand the UV rays or moisture that solar-specific cables are engineered to resist. (For more on this, see our comparison: PV wire vs THHN wire.)
Even among cables labeled as “solar,” quality can vary widely. In my years of auditing factories, I have seen “solar cables” that were simply dipped in black dye and labeled as UV resistant. These fade and crack within three years. Authentic H1Z2Z2-K uses a tinned copper conductor to prevent oxidation (the “green death” of copper) and a double-layer insulation system that is chemically cross-linked.
When sourcing cable, traceability is key. You need to know the pedigree of the manufacturer. We have compiled a list of the industry’s most trusted players in our article on leading 7 solar cable manufacturers worldwide. Sourcing from these vetted suppliers ensures that the cable you bury in the ground today won’t become a ground-fault nightmare tomorrow.
Frequently Asked Questions (FAQ)
Q: Can I connect PV1-F cable to H1Z2Z2-K cable?
A: Electrically, yes, provided they are the same gauge (cross-section). However, you must ensure that the system voltage does not exceed the lower rating of the PV1-F cable. Also, be wary of mixing connector brands, which is a leading cause of arc faults.
Q: Is H1Z2Z2-K suitable for direct burial?
A: Generally, yes. Most H1Z2Z2-K cables are designed for direct burial, but you must check the specific datasheet of the manufacturer. Look for the “AD8” water resistance rating if the soil is waterlogged.
Q: Why is the conductor tinned?
A: Solar cables operate outdoors where humidity and temperature fluctuations are extreme. Tinned copper prevents oxidation at the termination points. Bare copper will oxidize over time, increasing resistance and creating hot spots that can melt connectors.
