Choosing a multi conductor electric cable should start with the job it has to do, not with the catalog photo or the lowest price. In real industrial projects, one cable may carry a clean control signal through a panel, another may sit next to a VFD in a noisy machine cabinet, and another may provide light power plus feedback circuits in one compact route. The cable may look similar from the outside, but the construction requirements are not the same.
A well-specified multi conductor cable makes installation cleaner, reduces wiring confusion, and keeps related circuits together. A poorly specified one may still “work” at first, but later show nuisance trips, unstable signal readings, broken strands at terminations, or insulation failures that are expensive to diagnose.
What is Multi Conductor Cable?
The multi conductor cable definition is that a multi conductor cable contains two or more individually insulated conductors under one overall sheath. Depending on the design, it may be used for power, control, instrumentation, or signal transmission. Grouping them into one cable improves routing discipline, shortens installation time, and makes panel and field wiring easier to inspect. We had wrote about multi-Pair Cable. Multi-Conductor vs Multi-Pair Cable: The Differences in Structure and Application will help solve your problem.
Main Parts of a Multi Conductor Cable
A multi-conductor cable consists of multiple functional components. Each part including conductors, insulation, core identification, shielding and outer sheath serves a specific role, collectively ensuring stable electrical performance and mechanical protection in practical wiring applications.
Conductors
Copper remains the most common conductor material because it balances conductivity, flexibility, and reliable termination. Depending on the application, the conductor may be solid, stranded, or fine-stranded. For control cabinets, machine wiring, and equipment interconnects, stranded or flexible conductors are often preferred because they tolerate routing and termination better than rigid solid conductors.
Core Insulation
Each core needs its own insulation to prevent contact with adjacent conductors. Common materials include PVC, PE, XLPE, rubber compounds, and LSZH materials. The right insulation depends on temperature, flexibility, flame behavior, and environment.
Core Identification
In European low-frequency data and control constructions, DIN 47100 color coding is widely used; LAPP and HELUKABEL product references explicitly show DIN 47100 as the core color code on such products. In many North American control and instrumentation products, ICEA/NEMA-based color charts or black-and-white numbered systems are common instead of one universal color sequence.
Shielding
Shielding becomes important when the cable must protect low-level or sensitive circuits from electrical noise. The shield may be foil, braid, or a combined design. The right shielding method depends on the interference profile and the cable’s mechanical demands.
Outer Sheath
The sheath protects the cable from handling damage and service conditions such as abrasion, oil, moisture, or sunlight.
What are multi cables are used for?
By bundling multiple insulated conductors into a single outer sheath, these cables solve core wiring challenges across industrial and commercial systems—from space constraints and noise interference to installation efficiency—making them essential for control, automation, instrumentation, and combined circuit applications.
In Control Panels
Inside a control panel, grouped conductors reduce clutter and make routing more orderly. This matters when installers must separate power, relay logic, sensor inputs, and communication wiring in a limited space.
In Machinery and Automation Equipment
On automated equipment, the challenge is often electrical noise plus repeated handling during installation and maintenance. A cable routed near drives, contactors, or switching devices may need shielding even if the nominal voltage is low. If the wiring space is tight, bending radius and conductor stranding become as important as conductor size.
In Instrumentation and Low-Level Signals
For analog signals, feedback loops, or encoder wiring, capacitance and shielding are not secondary parameters. Higher capacitance can affect signal behavior over longer runs, and insufficient shielding can lead to unstable measurements or erratic communication.
In Combined Power and Auxiliary
Some projects use one multi conductor cable to combine light power, control, or auxiliary circuits into a single route. This helps simplify installation, but it also means grouping effects, thermal buildup, and conductor identification become more important.
For more complex systems, especially higher voltage installations, selection becomes more critical. You can explore deeper engineering considerations in our medium voltage cable guide.

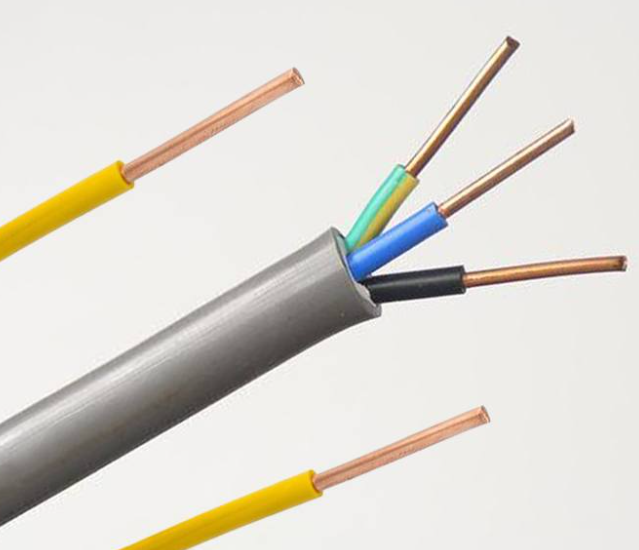

Single Core vs. Multi Conductor Cable
Choosing between single-core and multi-conductor cables depends on project-specific needs, as each offers unique benefits for installation and performance.
Single-core cable gives the installer more freedom to route each conductor separately. That can help in high-current or thermally sensitive layouts where spacing matters.
Multi– conductor cable is stronger where routing discipline, compactness, and grouped installation efficiency are the priority. It is typically the better fit for:
- machine interconnections
- control and auxiliary circuits
- instrumentation loops
- grouped low-voltage power runs
- internal equipment wiring
The right choice is not “which cable is better,” but “which cable fits the actual circuit and installation method better.”

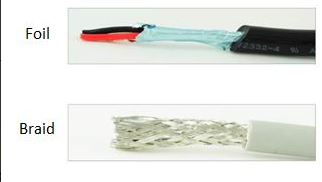

Foil Shield vs. Braid Shield: What Actually Matters?
Different shielding structures differ greatly in shielding performance and mechanical strength. This section compares foil, braided and combined shielding for practical application selection.
Foil Shield
Foil shielding usually delivers very high coverage, often effectively full coverage around the core group when properly applied. Belden product data commonly lists tape shield coverage as 100% on many instrumentation and control cable constructions. This is one reason foil shields are effective against high-frequency interference and electrostatic coupling.
Foil shield is often the practical choice when:
- the cable carries analog or low-level signal circuits
- the installation faces high-frequency noise
- compact diameter matters
- flex life is not the primary concern

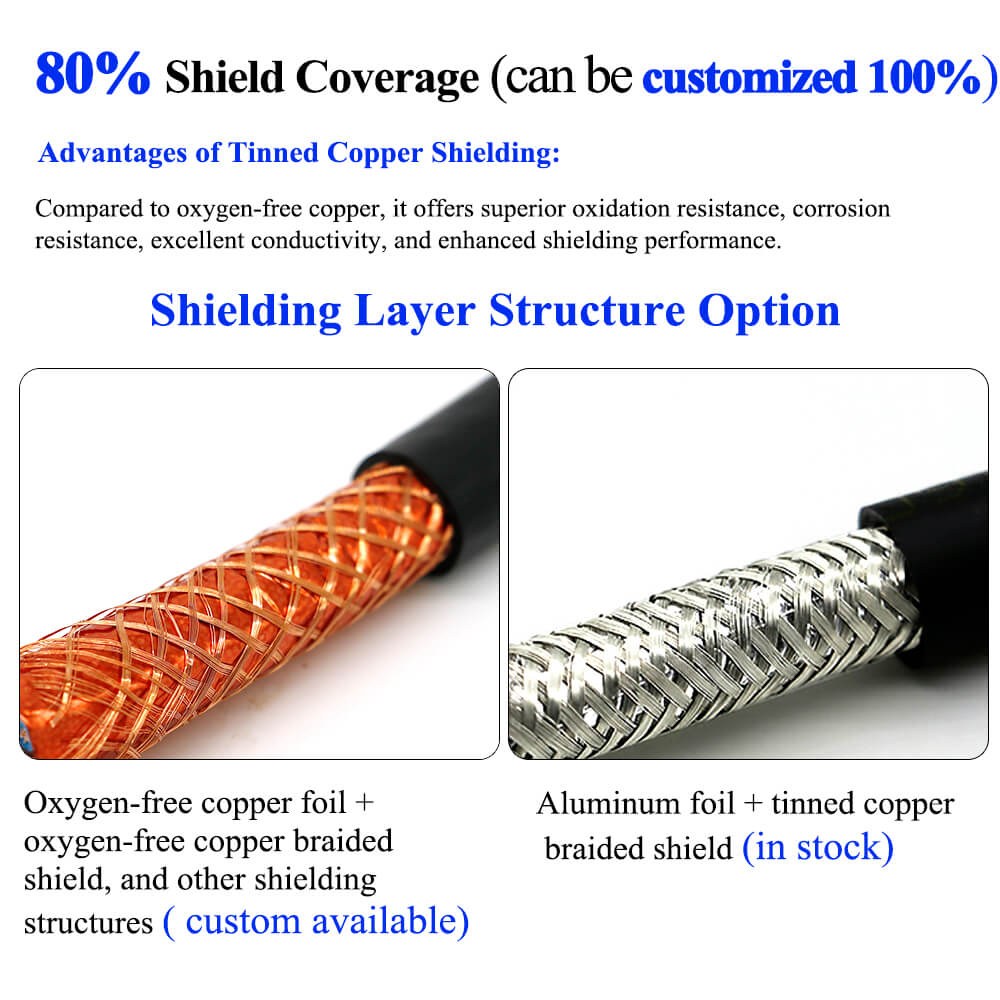

Braid Shield
Braided copper shielding offers mechanical robustness and better survivability when the cable sees more handling or movement. The copper braid coverage of ZW product is typically 80%,while other manufacturers often use only around 40% coverage to reduce costs. Although such products have a lower price point, their shielding quality cannot be guaranteed.In general, higher braid coverage improves shielding effectiveness, but braid is still a compromise between EMI performance, flexibility, and manufacturability.
Braid shield is often preferred when:
- the cable sees more movement or repeated handling
- mechanical durability matters
- lower-frequency interference or general industrial noise is a concern
- better grounding robustness is desired
Engineering Insight: Foil shielding provides full coverage for sensitive signals, while braid shielding offers mechanical strength and better low-frequency performance.
Learn more about shielding and control applications in our control cable guide.
Combined Foil + Braid
A combined shield is often used when the application demands both strong coverage and mechanical durability. Public Alpha Wire data shows foil-plus-braid constructions with defined overlap and braid coverage in real product specifications.
Why Shield Coverage Matters
Shield coverage affects how much of the cable circumference is actually protected, especially for multi conductor shielded cable. In general, better coverage improves the cable’s ability to block or drain unwanted noise, which helps protect signal integrity. But shielding is not only about the material. Grounding, routing, drain wire termination, and separation from noisy power circuits still matter.
Color Coding and Core Identification:
We have compiled the wire specifications, markings and codes in a detailed table for easy reference.
| System / Market | Typical Use | Practical Note |
|---|---|---|
| DIN 47100 | European data and control cables | Common on many multi-core data/control products; useful for multi-core identification without repetition on many conductor counts. |
| IEC power color practice | 3-phase and protective conductors | 3-phase and protective conductors |
| ICEA/NEMA-based charts | North American control / instrumentation | Often implemented as black-and-white numbered pairs or ICEA chart references rather than one universal consumer-facing color set. |
| Printed numbered cores | High core counts | Often the clearest method for panel work, service, and troubleshooting. |
Gauge Is Not Enough: The Parameters Actually Need
Wire gauge alone cannot fully determine cable performance. Many practical factors including electrical properties, installation conditions and structural design also greatly influence cable suitability, which covers the key parameters explained below. Therefore, we provide customers with detailed technical support and specifications before confirming an order.
Conductor Size
Conductor size still matters because it affects current capacity, voltage drop, and thermal rise. But in a cable multi conductor cable, grouped loaded conductors can create extra heat, so the same nominal size may behave differently from a separated single-core installation.
Capacitance
Capacitance is especially important for signal transmission. For control, instrumentation, and data circuits, capacitance can affect signal quality and transmission performance over distance. That is why low-capacitance constructions are often preferred in sensitive signal applications.
Bending Radius
Bending radius should be specified differently for fixed installation and moving installation. Igus explains that fixed bend radius refers to a cable bent once during installation, while flexible or moving applications require different bend considerations; product datasheets may give separate fixed and flex values. Public cable literature also shows concrete examples such as 5x static and 8x flexing, or 3x fixed and 5x flexing, depending on the cable design.
Conductor Class
Multi core cables typically use Class 2 or Class 5 conductors for easier installation and routing. For power applications, you may also refer to our battery cable sizing guide.
Shield Type and Drain Wire
On shielded designs, buyers should confirm not only “shielded or not,” but also:
- foil, braid, or foil + braid
- nominal coverage
- drain wire presence
- pair shield, overall shield, or both
What UL 2464 Means in Practice？
Public Alpha Wire specifications show many multi conductor/control-style products marked as UL AWM Style 2464, 80°C, 300 V, often together with additional flame or cable type markings such as CM and VW-1 on the overall construction.
A cable built to UL 2464-type requirements is commonly associated with:
- 300 V class internal/control-style wiring
- 80°C temperature rating at the AWM style level
- defined insulation and jacket construction requirements
- flame-performance references that may appear alongside other markings, depending on the total cable design
Where Can You Buy Custom Length Multi Core Cable?
There are three main sourcing options in the market:
- Distributors: Suitable for small quantities, but limited in customization
- Trading companies: Offer flexibility, but technical support may vary
- Direct manufacturers: Best choice for bulk orders and project-specific customization
For B2B buyers, working directly with a manufacturer is typically the most reliable approach—especially when the project involves specific conductor classes, shielding designs, or compliance requirements.
Also Read: Top 10 High Voltage Cable Suppliers Worldwide
Why Choose ZW Cable for Custom Multi Core Cable?
At ZW Cable, we work closely with engineers, OEMs, and contractors to deliver cables that match real application conditions—not just standard catalog specifications.
1. Full Customization Capability
We support customization across key parameters:
- Number of cores and conductor size (AWG / mm²)
- Conductor type
- Shielding design
- Insulation and sheath materials
- Armoring options (SWA Or STA)
- Exact cable length and packaging format (drum, coil)
This ensures the cable fits your installation environment, rather than forcing your system to adapt to a standard product.
2. Compliance with International Standards
All cables can be produced in accordance with IEC, UL, BS, or project-specific standards. Test reports such as insulation resistance, voltage withstand, and flame performance are available upon request.
3. Stable Quality for Industrial Use
We use high-purity copper conductors and controlled manufacturing processes to ensure consistent electrical performance and long-term reliability, even in demanding environments.
4. Engineering Support, Not Just Sales
Our team supports you in selecting the correct cable structure based on:
- Load requirements and ampacity
- Installation conditions (tray, conduit, movement)
- EMI environment (need for shielding)
- Temperature and environmental exposure
This reduces the risk of underspecification or overdesign—both of which increase project cost.
5. Reliable Export and Delivery
With experience in global supply, we provide stable lead times, export packaging, and documentation support for international projects.If your project requires consistent quality, technical clarity, and flexible customization, working directly with a manufacturer like ZW Cable is the most efficient and reliable choice.
FAQ
Q:How do I know whether a foil shield or a braid shield is better for my project?
A: A foil shield is usually the better choice when you need high coverage and strong protection against high-frequency noise in signal or control circuits. Braid shield is often the better fit when the cable also needs better mechanical durability or sees more movement and handling.
Q:What are the recommendations for multi-conductor cables containing wires of different sizes?
A: For multi-conductor cables that contain different wire sizes, the best practice is to use them only when the smaller and larger conductors serve clearly different functions, ensure every conductor is sized for its actual load and voltage-drop requirement, keep insulation ratings compatible, and avoid combining significantly different sizes in one pull or assembly unless the design specifically requires it, since mixed sizes can complicate installation and performance.
Q: What is the most common purchasing mistake with multi-conductor cable?
A: Choosing only by core count and conductor size. In real applications, shielding, capacitance, bending radius, identification method, and test control often determine whether the cable performs well.
Q:Can I mix power and signal cores in one multi conductor cable?
A: It is technically possible, but generally not recommended unless proper shielding and separation are designed. Power cores can introduce interference into signal cores, especially in sensitive control or data systems. In critical applications, separate cables or shielded designs should be used.
