Single Core NA2XS(F)2Y Aluminium Power Cable
- According to IEC 60502-2, DIN VDE 0276 part 620
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
5

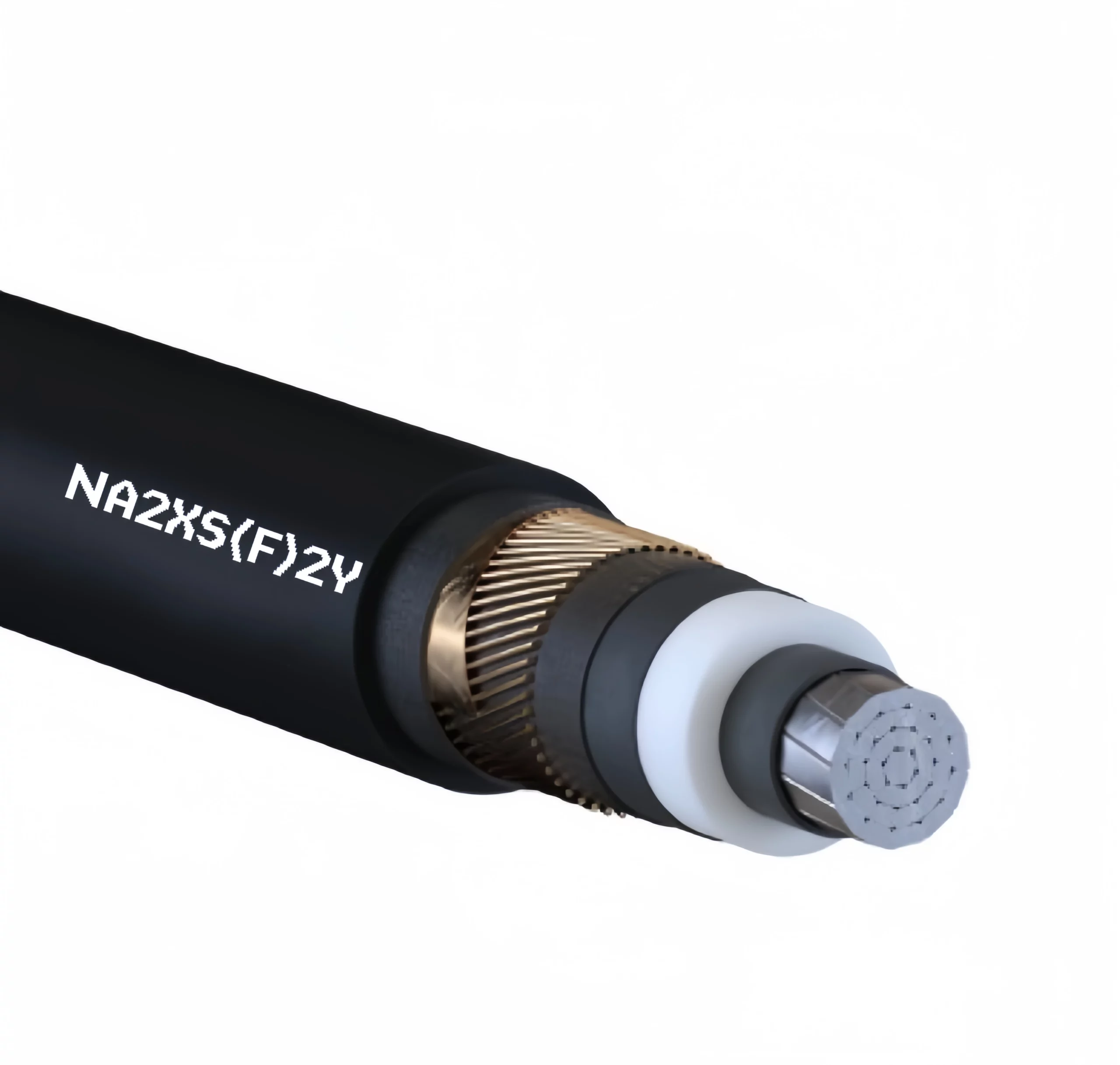

NA2XS(F)2Y cable is a single-core aluminum high-performance cable designed for medium-voltage power transmission. It is constructed to a high standard with XLPE insulation, steel tape armor and PE jacket. NA2XS(F)2Y electrical cable is certified to various international standards (including ISO 9001, OHSAS 18001 and CCC) to meet stringent quality and safety requirements.
Product Features
- Longitudinally watertight
- High mechanical stress and strength armor
- Available in 6/10kV, 12/20kV and 18/30kV voltage classes.
Application
Indoor installation: Installation inside buildings, including electrical rooms and cable ducts.
Outdoor Laying: NA2XS(F)2Y cables can adapt to various outdoor environments. For example, directly buried, placed in cable trenches, or through underground pipes underwater in wet environments.
Industrial and Power Networks: Fixed installation in cable trays in industrial facilities, power stations and power distribution networks.

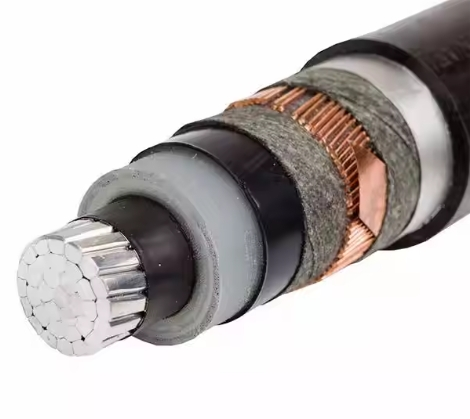

Construction
- Class 2 Stranded Aluminium
- Inner conductive layer
- Core insulation: Cross-linked Polyethylene (XLPE)
- Outer conductive layer
- Longitudinally water-tight wrapping
- Copper wire screen with one or two counter-spiral copper bonds
- Metal tape securely attached to the PE sheath
- Outer sheath: Rigid PE (polyethylene)
- sheath color: Black
NA2XS(F)2Y Specification
- Temperature range: -20°C to +70°C
- Permissible operating temperature of the conductor:+90°C
- Permissible short circuit temperature at the conductor:+250°C (Short circuit duration max. 5 s)
- Minimum bending radius: 15x
12/20 (24) kV NA2XS(F)2Y Datasheet
| Number of cores and nominal cross section (mm²) |
Alu index (kg/km) | Overall diameter appr. (mm) |
Cable weight appr.
(kg/km) |
| 1 x 50 RM/16 | 145 | 29 | 768 |
| 1 x 70 RM/16 | 203 | 31 | 868 |
| 1 x 95 RM/16 | 276 | 32 | 975 |
| 1 x 120 RM/16 | 348 | 34 | 1079 |
| 1 x 150 RM/25 | 435 | 35 | 1268 |
| 1 x 185 RM/25 | 537 | 37 | 1413 |
| 1 x 240 RM/25 | 696 | 39 | 1626 |
| 1 x 300 RM/25 | 870 | 41 | 1845 |
| 1 x 400 RM/35 | 1160 | 44 | 2226 |
| 1 x 500 RM/35 | 1450 | 47 | 2599 |
