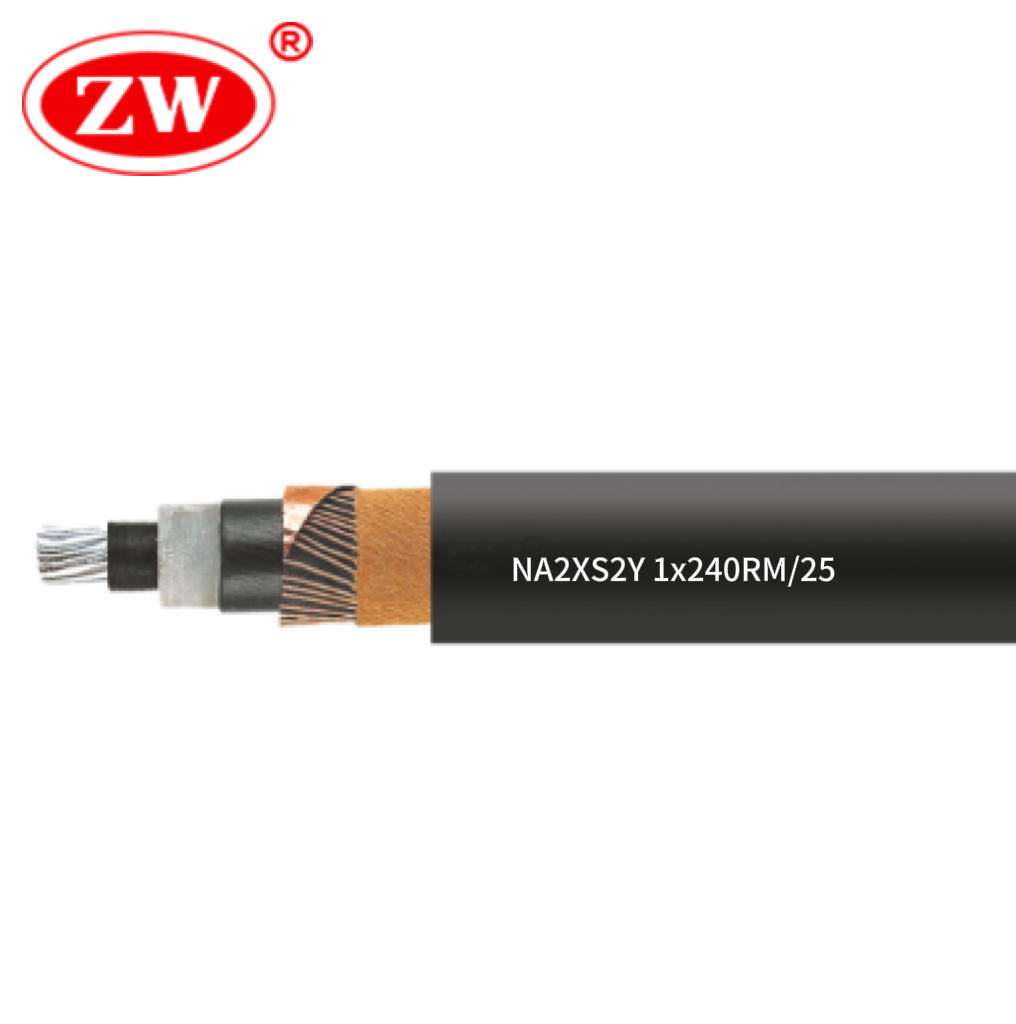

Medium Voltage Cable NA2XS2Y 1X240 rm/25 mm²
- According to IEC 60502-2, DIN VDE 0276 part 620
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
5
The NA2XS2Y 1×240 cable is a single-core medium voltage cable. It features XLPE insulation with excellent electrical properties, a copper wire shield for effective electromagnetic shielding and a PE jacket that guarantees increased mechanical resistance during and after laying. 240 mm² aluminum core permits the efficient transmission of large electrical loads, which is perfect for heavy-duty applications. 12/20KV NA2XS2Y MV cables are particularly suitable for environments requiring high power capacity, durability and resistance to the external factors such as industrial plants, power distribution networks and outdoor infrastructure. The rugged construction suits a variety of installation environments including above ground, inside and outside facilities, outdoors, cable channels, dry areas or under water.

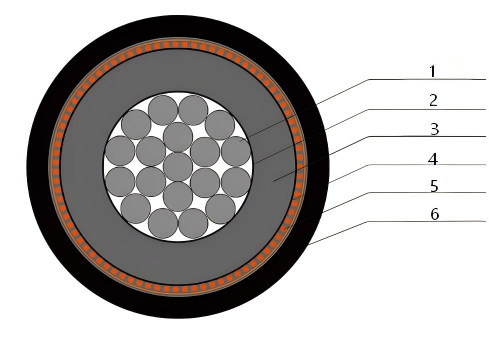

Construction:
- Class 2 Stranded Aluminium
- Inner conductive layer
- Core insulation: Cross-linked Polyethylene (XLPE)
- Outer conductive layer
- Copper wire screen
- Copper counter helix
- Separation tape
- Outer sheath: Rigid PE (polyethylene)
- sheath colour: Black
NA2XS2Y 1×240 RM/25 Specification
- Temperature range: -20°C to +70°C
- Permissible operating temperature of the conductor: +90°C
- Max. temperature during short circuit (≤5S): 250°C
- Minimum bending radius: 15x
- Overall diameter appr. (mm): 39
- Alu index (kg/km): 696
- Cu index (kg/km): 283
- Cable weight appr. (kg/km): 1625
- Current capacity in air (30 °C) : 496A
- Current capacity in ground (20 °C) : 417A
