NA2XS NA2XS(F)2Y NA2XS(FL)2Y

According to IEC 60502-2, DIN VDE 0276 part 620
Approved by ISO,CCC, CE
Place of Origin: Henan, China
HS Code: 8544492100
MOQ: 500 Meters

8~100 $ / Meter

5

NA2XS cables are a durable and efficient range of medium voltage cables. Designed for both indoor and outdoor use, NA2XS cables can be installed in the ground, in water, outdoors, indoors and in cable ducts. They are suitable for use in power stations, industrial environments and distribution networks and can withstand the rigors of outdoor fixed installations and underground burial.

Main Product feature

Special types such as NA2XS(F)2Y /NA2XS(FL)2Y have an additional waterproof function. They are used more often in installations where moisture resistance is required.
It complies with international standards such as DIN VDE, HD 620 S1 and IEC 60502 as well as the RoHS and Reach environmental directives.
Built-in copper wire and reverse-wound copper tape shielding effectively reduce electromagnetic interference.

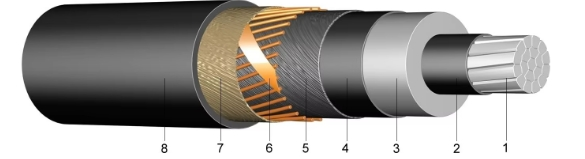

NA2XS Cable Construction

1.Conductor: Aluminum conductor
2.Conductor screen: Inner semi-conducting layer
3.Insulation: XLPE insulation
4.Insulation screen: Outer semi-conducting layer
5. Tape: Conductive tape
6.Metallic shield: Copper wire screen and copper tape
7.Water blocking: Water-blocking tape
8. Outer sheath: PE outer sheath

NA2XS Cable Specification

Temperature range: -20°C to +70°C
Permissible operating temperature of the conductor:+90°C
Permissible short circuit temperature at the conductor:+250°C (Short circuit duration max. 5 s)
Minimum bending radius: 15x

12/20kv NA2XS Cable Datasheet

Number of cores and nominal cross section(mm²)	Overall diameter appr. (mm)	Conductor diameter	Conductor DC resistance at 20°C
1 x 50RM/16	33	8.6	0.641
1 x 70RM/16	35	10.2	0.443
1 x 95RM/16	36	12.0	0.32
1 x 120RM/16	38	13,5	0.253
1 x 150RM/16	39	15.0	0.206
1 x 150RM/25	39	15.0	0.206
1 x 185RM/16	41	16.8	0.164
1 x 185RM/25	41	16.8	0.164
1 x 240RM/16	44	19.2	0.125
1 x 240RM/25	44	19.2	0.125
1 x 300RM/25	46	21.6	0.1
1 x 400RM/35	49	24.6	0.0778
