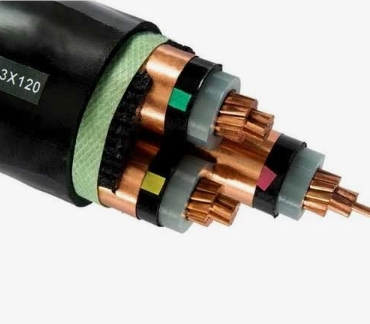

1/3 Core N2XSRY XLPE Insulation Cable



  • According to DIN VDE 0276, IEC 60502
  • Approved by ISO,CCC, CE
  • Place of Origin: Henan, China
  • Number of Cores: 1 or 3
  • HS Code: 8544492100
  • MOQ: 500 Meters
8~90 $ / Meter

5

N2XSRY cable is a versatile medium voltage electrical cable. It has cross-linked polyethylene insulated, steel tape armored, and PVC sheathed. N2XSRY power cable has excellent voltage resistance and is capable of stable operation in high voltage environments; the steel tape armoring provides excellent tensile strength and mechanical damage resistance which allows it able to be deployed in heavy duty laying environments; and its PVC sheathing offers good chemical retardant properties and environmental tolerance.

Application

N2XSRY cables are widely used in the backbone of power systems, for example, internal power distribution in an industrial plant, power transmission of large commercial buildings, systems that are laid underground and outdoor applications where a high level of mechanical stability and protection is necessary.

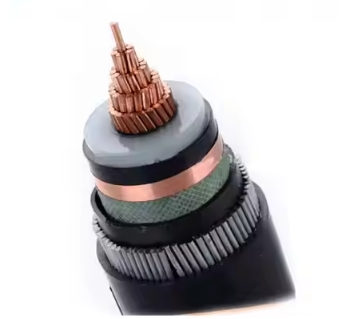

Construction

  • Conductor: Circular compacted copper, class 2
  • Conductor Screen: Semi-conducting, non-metallic compound
  • Insulation: XLPE (Cross-Linked Polyethylene)
  • Insulation Screen: Semi-conducting, non-metallic compound
  • Metallic Screen: Copper tape or copper wire
  • Inner Sheath: PVC (Polyvinyl Chloride)
  • Armour: Steel tape
  • Outer Sheath: PVC (Polyvinyl Chloride)
  • Colour: Red or Black

N2XSRY Specification

  • Maximum Conductor Temperature: under normal (90℃), emergency (130℃)
  • Permissible short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)
  • Minimum bending radius: 15x (single core) / 12x (multi core)

N2XSRY Cable Datasheet

Nominal Cross-Sectional Area       mm2 Strands No./Dia. Of Conductor Insulation
Thicknessmm
Sheath
Thicknessmm
Overall Cable Diameter (approx)
mm
Weight
(approx.)kg/km
1 × 25 7/2.18 4.5 1.8 22.6 689.4
1 x 35 7/2.58 4.5 1.8 23.6 807.5
1 x 50 10/2.58 4.5 1.8 25 972.8
1 x 70 19/2.18 4.5 1.8 26.6 1193
1 x 95 19/2.58 4.5 1.8 28.2 1473
1 x 120 24/2.58 4.5 1.9 29.8 1747.8
1 x 150 30/2.58 4.5 1.9 31.4 2059.6
1 x 185 37/2.58 4.5 2 33.2 2430
1 x240 48/2.58 4.5 2.1 35.7 2998.8
1 x300 60/2.58 4.5 2.1 37.8 3589.6
1 x400 61/2.94 4.5 2.2 41.2 4529.9
1 x500 61/3.28 4.5 2.3 44.2 5566.6
3×25 7/2.18 4.5 2.4 44.8 2251.6
3×35 7/2.58 4.5 2.5 47.2 2655.9
3×50 10/2.58 4.5 2.6 50.4 3217.3
3×70 19/2.18 4.5 2.7 54 3957.2
3×95 19/2.58 4.5 2.8 57.7 4884.7
3×120 24/2.58 4.5 2.9 60.9 5754.2
3×150 30/2.58 4.5 3 64.5 6788
3×185 37/2.58 4.5 3.1 68.2 7961.6
3×240 48/2.58 4.5 3.3 73.5 9801.3
3×300 60/2.58 4.5 3.4 78.3 11725.3
3×400 61/2.94 4.5 3.7 85.8 14799.2
