6/10 12/20 18/30 kV N2XSH Single Core Cable
- According to DIN VDE 0276-622, HD 622 S1
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
5
N2XSH cable is a Low Smoke Zero Halogen (LSZH) medium voltage power cable designed for use in power transmission systems at voltage levels of 6/10kV, 12/20kV, and 18/30kV. The construction of N2XSH cable typically includes a fire resistant copper conductor which ensures good electrical properties. As well as an outer jacket that is resistant to UV rays, which makes it suitable for long-term exposure. The inner semiconductor coating and outer semiconductor coating with conductive wrapping effectively keep uniform distribution of the electric field and improve the overall performance of the cable. In addition, its good installation properties are such that it can be laid even under complicated wiring conditions.
Application:
N2XSH cables are used in a wide range of applications, including indoor wiring, cable pathways, and installation on cable trays, serving industrial systems, distribution boards, and power stations. However, for direct installations buried in the ground, there are specific types or additional protection may need to be considered.

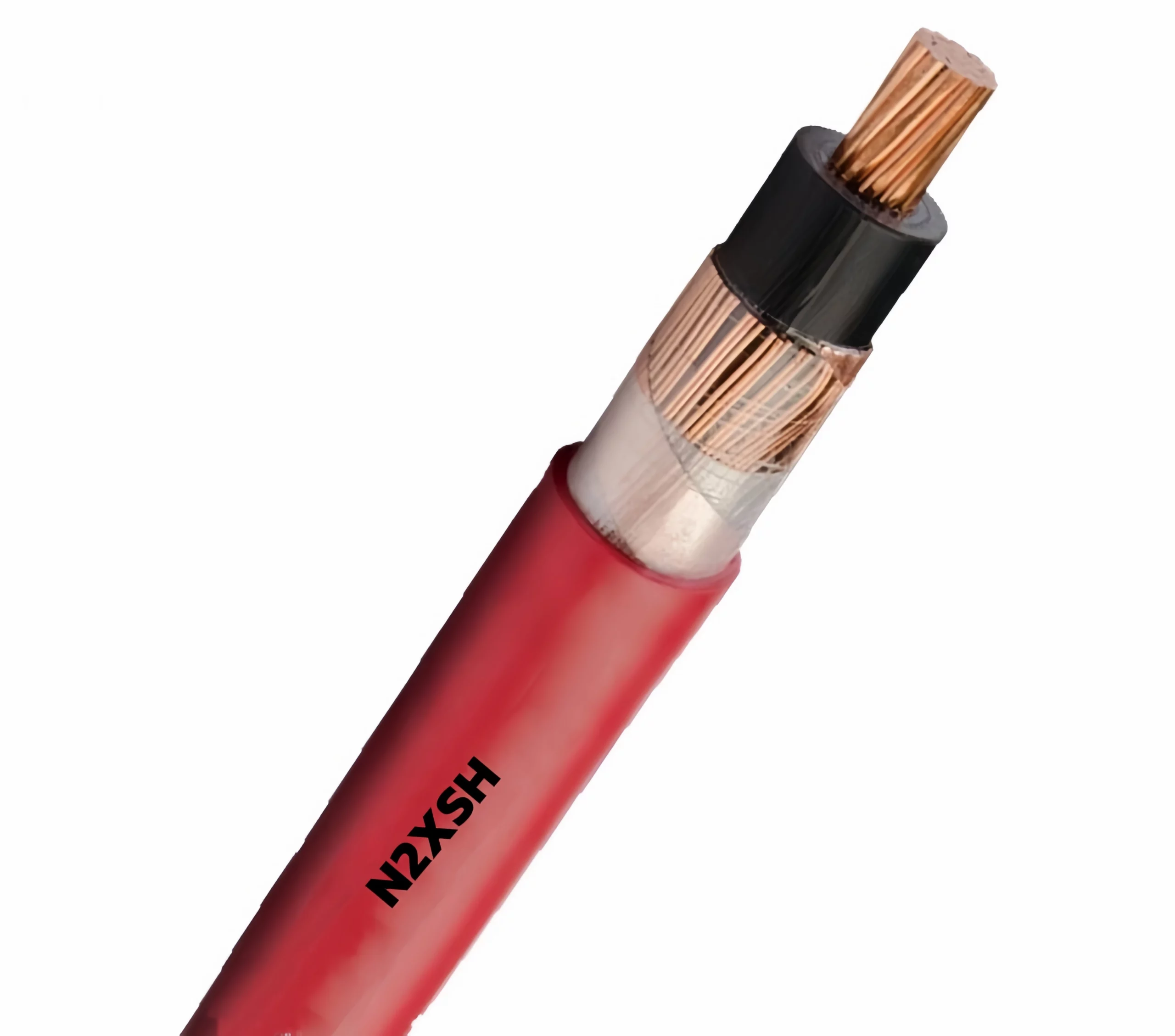

Construction:
- Conductor: Class 2 stranded copper
- Inner Layer: Semi-conductive material
- Insulation: XLPE (Cross-Linked Polyethylene)
- Outer Layer: Semi-conductive material
- Screen: Copper wires and copper tape
- Sheath: Low Smoke Zero Halogen (LSZH)
- Sheath Colour: Red or black
N2XSH Cable Specification
- Temperature Rating : -5℃ to +70℃
- Max operating temperature: 90℃
- Max short circuit temperature: 250°C (Short circuit duration max. 5 s)
- Min. Bending radius: 15x
N2XSH Cable Parameters
| Nominal cross-sectional area mm2 | Nominal overall diameter (approx) mm |
Cu Factor | Cable Weight (approx) kg/km |
Conductor DC Resistance at 20℃ ohm/km | Current carrying capacity
(A) |
|
| N2XSH- 6/10kV | In Ground In Air | |||||
| 1×35/16 | 23 | 518 | 900 | 0.524 | 211 | 237 |
| 1×50/16 | 24 | 662 | 1040 | 0.387 | 249 | 277 |
| 1×70/16 | 25 | 854 | 1260 | 0.268 | 303 | 345 |
| 1×95/16 | 26 | 1094 | 1540 | 0.193 | 358 | 418 |
| 1×120/16 | 27 | 1334 | 1790 | 0.153 | 404 | 481 |
| 1×150/25 | 29 | 1723 | 2160 | 0.124 | 441 | 537 |
| 1×185/25 | 30 | 2059 | 2530 | 0.0991 | 493 | 612 |
| 1×240/25 | 33 | 2587 | 3090 | 0.0754 | 563 | 716 |
| 1×300/25 | 36 | 3163 | 3680 | 0.0601 | 626 | 811 |
| 1×400/35 | 39 | 4234 | 4650 | 0.0470 | 676 | 901 |
| N2XSH- 12/20kV | ||||||
| 1×35/16 | 27 | 518 | 1060 | 0.524 | 213 | 233 |
| 1×50/16 | 28 | 662 | 1210 | 0.367 | 250 | 279 |
| 1×70/16 | 30 | 854 | 1450 | 0.268 | 304 | 347 |
| 1×95/16 | 32 | 1094 | 1740 | 0.193 | 361 | 420 |
| 1×120/16 | 33 | 1334 | 2000 | 0.153 | 407 | 483 |
| 1×150/25 | 35 | 1723 | 2370 | 0.124 | 445 | 540 |
| 1×185/25 | 36 | 2059 | 2750 | 0.099 | 498 | 614 |
| 1×240/25 | 38 | 2587 | 3330 | 0.0754 | 569 | 718 |
| 1×300/25 | 41 | 3163 | 3920 | 0.0601 | 633 | 813 |
| 1×400/35 | 43 | 4234 | 4920 | 0.0470 | 686 | 904 |
| N2XSH-18/30kV | ||||||
| 1×50/16 | 32 | 662 | 1450 | 0.387 | 251 | 279 |
| 1×70/16 | 33 | 854 | 1690 | 0.268 | 306 | 348 |
| 1×95/16 | 35 | 1094 | 2000 | 0.193 | 363 | 421 |
| 1×120/16 | 36 | 1334 | 2270 | 0.153 | 410 | 483 |
| 1×150/25 | 38 | 1723 | 2660 | 0.124 | 449 | 540 |
| 1×185/25 | 40 | 2059 | 3040 | 0.0991 | 503 | 615 |
| 1×240/25 | 43 | 2587 | 3640 | 0.0754 | 576 | 718 |
| 1×300/25 | 45 | 3163 | 4250 | 0.0601 | 641 | 812 |
| 1×400/35 | 48 | 4234 | 5290 | 0.0470 | 697 | 904 |
| 1×500/35 | 51 | 5194 | 6450 | 0.0366 | 768 | 1011 |
