N2XS(F)2Y Watertight Copper Conductor MV Cable
- According to IEC 60502-2, DIN VDE 0276-620
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
8~100 $ / Meter
5
- Product Details
N2XS(F)2Y Cable is a high performance European standard medium voltage power cable. With its excellent waterproof and anti-interference characteristics, it is widely used in underground laying, humid environments, industrial facilities, power networks and wind power generation to be sure of the stability and safety of power transmission.
Product features
- Water-resistant in radial direction
- Flexible and corrosion-resistant jacket material
- High conductivity and low power loss
- Compatible with a wide range of complex environments
- Specification
- Temperature range: -20°C to +70°C
- Permissible operating temperature of the conductor: +90°C
- Permissible short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)
- Minimum bending radius: 15x

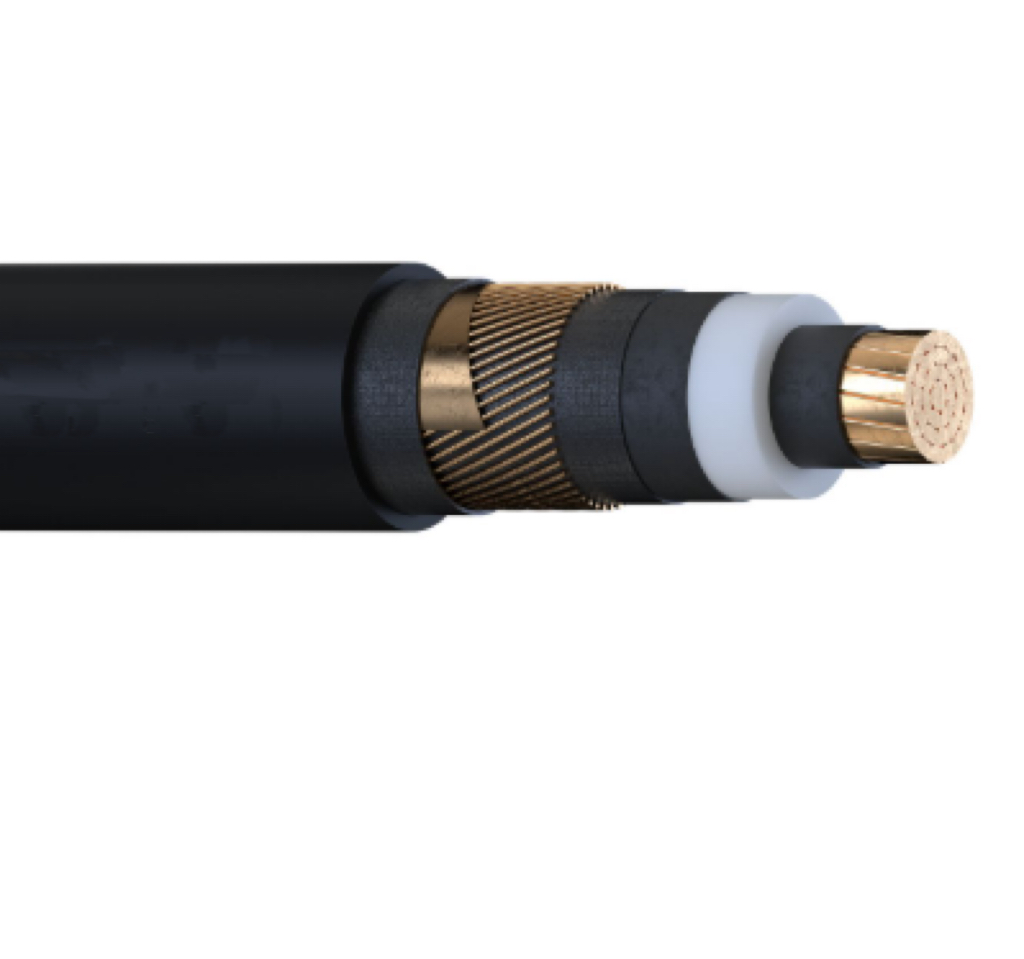

- Construction
- Class 2 stranded copper conductor
- Inner layer of semi-conducting material
- XLPE (Cross-linked Polyethylene) insulation
- Outer layer of semi-conducting material
- copper wire screen
- Swellable tape
- Outer sheath: PE，Black
- Parameter
| Number of cores and nominal cross section(mm²) |
Overall diameter appr. (mm) |
Cu weight
(kg/km) |
Cable weight appr.
(kg/km) |
Current carrying capacity ground A |
Current carrying capacity air A |
| 1 x 50 RM/16 | 33 | 662 | 1400 | 222 | 239 |
| 1 x 70 RM/16 | 34 | 854 | 1550 | 271 | 297 |
| 1 x 95 RM/16 | 36 | 1094 | 1800 | 232 | 361 |
| 1 x 120 RM/16 | 37 | 1334 | 2150 | 367 | 416 |
| 1 x 150 RM/25 | 39 | 1723 | 2400 | 409 | 470 |
| 1 x 185 RM/25 | 41 | 2059 | 2850 | 461 | 538 |
| 1 x 240 RM/25 | 43 | 2587 | 3250 | 532 | 634 |
| 1 x 300 RM/25 | 45 | 3163 | 3850 | 599 | 724 |
| 1 x 400 RM/35 | 48 | 4234 | 4900 | 671 | 829 |
| 1 x 500 RM/35 | 52 | 5194 | 6100 | 750 | 927 |
FAQ
Is the N2XS(F)2Y sheath UV resistant?
Yes. The black Polyethylene (PE) outer sheath contains carbon black, providing excellent resistance to ultraviolet (UV) radiation. It can be installed outdoors exposed to sunlight without degrading.
Is N2XS(F)2Y radially water-blocked?
No. The standard N2XS(F)2Y provides only longitudinal water tightness. If radial water tightness (prevention of moisture diffusion through the sheath) is required, you must specify N2XS(FL)2Y, which includes an aluminum laminate tape bonded to the PE sheath.
What does the "(F)" feature actually do?
The "(F)" signifies longitudinal water blocking. It involves the use of swellable tapes or powders under the outer sheath. If the cable is damaged and water enters, these materials expand immediately upon contact with moisture, sealing the void and preventing water from traveling along the cable length.
