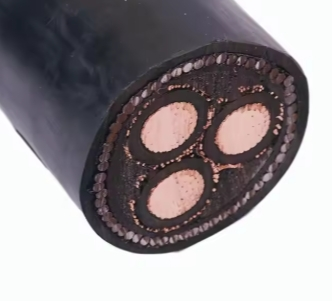

Three Core MV Copper Conductor XLPE Insulated N2XSERY Cable
- According to DIN VDE 0276, IEC 60502
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- Number of Cores: 3
- HS Code: 8544492100
- MOQ: 500 Meters
5

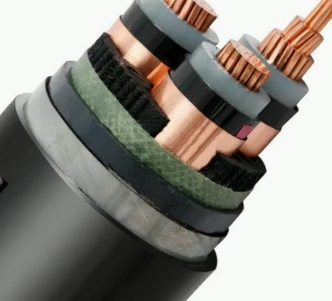

N2XSERY cable is a high performance 3-core medium voltage power cable from 6/10kv to 18/30kv. The electrical cable has excellent voltage resistance and mechanical strength. Its steel tape armor design provides excellent resistance to twisting and external damage while the PVC jacket offers excellent chemical resistance and good flexibility. It can also be customized to meet environmental requirements such as oil resistance and flame retardant ratings.
Application
N2XSERY cables are widely used in urban power grids, industrial plants, power plants, public buildings and outdoor environments where harsh laying conditions are required. It is also particularly suitable for applications requiring high mechanical strength and protection, such as direct burial, tunnel laying and in water.

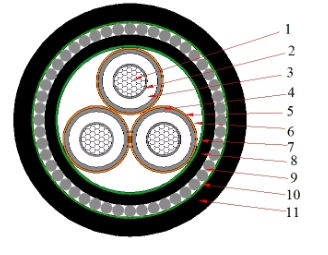

Construction:
1) Conductor: Solid or stranded circular conductors made of Copper, Class 1 or Class 2
2) Conductor Screen: Semi-conducting, non-metallic compound
3) Insulation: XLPE (Cross-linked polyethylene)
4) Insulation Screen: Semi-conducting, non-metallic compound
5) Metallic Screen: Copper tape
6) Filler: Non-hygroscopic material used
7) Binder Tape: Non-hygroscopic material used
8) Inner Covering: PVC (Polyvinyl chloride)
9) Armour: Steel wire armour for protection
10) Binder Tape: Non-hygroscopic material used
11) Outer Sheath: PVC (Polyvinyl chloride)
N2XSERY Specification
- Max short circuit temperature: 250°C (Short circuit duration max. 5 s)
- Permissible operating temperature of the conductor: +90°C
- Min. Bending radius: 15x
- Size: 25mm²~400mm²
N2XSERY Cable Technical Data:
Nominal cross-sectional area (mm²) | Insulation Thickness (mm) |
Sheath Thickness (mm) |
Overall Cable Diameter approx (mm) |
Weight approx. (kg/km) |
Max.DC resistance conductor (20°C) (Ω/km) |
Current carrying capacity | |
N2XSERY – 6/10kV | In Air (A) | In Ground(A) | |||||
3X25
|
3.4
|
2.4
|
48.1
|
4089
|
0.727
|
84
|
95
|
3X35
|
3.4
|
2.5
|
50.5
|
4604
|
0.524
|
102
|
116
|
3X50
|
3.4
|
2.6
|
53.7
|
5288
|
0.387
|
123
|
133
|
3X70
|
3.4
|
2.7
|
57.5
|
6234
|
0.268
|
154
|
168
|
3X95
|
3.4
|
2.9
|
61.6
|
7368
|
0.193
|
186
|
200
|
3X120
|
3.4
|
3
|
65
|
8418
|
0.153
|
214
|
224
|
3X150
|
3.4
|
3.1
|
68.5
|
9515
|
0.124
|
245
|
256
|
3X185
|
3.4
|
3.2
|
72.5
|
11005
|
0.0991
|
277
|
287
|
3X240
|
3.4
|
3.4
|
79.2
|
14048
|
0.0754
|
329
|
336
|
3X300
|
3.4
|
3.6
|
84.5
|
16323
|
0.0601
|
375
|
378
|
3X400
|
3.4
|
3.8
|
91.6
|
19556
|
0.047
|
427
|
427
|
N2XSERY – 8.7/15kV
|
|
|
|||||
3X25
|
4.5
|
2.6
|
54.5
|
4723
|
0.727
|
84
|
95
|
3X35
|
4.5
|
2.7
|
55.8
|
5256
|
0.524
|
102
|
116
|
3X50
|
4.5
|
2.8
|
59
|
5965
|
0.387
|
123
|
133
|
3X70
|
4.5
|
2.9
|
62.9
|
6940
|
0.268
|
154
|
168
|
3X95
|
4.5
|
3
|
66.7
|
8076
|
0.193
|
186
|
200
|
3X120
|
4.5
|
3.1
|
70.2
|
9151
|
0.153
|
214
|
224
|
3X150
|
4.5
|
3.2
|
73.6
|
10273
|
0.124
|
245
|
256
|
3X185
|
4.5
|
4.5
|
79.2
|
12717
|
0.0991
|
277
|
287
|
3X240
|
4.5
|
3.6
|
84.5
|
14927
|
0.0754
|
329
|
336
|
3X300
|
4.5
|
3.7
|
89.7
|
17267
|
0.0601
|
375
|
378
|
3X400
|
4.5
|
4
|
97
|
20531
|
0.047
|
427
|
427
|
N2XSERY – 12/20kV |
|
|
|||||
3X35
|
5.5
|
2.9
|
66.2
|
6136
|
0.524
|
98
|
104
|
3X50
|
5.5
|
3
|
68.7
|
6745
|
0.387
|
114
|
124
|
3X70
|
5.5
|
3.1
|
73
|
7804
|
0.268
|
143
|
153
|
3X95
|
5.5
|
3.2
|
77
|
8971
|
0.193
|
172
|
185
|
3X120
|
5.5
|
3.4
|
82.9
|
11035
|
0.153
|
198
|
208
|
3X150
|
5.5
|
3.5
|
86.2
|
12279
|
0.124
|
228
|
237
|
3X185
|
5.5
|
3.6
|
90.3
|
13845
|
0.0991
|
257
|
267
|
3X240
|
5.5
|
3.8
|
96
|
16140
|
0.0754
|
302
|
309
|
3X300
|
5.5
|
4
|
101.2
|
18657
|
0.0601
|
345
|
348
|
3X400
|
5.5
|
4.2
|
107.8
|
21868
|
0.047
|
400
|
393
|
N2XSERY – 18/30kV
|
|
|
|||||
3X35
|
8
|
3.3
|
81
|
8648
|
0.524
|
172
|
154
|
3X50
|
8
|
3.4
|
83.4
|
9303
|
0.387
|
205
|
181
|
3X70
|
8
|
3.6
|
87.7
|
10483
|
0.268
|
253
|
220
|
3X95
|
8
|
3.7
|
91.7
|
11812
|
0.193
|
307
|
263
|
3X120
|
8
|
3.8
|
94.9
|
12997
|
0.153
|
352
|
298
|
3X150
|
8
|
3.9
|
98.2
|
14291
|
0.124
|
397
|
332
|
3X185
|
8
|
4
|
102.3
|
15915
|
0.0991
|
453
|
374
|
3X240
|
8
|
4.2
|
108
|
18293
|
0.0754
|
529
|
431
|
3X300
|
8
|
4.4
|
113.2
|
20886
|
0.0601
|
599
|
482
|
3X400
|
8
|
4.6
|
119.8
|
24193
|
0.047
|
683
|
