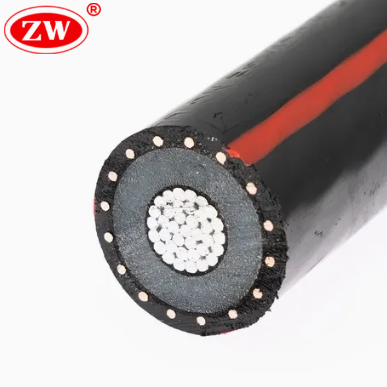

MV-90 Cable

MV-90 cable is a premier single or multi-conductor Medium Voltage (MV) power cable engineered for primary power and distribution circuits rated from 3.6/6kv~26/35kv. This cable is rated for a maximum continuous operating temperature of 90°C in both wet and dry locations. MV-90 cable is constructed with a central stranded copper or aluminum conductor encased in a high-performance thermoset insulation system, such as Ethylene Propylene Rubber (EPR) or Cross-linked Polyethylene (XLPE), which is then protected by a comprehensive shielding system and a durable outer jacket. Its primary applications are in demanding industrial, commercial, and utility settings, with versatile installation methods including placement in conduits, underground ducts, aerial applications, or through direct burial.

Product features

• The insulation material features high dielectric strength, thermal stability, and resistance to electrical treeing (insulation degradation).
• The cable outer sheath exhibits resistance to sunlight, oil contamination, and extreme temperatures.
• Cable installation is straightforward, allowing for easy laying even along complex routes.
• Standard:
  – ANSII ICEA S94-649- AEIC CS-8- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231- UL1072

Cable Construction

1. Conductors: Bare, annealed copper or aluminum compact conductor
2. Internal Semiconductor: Thermosetting material
3. Insulation: XLPE/EPR through triple layer extrusion process
4. External Semiconductor: Thermosetting material
5. Metallic Screen: Copper wires
6. External Sheath: PVC in red or black color
