EVAVB /EVAVB-F2 3.6/6kv~26/35kv
- According to IEC 60502
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- Core number: 1 or 3
- HS Code: 8544492100
- MOQ: 500 Meters
5
- Product Details
EVAVB cable is a medium voltage, armoured power cable with a nominal voltage rating of 3.6/6kv~26/35kv. Its construction features stranded copper conductors individually insulated with a durable Polyvinyl Chloride (PVC) compound, which are then protected by an inner sheath, a dual layer of steel tape armor, and a final flame-retardant PVC outer sheath. This cable is applied in industrial plants and power networks for fixed installations and is suitable for underground laying, as well as in cable ducts, conduits, and trenches where robust protection is required. The EVAVB-F2 type featuring flame-retardant properties. The outer sheath of the EVAVB-F2 cable is made from a specialized flame-retardant PVC material that meets the stringent requirements of NBN C 30-004 F2 class, enabling it to resist vertical flame spread.
- EVAVB cables offer exceptional mechanical strength. They provide comprehensive protection against various physical threats, including the compressive forces from soil and vehicle traffic in direct burial applications, direct impacts from falling objects, and the risk of penetration by sharp tools or rocks.
- Outstanding resistance to moisture, oil, and common chemicals found in various industrial environments
- Supports multiple fixed installation methods. It is highly suitable for direct burial underground and typically does not require additional mechanical protection. Its structure is also suitable for line installations without height restrictions.
- Specification
- Rated voltage: 3.6/6kv~26/35kv.
- Maximum Conductor Temperature: under normal(90℃), emergency(130℃)
- Max short circuit temperature: 250°C (Short circuit duration max. 5 s)
- Cable laying temperature (not less than): 0℃
- Min. Bending radius: 15x (Multi Core); 20x (Single Core)

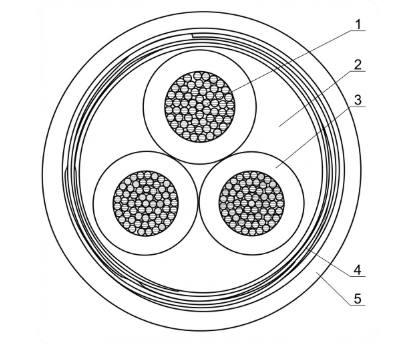

- Construction
- Conductor: Class 2 Stranded Plain Copper
- Insulation: Polyvinyl chloride (PVC)
- Inner Sheath (Bedding): Extruded polymer compound.
- Armor & Screen:Two layers of steel tape with underlying copper wires
- Outer Sheath: Polyvinyl chloride (PVC)
- Parameter
| Nominal Cross-Section | Conductor Shape | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. Conductor Resistance at 20°C | Current Capacity in Air at 30°C | Current Capacity Buried at 20°C |
| (No. of Cores x mm²) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | (A) | (A) | |
| 3 x 1.5 | rm | 0.8 | 1.8 | 13.5 | 345 | 12.1 | 21 | 29 |
| 3 x 2.5 | rm | 0.8 | 1.8 | 14.5 | 420 | 7.41 | 28 | 38 |
| 3 x 4 | rm | 0.8 | 1.8 | 15.5 | 520 | 4.61 | 38 | 51 |
| 3 x 6 | rm | 0.8 | 1.8 | 16.5 | 655 | 3.08 | 49 | 64 |
| 3 x 10 | rm | 1.0 | 1.8 | 19.0 | 915 | 1.83 | 68 | 85 |
| 3 x 16 | rm | 1.0 | 1.8 | 21.0 | 1250 | 1.15 | 90 | 110 |
| 3 x 25 | rm | 1.2 | 1.8 | 25.0 | 1850 | 0.727 | 119 | 141 |
| 3 x 35 | rm | 1.2 | 1.8 | 27.0 | 2390 | 0.524 | 147 | 170 |
| 3 x 50 | sm | 1.4 | 1.9 | 29.5 | 3100 | 0.387 | 175 | 198 |
| 3 x 70 | sm | 1.4 | 2.1 | 33.5 | 4300 | 0.268 | 224 | 248 |
| 3 x 95 | sm | 1.6 | 2.3 | 38.0 | 5800 | 0.193 | 276 | 295 |
| 3 x 120 | sm | 1.6 | 2.4 | 41.0 | 7100 | 0.153 | 319 | 335 |
| 3 x 150 | sm | 1.8 | 2.6 | 45.0 | 8700 | 0.124 | 368 | 375 |
| 3 x 185 | sm | 2.0 | 2.8 | 50.0 | 10600 | 0.0991 | 426 | 425 |
| 3 x 240 | sm | 2.2 | 3.1 | 56.0 | 13600 | 0.0754 | 505 | 490 |
| 4 x 1.5 | rm | 0.8 | 1.8 | 14.5 | 395 | 12.1 | 21 | 29 |
| 4 x 2.5 | rm | 0.8 | 1.8 | 15.5 | 490 | 7.41 | 28 | 38 |
| 4 x 4 | rm | 0.8 | 1.8 | 17.0 | 620 | 4.61 | 38 | 51 |
| 4 x 6 | rm | 0.8 | 1.8 | 18.0 | 780 | 3.08 | 49 | 64 |
| 4 x 10 | rm | 1.0 | 1.8 | 21.0 | 1100 | 1.83 | 68 | 85 |
| 4 x 16 | rm | 1.0 | 1.8 | 23.0 | 1500 | 1.15 | 90 | 110 |
| 4 x 25 | rm | 1.2 | 2.0 | 27.5 | 2250 | 0.727 | 119 | 141 |
| 4 x 35 | rm | 1.2 | 2.1 | 30.0 | 2900 | 0.524 | 147 | 170 |
FAQ
What is the main difference between EVAVB and EXVB cable?
The armor. EXVB is unarmored and requires a conduit for underground use. EVAVB features Steel Tape Armor (STA). This provides mechanical protection against crushing and digging tools, allowing for direct burial in the ground without extra pipes.
Is EVAVB suitable for vertical installation?
No. EVAVB uses Steel Tape Armor, which has low tensile strength and can unravel under its own weight in long vertical runs. For vertical applications or high pulling tension, you should use a Steel Wire Armored (SWA) cable instead.
Can I bury EVAVB cable directly in the earth?
Yes. This is its primary application. The double steel tape armor protects the XLPE insulation and conductors from soil pressure, rocks, and accidental impact. However, it is recommended to lay warning tape above the cable during installation.
