2XSY N2XSY A2XSY NA2XSY XLPE Insulated PVC Sheath Cable

According to IEC 60502-2, VDE 0276-620
Approved by ISO,CCC, CE
Place of Origin: Henan, China
HS Code: 8544492100
MOQ: 500 Meters

10~90 $ / Meter

5

2XSY cable is a high quality single core medium voltage power cable. It complies with high German and European standards and is especially designed for electrical connections requiring high stability. The cross-linked polyethylene insulation and copper shielding provide excellent insulation and resistance to mechanical stress. 2XSY cables excel in both indoor and outdoor cable-laying environments, including direct burial, in cable ducts and on cable bridges.

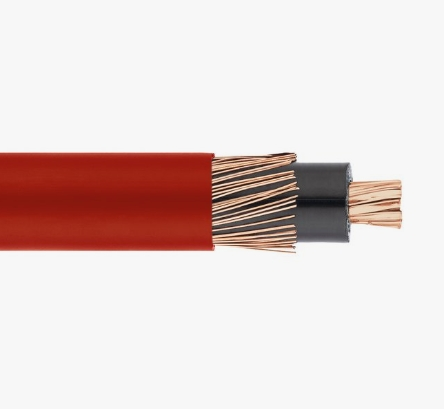

2XSY Cable Construction

Cu / Al conductor
Internal semi-conductive layer
XLPE insulation
External semi-conductive layer
Cu screen
PVC outer sheath

2XSY Cable Specification

Temperature range:- 20°C-70°C
Laying temperature: no less than – 20°C
Max.operating temperature: 90°C
Maximal short-circuit temperature: 250°C (Short circuit duration max. 5 s)
Minimum bending radius: 15x

12 / 20 kV 2XSY Cable Technical Data

Cross section (mm2)	Insulation Thickness	Sheath Thickness	Screen section (mm2)	Min. outer diameter (mm)	Max. outer diameter (mm)	Weight (approx)(kg/km)
35	5.5	2.5	16	27	32	1100
50	5.5	2.5	16	28	33	1250
70	5.5	2.5	16	30	35	1450
95	5.5	2.5	16	31	36	1750
120	5.5	2.5	16	32	38	2050
150	5.5	2.5	25	33	39	2400
185	5.5	2.5	25	35	41	2800
240	5.5	2.5	25	38	44	3400
300	5.5	2.5	25	40	46	4000
400	5.5	2.5	25	43	49	4950
500	5.5	2.5	35	46	52	6050
