20KV CU/XLPE/SWA/PVC MV Cable
- According to IEC and GB Standard
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China

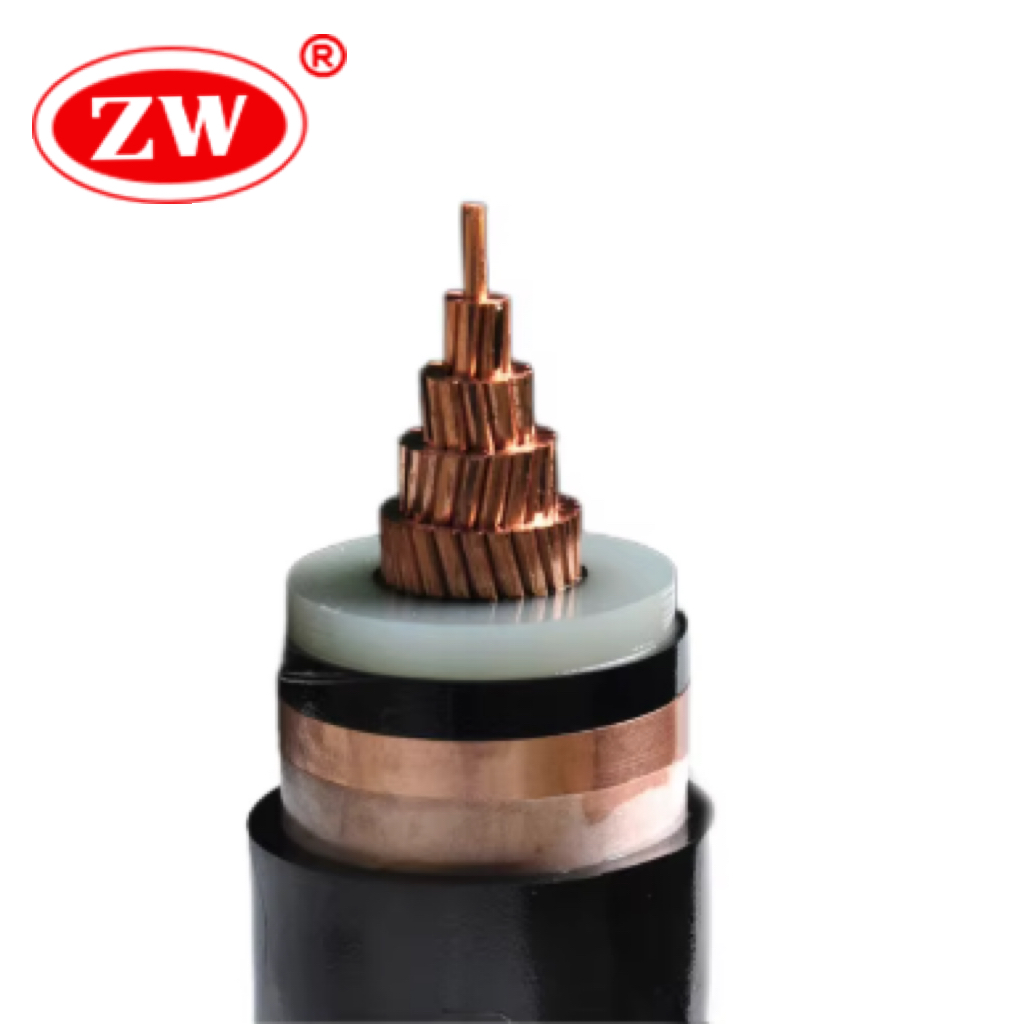

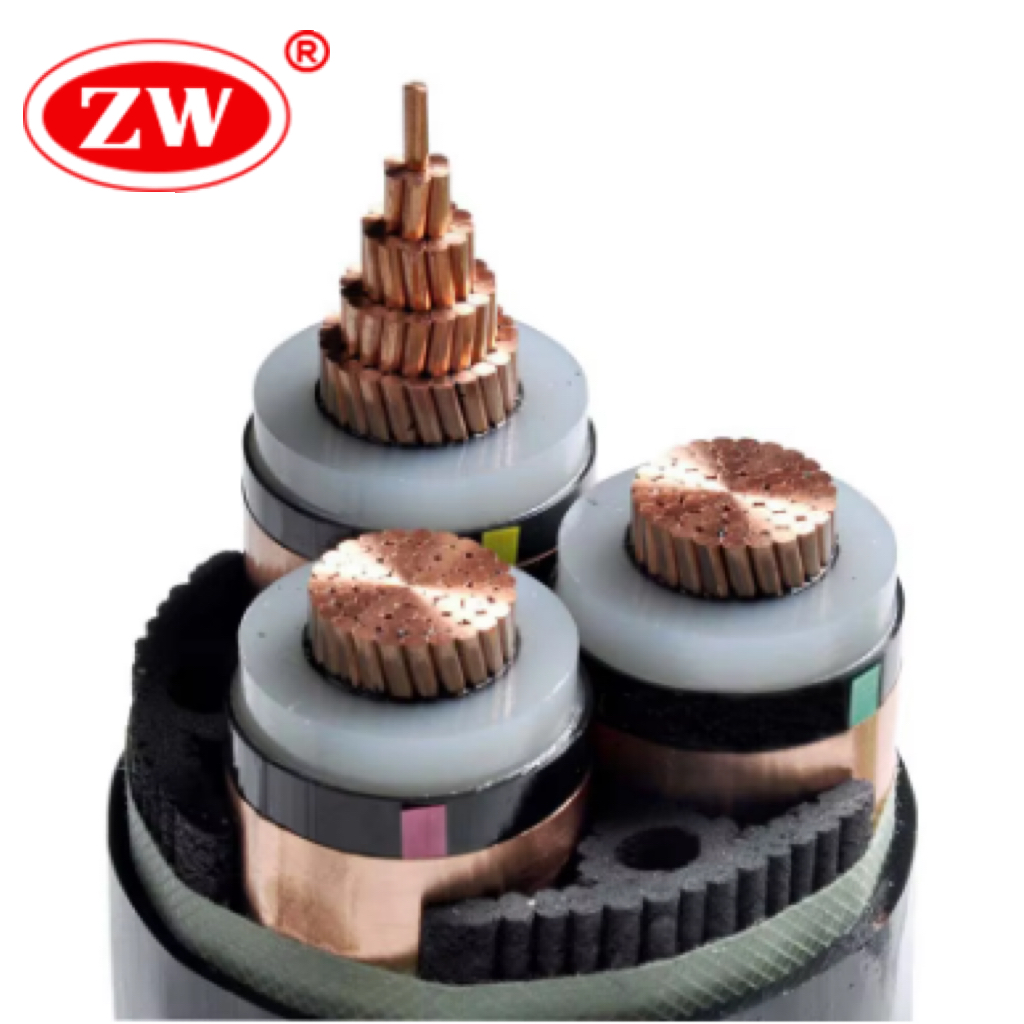

- Number of Cores: 1 or 3
- HS Code: 8544492100
- MOQ: 500 Meters
10~90 $ / Meter
5
- Product Details
20KV cables are designed for safe and stable operation at rated voltages of 12/20 kV (Um=24KV). 20KV XLPE insulated cables offer excellent electrical insulation, heat resistance and durability. Effective copper tape or copper wire shielding or guarantees system stability. These cables are used to supply power in medium voltage installation systems, they are suitable for installation indoors and outdoors, in cable ducts, underground, in power and switching stations, in local energy distribution, in industrial plants, without risk of mechanical damage. The different versions are tailored to the various installation environments, such as the 20kv N2XSY cable, which is flexible and can be buried directly.
- Specification
- 20kv cable size: 25/35/50/70/95/120/150/185/240/300 mm
- Temperature range: -20°C to +90°C
- Permissible operating temperature of the conductor:+90°C
- Permissible short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)
- Related Voltage: 12/20KV
- Construction
- Conductor: Plain annealed copper Class 2
- Insulation: XLPE
- Copper Tape or Copper Wire Screen
- Armour Type: STA(Steel Tape Armoured)/SWA(Steel Wire Armoured)
- Sheath Material: PVC or Polyethylene
- Parameter
|
Core x Cross Section
|
Nom. Insulation Thickness
|
Tickness of Steel Tape
|
Tickness of Steel Wire
|
Nom. Sheath Thickness
|
Dia of Cable
|
Cable Weight
|
Max. D.C Resistance of Conductor 20℃
|
||
|
mm²
|
mm
|
mm
|
YJV32/YJLV32
|
YJV32/YJLV32
|
YJV32/YJLV32
|
YJV32
|
YJLV32
|
Cu
|
Ai
|
|
1 x 25
|
2.5
|
0.2
|
1.6
|
1.8
|
24
|
1265
|
1112
|
0.727
|
1.20
|
|
1 x 35
|
2.5
|
0.2
|
1.6
|
1.8
|
25
|
1416
|
1203
|
0.524
|
0.868
|
|
1 x 50
|
2.5
|
0.2
|
1.6
|
1.8
|
27
|
1624
|
1329
|
0.387
|
0.641
|
|
1 x 70
|
2.5
|
0.2
|
1.6
|
1.9
|
29
|
1913
|
1493
|
0.268
|
0.443
|
|
1 x 95
|
2.5
|
0.2
|
1.6
|
1.9
|
30
|
2255
|
1673
|
0.193
|
0.320
|
|
1 x 120
|
2.5
|
0.2
|
1.6
|
2.0
|
32
|
2574
|
1840
|
0.153
|
0.253
|
|
1 x 150
|
2.5
|
0.2
|
2.0
|
2.0
|
34
|
3167
|
2257
|
0.124
|
0.206
|
|
1 x 185
|
2.5
|
0.2
|
2.0
|
2.1
|
36
|
3596
|
2463
|
0.0991
|
0.164
|
|
1 x 240
|
2.6
|
0.2
|
2.0
|
2.2
|
39
|
4311
|
2825
|
0.0754
|
0.125
|
|
1 x 300
|
2.8
|
0.5
|
2.0
|
2.3
|
41
|
5064
|
3204
|
0.0601
|
0.100
|
|
1 x 400
|
3.0
|
0.5
|
2.5
|
2.4
|
46
|
6542
|
4146
|
0.047
|
0.078
|
FAQ
Where are 20 kV MV cables commonly used?
They are widely used in urban distribution networks, industrial plants, substations, renewable energy projects, and commercial power systems.
Are 20 kV MV cables suitable for underground installation?
Yes. With appropriate sheath design and mechanical protection, 20 kV MV cables are suitable for direct burial, ducts, or tunnels.
How long is the service life of a 20 kV MV cable?
When properly installed and operated, a 20 kV MV cable typically has a service life of 30–40 years.
