The reliability of a Medium Voltage (MV) network is defined strictly by the dielectric integrity of its insulation system. Once a cable is buried or pulled into a conduit, the asset is essentially invisible; you cannot verify its condition through visual inspection alone.
If you are not yet fully familiar with how MV cables are built and how their insulation systems work, it is worth starting with our comprehensive guide on Exploring Medium Voltage Cable.
A cable with a deep insulation gouge, a water-compromised joint, or a microscopic void in the termination will conduct electricity perfectly—right up until the moment it catastrophically fails under load. Therefore, testing and certification inspections are the only means to detect potential defects before they develop into failures.
Categories of Medium Voltage Cable Testing
Testing must be approached in three distinct phases. Confusing them is the most common mistake facility managers make.
- Factory Acceptance Tests (FAT): Performed by the manufacturer to prove the cable design meets standards.
- Commissioning Tests (Installation): Performed on-site before energization. This proves the contractor didn’t damage the cable during the pull.
- Diagnostic Tests (Maintenance): Performed on aged cables. This tells you how much life is left.
The “Megger” Myth: If you rely solely on a simple Insulation Resistance (IR) test for a 20-year-old cable, you are driving blind. An IR test might show “Gigohms” of resistance one day before a catastrophic failure because it measures leakage current at low voltage, not the dielectric strength required to withstand operating stress.
Factory Acceptance Tests (FAT) and Certification
Before the cable even arrives at your site, it must carry a pedigree. When sourcing from Medium Voltage Cable Manufacturers, you should demand two specific documents:
Routine Tests: Every single drum of cable must undergo these. It usually includes a high-voltage withstand test and a partial discharge check at the factory. Never accept a drum without its specific test report.
Type Tests : These are destructive tests done once on a sample of a new cable design. They include aging the cable in an oven for months or subjecting it to fire.
“Routine Tests” vs “Type Tests”
Think of Routine Tests as the “birth certificate” for the specific drum of cable you are buying; these are non-destructive tests (like continuity and AC withstand) performed on every single unit leaving the factory. Type Tests, however, are the “design validation.” These are destructive tests performed once on a sample batch to prove the cable design can withstand extreme conditions like fire or long-term thermal aging. You should always demand the Routine Test report for your specific serial numbers.
Pre-Commissioning and Site Acceptance Testing (SAT)
Once the cable is installed, the responsibility shifts to the site team. The goal of SAT is to verify installation quality.
1. Sheath Integrity Test
This is the most critical mechanical check, yet it is often overlooked. It verifies that the outer protective jacket has not been cut or gouged by rocks or duct edges during the pull.
- Objective: To detect punctures that would allow groundwater ingress.
- Method: Apply DC voltage (typically 5kV or 10kV) between the metallic screen and the earth ground.
- Acceptance Criteria: Resistance should be in the hundreds of Mega-ohms. A reading near zero indicates a sheath puncture that must be repaired immediately to prevent future screen corrosion.
2. VLF (Very Low Frequency) Withstand Test
Historical methods using High Voltage DC (Hipot) are now discouraged for modern XLPE cables, as DC voltage can trap space charges in the insulation, leading to post-test failure.
- Modern Standard (IEEE 400.2): The industry standard is VLF AC testing.
- Method: An AC voltage is applied at a frequency of 0.1 Hz. This allows the test equipment to be portable while still stressing the insulation similarly to operational 50/60Hz voltage.
- Procedure: The cable must withstand 3 times its rated voltage ($3U_0$) for a specified duration (typically 60 minutes).
- Benefit: If a defect exists, VLF causes it to fail during the test (a controlled environment) rather than under load.
Case Study: Solar Farm Interconnection (2019): A contractor relied on a simple low-voltage Insulation Resistance (IR) check, which passed. They skipped the VLF test to save time. The IR check missed a deep gouge caused by a backhoe bucket, which left only 1mm of insulation. Three days after energization, during a heavy rainstorm, the phase faulted catastrophically. $150,000 in downtime and repair costs, which would have been prevented by a standard VLF test.
Diagnostic and Condition Monitoring Techniques
For critical infrastructure, “Pass/Fail” testing provides limited insight. Diagnostic testing quantifies the health of the insulation and predicts future reliability. For a detailed analysis of how these factors influence longevity, see our guide on [Medium Voltage Cable Life Expectancy and Its Top Impacting Factors].
1. Partial Discharge (PD) Testing
Partial Discharge involves small electrical sparks occurring within air voids or defects in the insulation system. Detecting PD allows for planned repairs before a flashover occurs. It is the primary method for detecting workmanship errors in terminations and joints (e.g., air gaps in heat shrink).
-
Online PD: Sensors (HFCTs) are attached to earth straps while the system is live. This is excellent for screening but can be noisy.
-
Offline PD: Performed during VLF testing. This offers higher sensitivity and allows for mapping the exact location of the discharge.

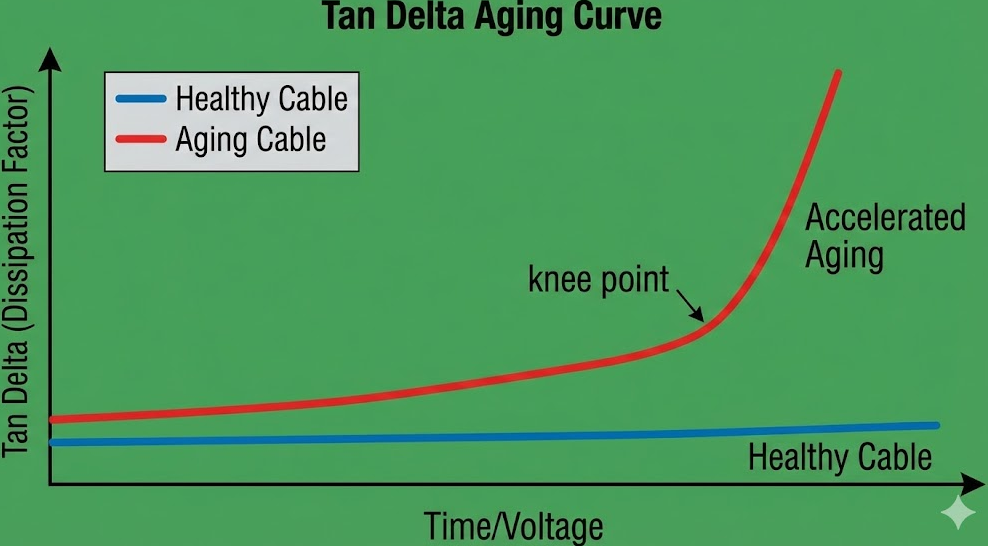

2. Tan Delta (Dissipation Factor) Testing
This test assesses the global condition of the cable insulation. As insulation ages or absorbs moisture (water treeing), it becomes more resistive, causing the current angle to shift.
- Low/Stable Values: Indicates dry, healthy insulation.
- High/Rising Values: Indicates widespread degradation or water ingress.
Strategy: Trend this data over time. A sharp rise in Tan Delta from the previous test indicates accelerated aging.
Fault Location and Troubleshooting Procedures
When a failure occurs, a logical diagnostic sequence ensures safety and efficiency.
- Isolation and Safety: Verify the system is de-energized. Discharge the cable to remove lethal capacitive charges.
- Visual Inspection: Check terminations for burns, tracking, or ozone odors.
- TDR (Time Domain Reflectometry): Also known as “Cable Radar,” this sends a low-voltage pulse down the cable. The reflection indicates the distance to the fault (open or short).
- Thumping (Surge Generation): Once the approximate location is known via TDR, a high-energy pulse is sent to create an audible “thump” at the fault site, allowing precise pinpointing for excavation.
Caution: Use the minimum necessary voltage to avoid damaging healthy insulation sections.
Standards Reference Table
Refer to the following international standards when specifying or reviewing test procedures.
| Standard | Scope | Application |
| IEC 60502-2 | Construction & Acceptance | Defines factory test limits for 1kV–30kV cables. |
| IEEE 400.2 | Field Testing (VLF) | The global guideline for VLF field testing parameters. |
| IEC 60229 | Sheath Testing | Specifies DC voltage limits for testing outer protective jackets. |
| IEEE 400.3 | Partial Discharge | Guidelines for interpreting PD signals in field conditions. |
Testing is the only way to visualize the invisible health of your power network. In my experience, the cost of a full VLF and PD commissioning test suite is usually less than 1% of the total project cost. Yet, skipping it is the primary cause of early-life failure.
