In electrical distribution, Medium Voltage (MV) cabling demands a level of precision that Low Voltage systems simply do not require. While standard wiring tolerates minor rough handling, MV cable is unforgiving. Its insulation system—particularly the Cross-Linked Polyethylene (XLPE) and semiconductive screens—functions as a delicate, precision-engineered ecosystem. A single scratch on the outer sheath or a crush injury from an improper winch setup does far more than look bad. It creates a microscopic stress point that guarantees failure, often years later when the system is under peak load.
To truly master installation, you must first understand the materials you are handling. I recommend reviewing our guide on [Medium Voltage Cable Construction, Size And Installation] to fully grasp the complex anatomy of these cables before you begin.
A standard installation manual will tell you what to do. This Medium Voltage Cable Installation Guide will provide you with a thorough, step-by-step approach, grounded in best practices, common pitfalls, and insights gained from decades of industry experience.
Stage 1: Pre-Installation Preparation
1. Logistics & Storage
Most cable damage happens before the pull even starts. I’ve seen drums dropped, rolled over debris, or left in standing water, compromising the cable before it sees a trench.
- Upright Only: Never store drums flat on their side. The layers of cable can slip and entangle (“telescoping”), making the drum impossible to pay out.
- Sealing: Ensure the cable ends are sealed with heat-shrink end caps. I have seen engineers cut a sample for testing and tape the end with PVC tape. This is insufficient. MV cables are hygroscopic; moisture ingress can travel meters up the conductor strands via capillary action, ruining the cable.
2. Environmental Risk Assessment
Temperature is a critical variable. Materials like PVC (sheath) and XLPE (insulation) become brittle at low temperatures.
- The “Glass Phase”: Below 0°C (32°F), the outer sheath loses ductility. Impacting or bending the cable in this state can cause the jacket to shatter like glass.
- Mitigation: If installing in winter (<5°C), drums must be stored in a heated enclosure (+20°C) for at least 24 hours prior to the pull to allow heat to soak through to the core.
When planning for environmental extremes or high-load ampacity, understanding the difference between [MV-90 vs MV-105] insulation ratings dictates the cable’s thermal ceiling during operation.
3. Tools and Equipment

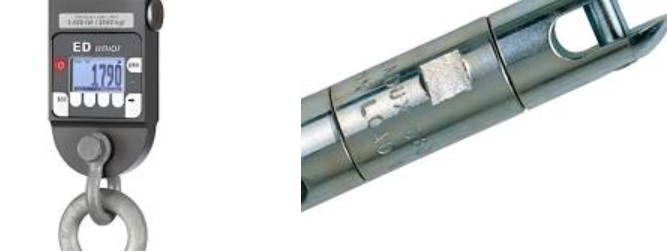

Essential Equipment Compliance with IEC 60502-2 requires more than basic tools. You must use a calibrated dynamometer to monitor pulling tension in real-time, rather than relying on the winch gauge. Equally important is a break-away swivel, which acts as a mechanical fuse between the winch rope and the cable grip, preventing dangerous torsion transfer and snapping if tension exceeds design limits.
Stage 2: Installation and Laying
According to NFPA data, nearly 20% of industrial electrical fires are linked to installation failures. This phase requires a focus on friction management, geometric discipline, and surgical cleanliness. Even if you source your materials from [Global Leading Medium Voltage Cable Manufacturers], the highest quality cable in the world cannot survive a bad installation.
- Step 1: Route Dynamics and Friction Management Success begins with a proven route. Never pull into an unverified duct; run a wire brush to clear abrasive debris and a test mandrel to confirm clearance. To minimize friction, liberally apply a high-performance polymer lubricant compatible with the cable jacket (e.g., Polywater J). Crucially, install a “bell mouth” guide at the duct entry to prevent the sharp duct rim from shaving the cable sheath during the feed-in.
- Step 2: Managing Geometry and Sidewall Pressure Bends are critical failure points due to Sidewall Pressure. Adhere to the “Quadrant Rule”: replace single vertical rollers with conveyor quadrants to distribute the load evenly across a smooth arc. Strictly observe the Dynamic Bending Radius (typically 15x OD) during the pull; tighter bends under tension will delaminate the internal screens from the insulation, creating voids that lead to future Partial Discharge.
- Step 3: Precision Terminations and Connections Terminations require surgical cleanliness. Avoid knives; use dedicated, adjustable scoring tools to strip layers, as a mere 0.1mm score on the XLPE creates a “notch effect” that compromises dielectric strength. Position stress control components exactly according to manufacturer templates to manage electric field lines, and bond the metallic screen using Constant Force Springs for a vibration-proof earth path.
- Step 4: Mechanical Support and Short Circuit Protection Secure single-core cables in a Trefoil formation using tested stainless steel or composite cleats rated for the system’s kA fault level; standard plastic ties will snap instantly during a short circuit. In the trench, backfill with selected thermal sand rather than native soil. This ensures proper heat dissipation and prevents air pockets that act as insulators, accelerating insulation aging.
Stage 3: Post-Installation Testing
Once the cable is installed, rigorous testing is the only way to sign off on the asset’s health.
| Test Type | Purpose | Best Practice |
| Sheath Integrity Test | Detect cuts in the outer jacket before backfilling. | Megger: Apply 5kV – 10kV DC between metallic screen and earth. Acceptance: >1 MΩ/km. Crucial: If you skip this, groundwater will corrode the screen. |
| VLF Withstand Test | Check insulation integrity without damaging cable memory. | Method: Apply 0.1 Hz VLF (Very Low Frequency) AC voltage at 3x U0 for 15-60 mins. Note: Avoid DC Hipot on aged XLPE as it traps space charges. |
| Partial Discharge (PD) | Detect internal voids or workmanship errors. | Diagnostic: < 10pC at 1.5 U0. This finds the “ticking time bombs” in terminations. |
| Contact Resistance | Ensure joints/lugs are tight. | Ductor Test: Micro-ohm resistance measurement across the joint. Should vary <5% from the conductor baseline. |
| Phasing Check | Verify L1-L2-L3 rotation. | Physical and electrical verification before energization. |
Troubleshooting and Ongoing Maintenance
Even with a successful installation, continuous monitoring is necessary to ensure the system operates optimally. Regular inspection of the cable for any signs of wear, degradation, or thermal aging is essential.
By following these protocols, you ensure the system delivers reliable power for its 30+ year design life. For a deeper analysis of how installation quality directly affects asset longevity, read our guide on [Medium Voltage Cable Life Expectancy and Its Top Impacting Factors].
Need Specifics on Testing & Certification? Once your cable is safely installed, the next critical step is ensuring it meets regulatory standards. Read our Cable Testing Standards and Certification Guide to help you select products that meet your requirements.
Frequently Asked Questions (FAQ)
Q: Can I still use my old DC Hipot tester for commissioning MV cables?
A: I strongly advise against it. While DC testing was standard for paper-insulated (PILC) cables, it can be destructive to modern XLPE insulation. High-voltage DC testing traps “space charges” within the insulation lattice. When the cable is re-energized with AC, these charges release, potentially causing immediate failure. The modern industry standard (IEEE 400.2) is Very Low Frequency (VLF) AC testing, which stresses the cable effectively without damaging its dielectric memory.
Q: What exactly is the “Glass Phase,” and why does it stop work in winter?
A: The “Glass Phase” refers to the temperature threshold (typically below 0°C / 32°F) where polymer materials like PVC (sheath) and XLPE (insulation) lose their flexibility and become brittle, similar to glass. If you uncoil or bend a cable in this state, the jacket will micro-crack or shatter. If you must install in freezing conditions, you are required to “hot soak” the drums in a heated enclosure (+20°C) for 24 hours to restore the material’s ductility before handling.
Q: The insulation resistance test passed. Why is the “Sheath Integrity Test” necessary?
A: An insulation test checks the core, but the Sheath Integrity Test (Megger) checks the defense system. It applies voltage to the metallic screen to detect cuts in the outer black jacket. If you skip this, a minor cut from a rock will allow groundwater to enter. Over 2-5 years, this water will corrode the copper tape screen, breaking your earth path and leading to a catastrophic safety failure. A healthy sheath is the only way to guarantee the 30-year lifespan of the asset.
