In real projects, the question is almost never “What cable do we have in stock?” It is “What voltage level and cable type will give us a safe, efficient system for several years?”
Whether it’s a small commercial upgrade or a major utility installation, the same decision comes up time and again: should this feeder use low voltage or medium voltage cable?
Read on to discover the practical differences between low and medium voltage cables—details that can mean the difference between a network running smoothly for 30 years or encountering serious issues in its first month.
1. Voltage Classifications and Application Scope
The first step in distinguishing these cables is understanding where the industry draws the lines. While definitions can vary slightly by standard (IEC vs. NEC), the operational realities are distinct.
- Low Voltage (LV): Typically defined as 1,000V. In most commercial and industrial applications, it is used for secondary distribution, lighting systems, and small motors.
- Medium Voltage (MV): Defined broadly as 1,000V to 35,000V. Here you find feeders between substations, large motors, renewable energy interconnections, long industrial runs, and utility distribution circuits. For example, heavy industrial facilities and utility feeders rely heavily on 5kV cable for large motors and 15kV cable for primary distribution loops.
Understanding these voltage bands is the prerequisite for exploring medium voltage cable architecture, as the voltage level dictates the complexity of the cable’s construction.
2. The Role of “Shielding”

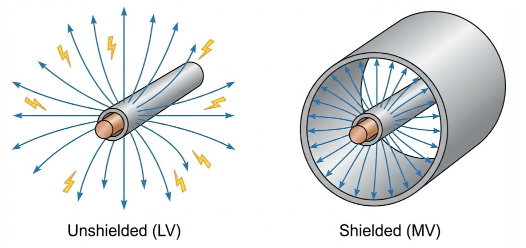

The most critical difference between LV and MV cables isn’t the size of the copper—it’s the presence and function of shielding.
Low Voltage: In LV cables, the insulation layer (usually PVC or XLPE) serves as a straightforward dielectric barrier between the conductor and ground. The voltage potential is low, so the electrical field isn’t strong enough to ionize air or cause tracking across the insulation surface. As a result, LV cables rarely require metallic shielding or semi-conductive layers.
Medium Voltage: Once voltage exceeds 2kV, the electrical field becomes intense. Without shielding, the air gaps between the insulation and the ground (or between phases) would ionize, creating ozone that chemically destroys the insulation.
MV cables employ a multi-layer shielded design:
- Conductor Screen (Semi-con): Smooths out imperfections on the conductor surface to prevent stress concentrations.
- Insulation Screen (Semi-con): Ensures the electric field remains uniform within the insulation.
- Metallic Shield: A copper tape or wire layer that confines the electric field inside the cable and provides a path for fault currents.
Expert Note:
Failure to properly terminate these shield layers is the leading cause of MV cable failure. Unlike LV cables, which are simply stripped and connected, MV cables require the shield to be stripped back and stress-controlled to prevent “flux crowding” at the cutback.
3. Insulation Materials and Thermal Ratings
- For most low voltage applications, polyvinyl chloride (PVC) is commonly used because it’s affordable, durable, and works well for systems up to 600V. However, PVC isn’t suitable for medium voltage situations due to its higher dielectric losses.
- MV cables almost exclusively use: Cross-Linked Polyethylene (XLPE): Offers high dielectric strength and low moisture permeability. It is the standard for utility distribution; Ethylene Propylene Rubber (EPR): Known for flexibility and thermal stability, often preferred in industrial plants.
More Comparison: Should We Use EPR VS XLPE for Cable Insulation?
Temperature Ratings: MV-90 vs. MV-105
In LV circuits, we often design around 75°C or 90°C terminal ratings. In the MV world, the insulation’s thermal rating directly impacts the ampacity (current-carrying capacity) of the circuit. Engineers must often choose between the standard MV 90 vs MV 105 classifications.
4. Termination and Installation
The physical handling of the cable is where the “mindset shift” must occur for installation crews.
- LV: A scratch on the insulation of a THHN wire is rarely fatal. You can tape it up, and it will likely hold.
- MV: A scratch on the XLPE insulation of a 15kV cable acts as a “stress riser.” The electric field concentrates at the bottom of the scratch, initiating an electrical tree that will eventually bore through the insulation. Cleanliness is non-negotiable. Medium Voltage Cable Installation requires surgical precision, using specific solvents and lint-free cloths to prevent tracking.
Bending Radius and Pulling Tension
Medium voltage cables are stiffer and heavier due to the shielding and thicker insulation. They have much stricter Side Wall Pressure (SWP) limits. Pulling an MV cable around a tight bend with the same force used for an LV feeder will crush the insulation against the shield, causing latent damage that fails months later.
5. Testing, Maintenance, and Lifecycle
Verifying the health of LV and MV cables requires entirely different approaches.
- LV Testing: Typically limited to a 1kV insulation resistance (Megger) test. If resistance reads high, the cable passes.
- MV Testing: A simple Megger test is insufficient for MV cables because it cannot detect defects that only trigger under high-voltage AC stress. Instead, Very Low Frequency (VLF) testing and Tan Delta diagnostics are used to assess insulation aging and detect partial discharge.
Predicting Failure
Because MV cables operate under constant electrical stress, they are subject to aging mechanisms like Water Treeing that do not affect LV cables. Predicting medium voltage cable life expectancy involves trending diagnostic data over time to catch degradation before it results in a catastrophic fault.
6. Manufacturing and Sourcing
- In the LV market, cable is often treated as a commodity—a 500 MCM THHN cable from Brand A is functionally identical to Brand B.
- In MV, the manufacturing process is far more sensitive. A microscopic void introduced into the XLPE insulation during extrusion can become a failure point years down the road. Consistency in the extrusion of semi-conductive layers is vital to ensure the bonding is tight enough to prevent air pockets but loose enough to strip during termination.
Expert Tip:
For critical infrastructure, “generic” cable is a high-risk gamble. Always source from global leading medium voltage cable manufacturers who maintain rigorous clean-room standards and provide comprehensive type test certificates.
| Feature | Low Voltage (LV) | Medium Voltage (MV) |
| Typical Voltage | 600V – 1kV | 5kV – 35kV |
| Primary Stress | Thermal (Heat from current) | Dielectric (Electrical Field) |
| Shielding | Rarely used | Mandatory (Tape/Wire/Braid) |
| Insulation Material | PVC, THHN, XHHW | XLPE, EPR (MV-90/105) |
| Termination Skill | Moderate (Crimp/Bolt) | High (Stress Control/Cleanliness) |
| Failure Mode | Overheating/Shorts | Partial Discharge/Tracking |
| Testing | Insulation Resistance (DC) | VLF, Tan Delta, Partial Discharge |
This kind of detailed comparison makes it much easier to see which cable really fits your project. In day-to-day projects, it’s easy to default to whatever everyone “normally uses” on site. But once you move into the medium-voltage field, instinct and habit stop being enough. Shielding, stress control, insulation class, terminations, testing – these are no longer optional refinements.
Frequently Asked Questions (FAQ)
Q: Can I run Low Voltage (LV) and Medium Voltage (MV) cables in the same cable tray?
A: Generally, no. Most electrical codes (such as the NEC and IEC standards) strictly prohibit mixing voltage classes in the same tray without a solid, grounded metal barrier. This separation prevents a fault in the MV cable from inducing lethal voltages onto the LV control or power circuits, which could destroy connected equipment and electrocute personnel working on “safe” low voltage systems.
Q: Why can’t I use a standard 1000V Megger to test my 15kV cable?
A: You can, but it provides limited value. A 1kV DC insulation resistance test might detect a dead short, but it cannot generate enough electrical stress to detect voids, water trees, or defects in the insulation that only ionize at higher voltages. To certify an MV cable, you must use Very Low Frequency (VLF) testing or Partial Discharge (PD) diagnostics to simulate operating conditions.
Q: Is “Tree-Retardant” XLPE (TR-XLPE) worth the extra cost over standard XLPE?
A: For underground or wet environments, absolutely. Standard XLPE is susceptible to “water treeing”—microscopic channels that grow through the insulation in the presence of moisture and electric field. TR-XLPE is chemically engineered to resist this growth. Given that most underground failures are moisture-related, TR-XLPE significantly extends the asset’s service life.
