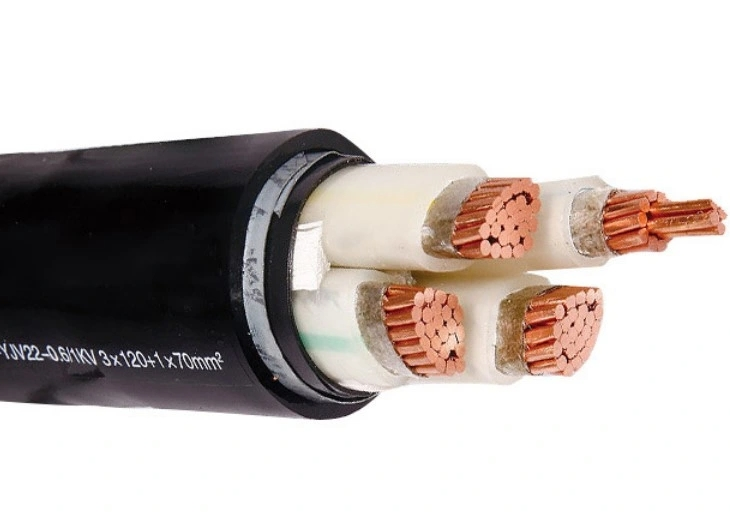

CU/XLPE/STA/PVC 0.6/1kV YJV22 Cable
- According to IEC and GB Standard
- PVC Insulation
- Place of Origin: Henan, China
- In Stock
- Number of Cores:1, 2, 3, 4 , 5
- HS Code: 8544492100
5
Copper core cross-linked polyethylene insulated power cables mainly include: NH-YJV cable, ZRC-YJV22 cable, ZR-YJV22 cable and YJV22 cable. And belongs to the yjv cable series YJV22 represents the copper core cross-linked polyethylene insulated steel tape armored PVC sheathed power cables. Compared with YJV cables, YJV22 has an extra layer of steel tape armored metal protective layer, which is used to improve the mechanical strength and compression resistance of the cable.
YJV22 Cable application
YJV22 cables are widely used in power transmission and distribution systems, especially for direct burial and outdoor installations. They are favored in industrial environments, infrastructure projects such as tunnels and bridges due to their high mechanical strength, resistance to environmental stress and excellent electrical properties.

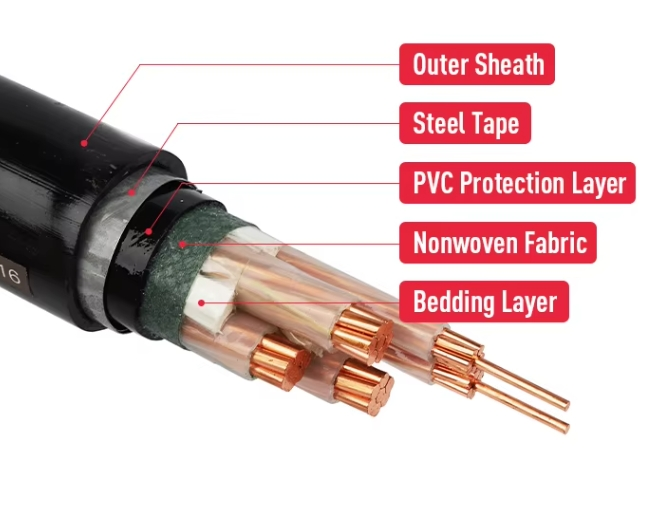

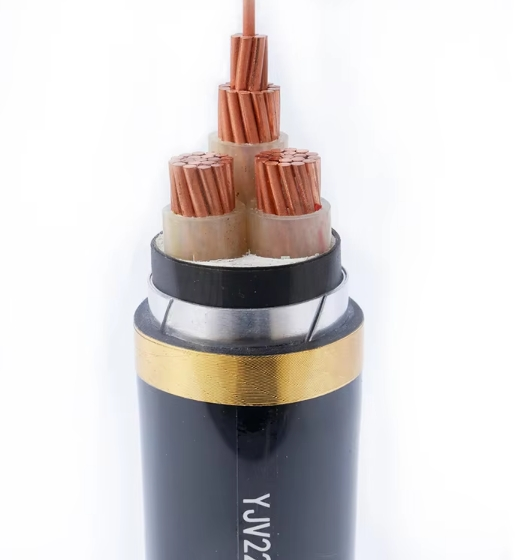

YJV22 Cable Construction
- Conductor: Stranded copper conductor
- Insulation: Cross-linked polyethylene (XLPE)
- Armoured: Double galvanized steel tape
- Sheath: Flame Retardant PVC
- Sheath Color: Black
YJV22 cable Specification
- Maximum Short Circuit Temperature: +250°C (max 5 seconds)
- Temperature Range: -20℃~+90℃
- Voltage Rating : 0.6/1kV
- Minimum Bend Radius: Single core: 15 x overall diameter; Multi core: 12 x overall diameter
2/3/4 core YJV22 cable Parameter
| Nominal Cross Section mm² | Insulation thickness (mm) | Steel belt armored (mm) |
Sheath thickness (mm) |
Approx Diameter (mm) |
Cable weight
kg/km |
DC. Electrcal Resistance at 20℃ |
| 2×10 | 0.7 | 0.2 | 1.8 | 17.8 | 452 | 1.83 |
| 2X16 | 0.7 | 0.2 | 1.8 | 20.0 | 609 | 1.15 |
| 2X25 | 0.9 | 0.2 | 1.8 | 23.3 | 845 | 0.727 |
| 2X35 | 0.9 | 0.2 | 1.8 | 24.6 | 1065 | 0.524 |
| 2X50 | 1.0 | 0.2 | 1.8 | 27.2 | 1297 | 0.387 |
| 2X70 | 1.1 | 0.2 | 1.9 | 31.4 | 1775 | 0.268 |
| 2X95 | 1.1 | 0.2 | 2.0 | 35.5 | 2340 | 0.193 |
| 2X120 | 1.2 | 0.5 | 2.2 | 40.2 | 3238 | 0.153 |
| 2X150 | 1.4 | 0.5 | 2.3 | 44.2 | 3971 | 0.124 |
| 3×10 | 0.7 | 0.2 | 1.8 | 18.6 | 560 | 1.83 |
| 3×16 | 0.9 | 0.2 | 1.8 | 21.0 | 775 | 1.15 |
| 3×25 | 0.9 | 0.2 | 1.8 | 24.6 | 1098 | 0.727 |
| 3×35 | 0.9 | 0.2 | 1.8 | 26.0 | 1410 | 0.524 |
| 3×50 | 1.0 | 0.2 | 1.9 | 28.9 | 1780 | 0.387 |
| 3×70 | 1.1 | 0.2 | 2.0 | 33.9 | 2475 | 0.268 |
| 3×95 | 1.1 | 0.5 | 2.2 | 39.0 | 3260 | 0.193 |
| 3×120 | 1.2 | 0.5 | 2.3 | 42.7 | 4477 | 0.153 |
| 3×150 | 1.4 | 0.5 | 2.4 | 47.5 | 5440 | 0.124 |
| 3×185 | 1.6 | 0.5 | 2.6 | 52.1 | 6707 | 0.0991 |
| 3×240 | 1.7 | 0.5 | 2.8 | 58.3 | 8533 | 0.0754 |
| 3×300 | 1.8 | 0.5 | 2.9 | 63.6 | 10455 | 0.0601 |
| 4×10 | 0.7 | 0.2 | 1.8 | 20.0 | 681 | 1.83 |
| 4×16 | 0.9 | 0.2 | 1.8 | 22.7 | 960 | 1.15 |
| 4×25 | 0.9 | 0.2 | 1.8 | 26.7 | 1375 | 0.727 |
| 4×35 | 0.9 | 0.2 | 1.8 | 28.3 | 1779 | 0.524 |
| 4×50 | 1.0 | 0.2 | 2.1 | 32.0 | 2296 | 0.387 |
| 4×70 | 1.1 | 0.5 | 2.1 | 38.5 | 3175 | 0.268 |
| 4×95 | 1.1 | 0.5 | 2.3 | 42.9 | 4665 | 0.193 |
| 4×120 | 1.2 | 0.5 | 2.4 | 47.4 | 5728 | 0.153 |
| 4×150 | 1.4 | 0.5 | 2.6 | 52.3 | 6999 | 0.124 |
| 4×185 | 1.6 | 0.5 | 2.7 | 57.5 | 8657 | 0.0991 |
| 4×240 | 1.7 | 0.5 | 3.0 | 64.3 | 11000 | 0.0754 |
| 4×300 | 1.8 | 0.5 | 3.1 | 70.3 | 13587 | 0.0601 |
