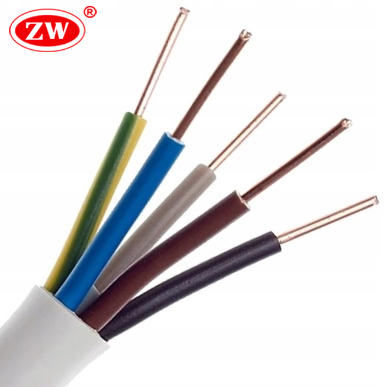

NYM Power Cable
- According to UL/CE/RoHS Standard
- Approved by CE, UL
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Low Voltage
0.1~4.0 $ / Meter
5
- Product Details
The “M” in NYM indicates that the cable contains multiple individual cores within a single PVC jacket. This product is suitable for use in lines with an AC rated voltage U0/U of 0.6/1kV for transmission and distribution lines. Designed with rugged PVC insulation and jacketing to meet European standards, the low voltage cable is the preferred choice for residential, commercial and industrial environments. NYM cables are well insulated and adaptable to a wide range of environments – from dry interiors to wet areas. In contrast, NYY cables perform better in outdoor and underground applications.
Key Features：
- Excellent resistance to moisture, chemicals and mechanical stresses
- A variety of Nym cable types are available, including NYM-J cable with green/yellow ground wire and NYM-O without green/yellow ground wire, to meet different wiring needs.
- Follow DIN VDE0295 cl.1/cl.2 BS 6360 cl.1/cl.2, IEC60228 cl.1/cl.2
Cable Construction：
- Conductor: solid or stranded copper conductors (Class 1 or 2)
- Insulation: PVC
- Sheath: PVC
- Specification
NYM Cable Specification
- Voltage rating (Uo/U): 0.6/1 kV
- Test Voltage: 3.5kV
- Permissible operating temperature of the conductor: +70°C
- Max. temperature during short circuit (≤5S): 160°C
- Temperature Range: -20°C to +70°C
- Cable laying temperature (not less than): 0℃
NYM Cable Datasheet
|
wire gauge
|
Number of cores x conductor
|
Nominal insulation
|
Nominal sheath
|
Nominal outer diameter
|
Nominal copper weight
|
Nominal cable weight
|
|
cross-sectional area mm
|
thickness mm
|
thickness mm
|
mm
|
kg/km
|
kg/km
|
|
|
16(solid)
|
1X1.5
|
0.6
|
1.4
|
5.4
|
14.4
|
40
|
|
16(solid)
|
2 X1.5
|
0.6
|
1.4
|
8.7
|
29
|
170
|
|
16(solid)
|
3 X1.5
|
0.6
|
1.4
|
9.1
|
43
|
135
|
|
16(solid)
|
4 X1.5
|
0.6
|
1.4
|
9.8
|
58
|
160
|
|
16(solid)
|
5 X1.5
|
0.6
|
1.4
|
10.3
|
72
|
190
|
|
16(solid)
|
7 X1.5
|
0.6
|
1.4
|
11.5
|
101
|
235
|
|
16(solid)
|
10 X1.5
|
0.6
|
1.4
|
13.8
|
144
|
330
|
|
16(solid)
|
12 X1.5
|
0.6
|
1.4
|
14.4
|
173
|
405
|
|
14(solid)
|
1 X2.5
|
0.7
|
1.4
|
6
|
24
|
70
|
|
14(solid)
|
3 X2.5
|
0.7
|
1.4
|
10.4
|
72
|
190
|
|
14(solid)
|
4 X2.5
|
0.7
|
1.4
|
11.3
|
96
|
230
|
|
14(solid)
|
5 X2.5
|
0.7
|
1.4
|
12
|
120
|
270
|
|
14(solid)
|
7 X2.5
|
0.7
|
1.6
|
13.2
|
168
|
342
|
|
12(solid)
|
1X4
|
0.8
|
1.6
|
6.6
|
38
|
80
|
|
12(solid)
|
3 X4
|
0.8
|
1.6
|
12
|
115
|
258
|
|
12(solid)
|
4 X4
|
0.8
|
1.6
|
13
|
154
|
330
|
|
12(solid)
|
5 X4
|
0.8
|
1.6
|
14.5
|
192
|
410
|
|
10(solid)
|
1X6
|
0.8
|
1.6
|
7.2
|
58
|
105
|
|
10(solid)
|
3 X6
|
0.8
|
1.6
|
13
|
173
|
320
|
|
10(solid)
|
4 X6
|
0.8
|
1.6
|
15.1
|
230
|
460
|
|
10(solid)
|
5 X6
|
0.8
|
1.6
|
16.1
|
288
|
540
|
|
8(solid)
|
1X10
|
1
|
1.6
|
8.4
|
96
|
155
|
|
8(solid)
|
4 X10
|
1
|
1.6
|
17.6
|
384
|
680
|
|
8(solid)
|
5 X10
|
1
|
1.6
|
19.2
|
480
|
850
|
|
6(7/14)
|
1X16
|
1.2
|
1.8
|
9.9
|
154
|
230
|
|
6(7/14)
|
4 X16
|
1.2
|
1.8
|
21.3
|
614
|
1048
|
|
6(7/14)
|
5 X16
|
1.2
|
1.8
|
23.4
|
768
|
1280
|
|
4(7/12)
|
1×25
|
1.4
|
2
|
12
|
240
|
325
|
|
4(7/12)
|
4X25
|
1.4
|
2
|
25.8
|
960
|
1649
|
|
4(7/12)
|
5 X25
|
1.4
|
2
|
28.7
|
1200
|
1970
|
|
2(7/10)
|
4X35
|
1.4
|
2
|
28.5
|
1344
|
2000
|
