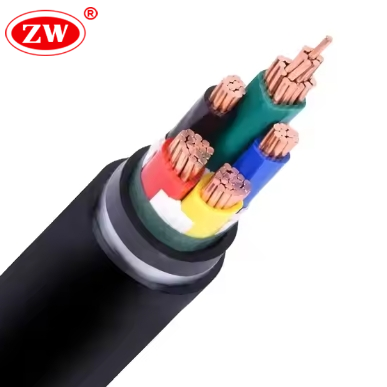

PVC Insulated and Sheathed STA NYBY Cable
- According to IEC 60502, DIN VDE 0276-603
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
5
NYBY Cable is a PVC insulated and sheathed low voltage cable. It is also reinforced with galvanized steel tape armor to provide mechanical protection against external forces as well as protection against crushing and rodent damage. It is suitable for transmission and distribution lines with rated voltages of 0.6/1 KV and below. NYBY low voltage cable is chemically stable, resistant to acids, alkalis, oils and organic solvents and offers significant advantages in terms of electrical insulation properties and cost effectiveness.
Applications
NYBY electrical cables meet the stringent requirements of factories, power stations and industrial environments to provide an uninterrupted supply of power to machines and equipment. NYBY cables are suitable for installation in buildings, cable ducts as well as for burial in the ground.
Construction
- Conductor: Class 1 solid or Class 2 stranded copper
- Insulation: PVC (Polyvinyl chloride)
- Filler: PVC (Polyvinyl chloride)
- Armour: Double galvanized steel tape
- Outer Sheath: PVC (Polyvinyl chloride)
- Outer Sheath Color: Black
NYBY Cable Specification
- Voltage rating (Uo/U): 0.6/1 kV
- Test Voltage: 3.5kV
- Permissible operating temperature of the conductor: +70°C
- Max. temperature during short circuit (≤5S): 160°C
- Cable laying temperature (not less than): -5℃
- Min. Bending radius: 12x
NYBY Cable Datasheet
| Number of cores and nominal cross section |
Overall diameter appr. |
Cable weight appr. | Max. DC Resistance at 20℃ |
Max. Current Carrying Capacity at 30℃ | |
| (mm²) | (mm) | (kg/km) | (ohm/km) | in air | in ground |
| 2 x 6 | 17.0 | 480 | 3.080 | 52 | 61 |
| 2 x 10 | 20.0 | 700 | 1.830 | 64 | 74 |
| 2 x 16 | 21.0 | 800 | 1.150 | 82 | 96 |
| 2 x 25 | 25.5 | 1200 | 0.727 | 94 | 102 |
| 2 x 35 | 27.5 | 1530 | 0.524 | 115 | 125 |
| 2 x 50 | 32.0 | 2000 | 0.387 | 140 | 147 |
| 2 x 70 | 38.0 | 2290 | 0.268 | 180 | 178 |
| 3 x 6 | 19.0 | 600 | 3.080 | 52 | 61 |
| 3 x 10 | 21.0 | 800 | 1.830 | 67 | 79 |
| 3 x 16 | 23.0 | 1150 | 1.150 | 85 | 99 |
| 3 x 25 | 27.0 | 1550 | 0.727 | 105 | 116 |
| 3 x 35 | 30.0 | 1950 | 0.524 | 130 | 138 |
| 3 x 50 | 34.0 | 2260 | 0.387 | 160 | 165 |
| 3 x 70 | 39.0 | 2860 | 0.268 | 200 | 205 |
| 3 x 95 | 45.0 | 3900 | 0.193 | 245 | 245 |
| 3 x 120 | 49.0 | 4900 | 0.153 | 285 | 280 |
| 3 x 150 | 54.0 | 5890 | 0.124 | 325 | 315 |
| 3 x 185 | 57.0 | 8320 | 0.099 | 370 | 355 |
| 3 x 240 | 64.0 | 10710 | 0.075 | 435 | 415 |
| 3 x 300 | 71.0 | 13085 | 0.060 | 500 | 465 |
| 4 x 6 | 20.0 | 660 | 3.080 | 45 | 53 |
| 4 x 10 | 22.0 | 950 | 1.830 | 58 | 68 |
| 4 x 16 | 25.0 | 1400 | 1.150 | 80 | 89 |
| 4 x 25 | 30.0 | 1900 | 0.727 | 105 | 116 |
| 4 x 35 | 32.5 | 2400 | 0.524 | 130 | 138 |
| 4 x 50 | 39.0 | 2950 | 0.387 | 160 | 165 |
| 4 x 70 | 43.0 | 3900 | 0.268 | 200 | 205 |
| 4 x 95 | 44.0 | 5050 | 0.193 | 245 | 250 |
| 4 x 120 | 47.5 | 6300 | 0.153 | 285 | 290 |
| 4 x 150 | 52.5 | 7650 | 0.124 | 325 | 315 |
| 4 x 185 | 58.0 | 9425 | 0.099 | 370 | 355 |
| 4 x 240 | 64.5 | 11985 | 0.075 | 435 | 415 |
| 4 x 300 | 70.5 | 14745 | 0.060 | 500 | 465 |
