NHXMH-J/NHXMH-O Installation Cable
- According to UL/CE/RoHS Standard
- Approved by CE, UL
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Low Voltage
5
- Product Details

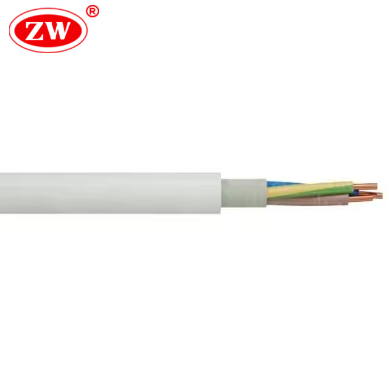

NHXMH cables are VDE-certified, halogen-free power and installation cables engineered for enhanced safety in the event of a fire. Their construction features a solid or stranded bare copper conductor, cross-linked polyethylene (XLPE) core insulation, and a robust, flame-retardant thermoplastic outer sheath, with a halogen-free filler compound used in multi-core versions. These cables are specifically designed for fixed wiring in buildings with a high concentration of people or valuable assets, suitable for installation in dry, damp, or wet environments, including on, in, or under plaster and within masonry or concrete. The primary distinction between the variants lies in the core configuration: the NHXMH-J type includes a green/yellow protective earth conductor, while the NHXMH-O type does not.
Key Features：
- Strong current load capacity and long service life.
- Good flexibility, not easy to break, and in the use of more convenient and fast.
- Fire Performance: Engineered for maximum safety, this cable provides superior protection in the event of a fire. Its performance is verified against key international standards, ensuring it is highly flame-retardant to limit fire propagation (IEC 60332-3-24), halogen-free to prevent the release of toxic and corrosive gases (IEC 60754-1 / IEC 60754-2), and produces very low smoke density to maintain visibility for safe evacuation (IEC 61034-2).
- VDE Certified and CPR Compliant: This cable is manufactured and tested in strict accordance with the German VDE 0250-214 standard, carrying the ◁VDE▷ mark as a guarantee of proven quality, safety, and reliability. Furthermore, it is fully compliant with the European Construction Products Regulation (CPR).
- Specification
- Nominal Voltage (Uo/U): 300/500V
- Test Voltage: 2000V AC
- Permissible operating temperature of the conductor: +70°C
- Max. temperature during short circuit (≤5S): 250°C
- Temperature Range: Fixed: -30°C to +70°C; Flexing: -5°C to +50°C
- Cable laying temperature (not less than): -5℃
- Minimum Bending Radius: Fixed Installation: 4 x Overall Diameter

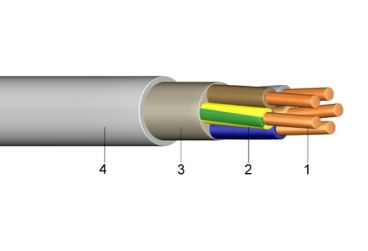

- Construction
- Conductor: 1.5mm2 to 10mm2 : Class 1 solid Copper; 16mm2 to 25mm2 : Class 2 stranded Copper
- Insulation: XLPE (Cross-Linked Polyethylene)
- Filler: Halogen-free compound
- Outer Sheath: Halogen-free polymer, Grey
- Parameter
|
Number of Cores and Nominal Cross Section mm2 |
Stranded Conductor Type
|
Overall Diameter appr.
mm |
Copper Figure kg/km |
Nominal Cable Weight appr.
kg/km |
|
1 x 1.5
|
re
|
7
|
15
|
49
|
|
1 x 2.5
|
re
|
7.6
|
24
|
60
|
|
1 x 4.0
|
re
|
8.6
|
39
|
80
|
|
1 x 6.0
|
re
|
9.9
|
58
|
111
|
|
1 x 10.0
|
re
|
11.2
|
96
|
160
|
|
1 x 16.0
|
re
|
11.9
|
154
|
232
|
|
2 x 1.5
|
re
|
8.9
|
29
|
110
|
|
2 x 2.5
|
re
|
10
|
48
|
136
|
|
2 x 4.0
|
re
|
11.4
|
77
|
202
|
|
3 x 1.5
|
re
|
9.4
|
43
|
130
|
|
3 x 2.5
|
re
|
10.4
|
72
|
163
|
|
3 x 4.0
|
re
|
11.8
|
115
|
235
|
|
3 x 6.0
|
re
|
13.4
|
173
|
323
|
|
3 x 10.0
|
re
|
16
|
288
|
485
|
|
3 x 16.0
|
re
|
19.7
|
461
|
850
|
|
3 x 25.0
|
rm
|
24.3
|
720
|
1152
|
|
3 x 35.0
|
sm
|
27.2
|
1008
|
1503
|
|
4 x 1.5
|
re
|
10.2
|
58
|
151
|
|
4 x 2.5
|
re
|
11.3
|
96
|
200
|
|
4 x 4.0
|
re
|
13.3
|
154
|
300
|
|
4 x 6.0
|
re
|
14.8
|
230
|
400
|
|
4 x 10.0
|
re
|
17.4
|
384
|
603
|
|
4 x 16.0
|
re
|
21.6
|
615
|
940
|
|
4 x 25.0
|
rm
|
27
|
960
|
1432
|
|
4 x 35.0
|
sm
|
29.9
|
1344
|
1930
|
|
5 x 1.5
|
re
|
10.8
|
72
|
177
|
|
5 x 2.5
|
re
|
11.9
|
120
|
238
|
|
5 x 4.0
|
re
|
14.8
|
192
|
345
|
|
5 x 6.0
|
re
|
16
|
288
|
475
|
|
5 x 10.0
|
re
|
18.9
|
480
|
720
|
|
5 x 16.0
|
re
|
23.8
|
768
|
1142
|
|
5 x 25.0
|
rm
|
29
|
1200
|
1800
|
|
5 x 35.0
|
rm
|
32.7
|
1680
|
2490
|
|
7 x 1.5
|
re
|
11.4
|
101
|
209
|
|
7 x 2.5
|
re
|
13.5
|
168
|
300
|
