N2XCY 0.6/1kV XLPE Insulated PVC Sheathed Cable
- According to IEC 60502-1, DIN VDE 0276-603
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
5

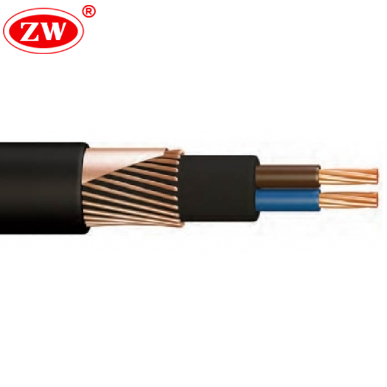

N2XCY cables are low voltage cables for transmission and distribution lines with AC rated voltages Uo/U up to 0.6/1kV. The cable is PVC sheathed and XLPE insulated to provide flame retardancy and a maximum conductor operating temperature of 90 °C. N2XCY electrical cables with concentric conductors made of copper wires and tapes can be used as neutral, protective or earthing conductors. In case of possible damage caused by excavation, it also serves as protection against contact voltage in case of severe damage to the insulation.
Application
N2XCY power cables are suitable for fixed installations in indoor and outdoor low-voltage power systems. For indoor installation, the control cable is used in power stations, industrial plants and switching stations; as an underground cable, it is used where installation is difficult and lightweight. It is also suitable for use in environments where there may be a risk of mechanical damage but where the cable is not subjected to systematic mechanical stress or large tensile strains.

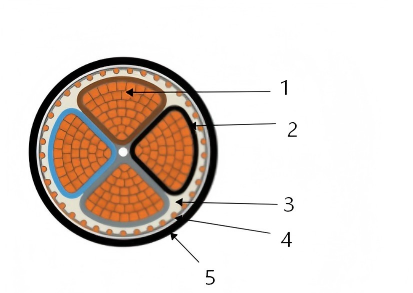

Construction
- Conductor: Class 2 Stranded Copper
- Insulation: XLPE (Cross-Linked Polyethylene)
- Filler: PVC (Polyvinyl chloride)
- Concentric Conductor: Copper Wires and Copper Tape
- Outer Sheath: PVC (Polyvinyl chloride)
- Outer Sheath Color: Black
N2XCY Cable Specification
- Voltage rating (Uo/U): 0.6/1 kV
- Test Voltage: 3.5kV
- Permissible operating temperature of the conductor: +90°C
- Max. temperature during short circuit (≤5S): 250°C
- Cable laying temperature (not less than): -5℃
- Min. Bending radius: 15x
N2XCY Cable Datasheet
Number of cores and nominal cross section (mm²) |
Overall diameter appr. (mm) |
Copper Weight (kg/km) | Cable weight appr. (kg/km) |
2 X 1.5 re / 1.5 | 13 | 53 | 205 |
2 X 2.5 re / 2.5 | 13.5 | 80 | 270 |
2 X 4 re / 4 | 15.5 | 123 | 360 |
2 X 6 re / 6 | 17 | 182 | 435 |
2 X 10 re / 10 | 19.5 | 312 | 590 |
2 X 16 re / 16 | 20.5 | 489 | 890 |
3 X 1.5 re / 1.5 | 13.5 | 66 | 225 |
3 X 2.5 re / 2.5 | 14.5 | 104 | 290 |
3 X 4 re / 16 | 16.5 | 161 | 400 |
3 X 6 re / 6 | 17.5 | 240 | 510 |
3 X 10 re / 10 | 20 | 408 | 850 |
3 X 16 re / 16 | 23 | 643 | 1080 |
3 X 25 rm / 16 | 25,1 | 902 | 1295 |
3 X 25 rm / 25 | 25 | 1003 | 13785 |
3 X35 sm / 16 | 25.1 | 1190 | 1441 |
3 X 35 sm / 35 | 25.4 | 1402 | 1619 |
3 X 50 sm / 25 | 27.3 | 1723 | 1902 |
3 X 50 sm / 50 | 27.7 | 2000 | 2107 |
3 X 70 sm / 35 | 32.2 | 2410 | 2700 |
3 X 70 sm / 70 | 32.7 | 279630 | 3005 |
3 X 95 sm / 50 | 35.3 | 3296 | 3588 |
3 X 95 sm / 50 | 35.8 | 3791 | 4017 |
3 X 120 sm / 120 | 38.9 | 4786 | 4998 |
3 X 120 sm / 70 | 38.9 | 4236 | 4534 |
3 X 150 sm / 120 | 43.4 | 5970 | 5937 |
3 X 150 sm / 70 | 43.4 | 5100 | 5473 |
3 X 185 sm 95 | 47.4 | 6383 | 6831 |
3 X 240 sm / 120 | 52.5 | 8242 | 8809 |
4 X 1.5 re / 1.5 | 14.5 | 81 | 260 |
4 X 2.5 re / 2.5 | 15.5 | 128 | 350 |
4 X 4 re / 4 | 17 | 200 | 470 |
4 X 6 re / 6 | 18.5 | 297 | 590 |
4 X 10 re / 10 | 21 | 504 | 900 |
4 x 16 re / 16 | 23 | 796 | 1250 |
4 X 25 re / 16 | 27.2 | 1142 | 1559 |
4 X 35 sm / 13 | 27.2 | 1526 | 1812 |
4 X 50 sm / 25 | 30.6 | 2203 | 2413 |
4 X 70 sm / 35 | 35.9 | 3082 | 3420 |
4 X 95 sm / 50 | 39.5 | 4208 | 4561 |
4 X 120 sm / 16 | 44.5 | 5388 | 5819 |
4 X 150 sm / 70 | 48.6 | 6540 | 6972 |
5 X 1.5 re / 1.5 | 15 | 95 | 330 |
5 X 2.5 re / 2.5 | 16 | 152 | 400 |
5 X 4 re /4 | 19 | 238 | 560 |
5 X 6 re / 6 | 21 | 355 | 710 |
5 X 10 re / 10 | 23 | 600 | 1000 |
5 X 16 re / 16 | 24.3 | 931 | 1233 |
