PVC Insulated Copper Conductor MCMK Cable
- According to IEC,EN Standard
- Place of Origin: Henan, China
- Number of Cores: 2, 3, 4,5
- HS Code: 8544492100
- MOQ: 300 Meters
5
The MCMK Cable is a multi-purpose low-voltage (0.6/1kV) power and control cable designed and manufactured in accordance with the Finnish standard SFS 4880. Its concentric conductor provides excellent mechanical protection, making it suitable for direct burial in the ground without the need for additional protective conduits in most applications. MCMK cable with PVC insulation and anti-ultraviolet PVC sheath can be excellent resistance to common environmental and chemical stress. For example, permanent outdoor installation in direct sunlight. MCMK is certified for indoor, outdoor and underground fixed installations. It can be used as a durable and cost-effective solution for the distribution of mains, sub-mains, and final circuit distribution in industrial, commercial, and residential projects.
Key Features：
- Flame retardant EN 60332-3-23, halogen free EN 60754-2, low smoke EN 61034-2

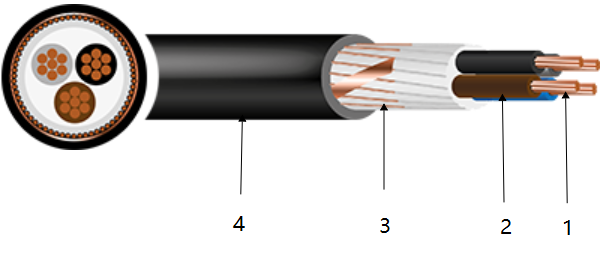

Cable Construction：
- Conductor Material: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Concentric screen: Copper wires and copper tape
- Outer sheath: PVC (Polyvinyl Chloride); Black
Core Identification:
2-core: blue, brown
3-core: brown, black, grey
4-core: Blue, brown, black, grey
MCMK Cable Specification:
- Voltage rating (Uo/U): 0.6/1 kV
- Test Voltage:4000 V
- Temperature Range: -15°C to 70°C (operation)
- Max. temperature during short circuit (≤5S): 160°C
- Min. Bending radius: 10 x overall diameter
MCMK Cable Datasheet:
| No. of Cores | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 2 | 1.5/1.5 | 13 | 190 |
| 2 | 2.5/2.5 | 14 | 230 |
| 2 | 6/6 | 18 | 400 |
| 2 | 10/10 | 21 | 580 |
| 3 | 1.5/1.5 | 13 | 170 |
| 3 | 2.5/2.5 | 13 | 210 |
| 3 | 6/6 | 17 | 390 |
| 3 | 10/10 | 21 | 590 |
| 3 | 16/16 | 23 | 850 |
| 3 | 25/16 | 28 | 1170 |
| 3 | 35/16 | 27 | 1420 |
| 3 | 50/25 | 30 | 1950 |
| 3 | 70/35 | 33 | 2640 |
| 3 | 95/50 | 37 | 3620 |
| 3 | 120/70 | 41 | 4530 |
| 3 | 150/70 | 44 | 5430 |
| 3 | 185/95 | 50 | 6880 |
| 3 | 240/120 | 56 | 8940 |
| 4 | 1.5/1.5 | 13 | 190 |
| 4 | 2.5/2.5 | 14 | 250 |
| 4 | 6/6 | 19 | 480 |
| 4 | 10/10 | 22 | 720 |
| 4 | 16/16 | 25 | 1050 |
| 4 | 25/16 | 30 | 1460 |
| 4 | 35/16 | 29 | 1800 |
| 4 | 50/25 | 33 | 2500 |
| 4 | 70/35 | 36 | 3360 |
| 4 | 95/50 | 41 | 4600 |
| 4 | 120/70 | 44 | 5730 |
| 4 | 150/70 | 48 | 6930 |
| 4 | 185/95 | 56 | 8800 |
| 4 | 240/120 | 62 | 11460 |
