Cabo LVAV
- According to IEC and GB Standard
- Place of Origin: Henan, China
- In Stock
- Number of Cores:1, 2, 3, 4 , 5
- HS Code: 8544492100
0.8～4.9 $ / Meter
5
- Product Details

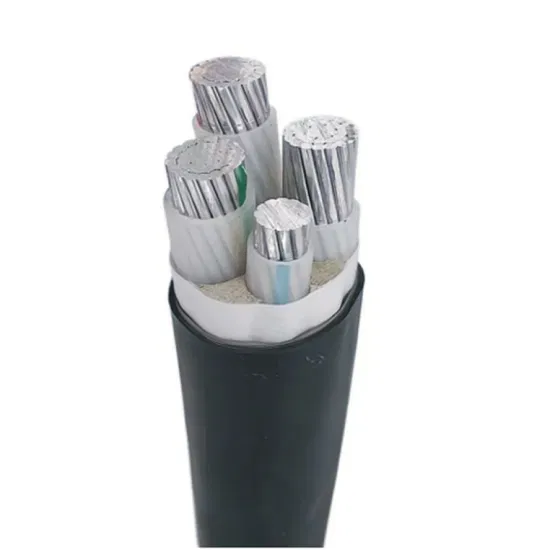

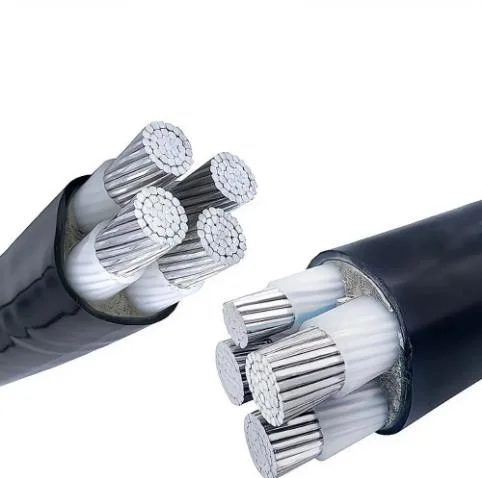

LVAV is aluminum core cross-linked polyethylene insulated PVC sheathed electrical cable. The conductor for cabo lvav is aluminum class 2. The insulation is XLPE and sheath is PVC. Lvav cabo is suitable for indoor, trench, and pipeline. It can also be buried in the soil, but can not withstand large mechanical external forces.
- Specification
- Test voltage 3.5 kV a.c. 5 minutes
- Maximum temperature of the conductor in steady state 70ºC
- Maximum temperature of the conductor in short-circuit condition 160ºC (t≤5s)
- Minimum bending radius at installation (mm) 12 xd
- Maximum pulling effort (N) with sleeve on conductors: 30 x S
- Construction
- Conductor: Aluminum (class 2)
- Insulation: XLPE
- Outer Sheath: PVC
- Parameter
|
Nominal cross sectional area
|
Approximate outer diameter
|
Approx.
weight |
Max.D.C resistance of conductor(20℃)
|
Current carrying capacity
|
|
|
mm2
|
mm
|
kg/km
|
Ω/km
|
In Air(A)
|
In Ground(A)
|
|
4*10
|
21.5
|
597
|
3.08
|
38
|
54
|
|
4*16
|
24.1
|
747
|
1.91
|
51
|
71
|
|
4*25
|
28.1
|
989
|
1.2
|
66
|
92
|
|
4*35
|
29.8
|
1166
|
0.868
|
81
|
110
|
|
4*50
|
34.6
|
1537
|
0.641
|
98
|
130
|
|
4*70
|
40
|
2327
|
0.443
|
120
|
160
|
|
4*95
|
45.4
|
2951
|
0.32
|
150
|
195
|
|
4*120
|
49.5
|
3498
|
0.253
|
180
|
225
|
|
4*150
|
54.4
|
4192
|
0.206
|
205
|
250
|
|
4*185
|
60
|
5035
|
0.164
|
235
|
285
|
|
4*240
|
66.9
|
6229
|
0.125
|
280
|
330
|
FAQ
What is the voltage rating of Cabo LVAV?
This cable is designed for Low Voltage (LV) applications, typically rated at 0.6/1 kV (600/1000V). It is suitable for mains power supply but not for high-voltage transmission.
What is the primary application of Cabo LVAV?
It is used for low voltage power distribution in industrial plants, urban networks, and residential areas. It is suitable for installation indoors, in concrete trenches
Can Cabo LVAV be buried directly in the ground?
Yes, Cabo LVAV (Low Voltage Armoured/Armoured Cable) is designed to be buried directly in the ground, provided it meets specific regulatory standards for direct burial
