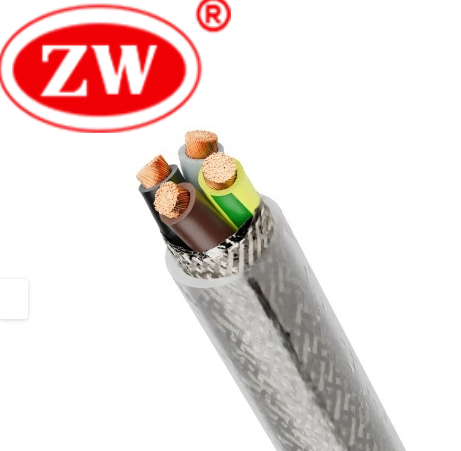

2YSLCY Cable for VFD & Servo Motor | EMC Shielded Motor Cable
- Rated Voltage: 0.6/1kV
- Conductor: Class 5 Flexible Copper (IEC 60228)
- Insulation: PE
- Sheath: PVC
- Shield: Aluminum foil + tinned copper braid
- EMC Performance: High interference suppression capabilit
- MOQ: 300 Meters
- Price: Contact for quotation
5
- Product Details
2YSLCY cable is designed for power transmission between frequency converters and AC motors in industrial automation systems. The cable structure is optimized for environments where inverter switching operations generate electromagnetic interference that may affect motor performance and nearby electronic equipment. Unlike standard motor cables, 2YSLCY integrates PE insulation with dual-layer shielding to improve EMC performance in variable frequency drive (VFD) systems. It is suitable for industrial installations requiring stable torque output, reduced electrical noise, and reliable long-term operation in automation environments.
Typical applications include:
- Frequency converter (VFD) motor connections
- Servo motor drive system
- Industrial automation production lines
- Conveyor and material handling systems
- Industrial pumps and ventilation systems
- HVAC frequency control systems
- Mechanical manufacturing equipment
- Power distribution in industrial facilities
- Plant engineering and machinery systems
The cable is especially suitable where inverter-generated EMI may affect surrounding equipment stability or signal integrity.
- Specification
Temperature Range (Fixed installation): -30°C to +70°C
Temperature Range (Flexible use): -5°C to +70°C
Max. Conductor Temperature: +70°C
Short-Circuit Temperature: +160°C (max. 5 seconds)
Minimum Bending Radius: 7.5 × cable diameter
EMC Performance: High level EMI suppression capability
Standards Compliance:
- IEC 60228 Class 5 (Conductor)
- HD 308 S2 (Core Identification)
- DIN VDE 0207 (PVC compound)
- DIN VDE 0281 (Cable construction)
- EN 55011 (EMC compliance requirement)

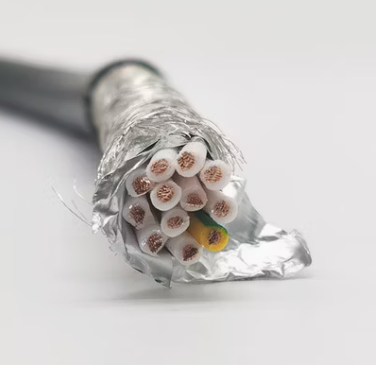

- Construction
- Conductor : Copper conductor (Class 5)
- Insulation: PE (low dielectric constant material for reduced capacitance)
- Shielded: Aluminum foil + tinned copper braid
- Sheath: Industrial PVC compound
- Parameter
| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) | |
|---|---|---|---|---|---|
| 2YSLCY-JB / 4-core version – transparent outer sheath | |||||
|
0036425
|
4 G 1.5 | 11.4 | 95 | 230 | |
|
0036426
|
4 G 2.5 | 12.4 | 150 | 300 | |
|
0036427
|
4 G 4.0 | 15.6 | 235 | 485 | |
|
0036428
|
4 G 6.0 | 17 | 320 | 630 | |
|
0036429
|
4 G 10.0 | 19.6 | 533 | 860 | |
|
0036430
|
4 G 16.0 | 22.1 | 789 | 1290 | |
|
0036431
|
4 G 25.0 | 26.3 | 1236 | 1860 | |
|
0036432
|
4 G 35.0 | 29.5 | 1662 | 2610 | |
|
0036433
|
4 G 50.0 | 35.8 | 2345 | 2950 | |
|
0036434
|
4 G 70.0 | 40.3 | 3196 | 3950 | |
|
0036435
|
4 G 95.0 | 46.5 | 4316 | 5300 | |
|
0036436
|
4 G 120.0 | 53.2 | 5435 | 6600 | |
|
0036437
|
4 G 150.0 | 57.3 | 6394 | 7590 | |
|
0036438
|
4 G 185.0 | 62.3 | 7639 | 9420 | |
| 2YSLCY-JB BK / 4-core version – black outer sheath | |||||
|
1136450
|
4 G 1.5 | 11.4 | 95 | 230 | |
|
1136451
|
4 G 2.5 | 12.4 | 150 | 300 | |
|
1136452
|
4 G 4.0 | 15.6 | 235 | 485 | |
|
1136453
|
4 G 6.0 | 17 | 320 | 630 | |
|
1136454
|
4 G 10.0 | 19.6 | 533 | 860 | |
|
1136455
|
4 G 16.0 | 22.1 | 789 | 1290 | |
|
1136456
|
4 G 25.0 | 26.3 | 1236 | 1860 | |
|
1136457
|
4 G 35.0 | 29.5 | 1662 | 2610 | |
|
1136458
|
4 G 50.0 | 35.8 | 2345 | 2950 | |
|
1136459
|
4 G 70.0 | 40.3 | 3196 | 3950 | |
|
1136460
|
4 G 95.0 | 46.5 | 4316 | 5300 | |
|
1136461
|
4 G 120.0 | 53.2 | 5435 | 6600 | |
|
1136462
|
4 G 150.0 | 57.3 | 6394 | 7590 | |
|
1136463
|
4 G 185.0 | 62.3 | 7639 | 9420 | |
| ÖLFLEX® SERVO 2YSLCYK-JB / 3+3 core version – black outer sheath, cold flexible | |||||
|
0036439
|
3 X 1,5 + 3 G 0,25 | 11.4 | 88 | 140 | |
|
0036440
|
3 X 2,5 + 3 G 0,5 | 12.2 | 144 | 230 | |
|
0036441
|
3 X 4 + 3 G 0,75 | 14.4 | 224 | 323 | |
|
0036442
|
3 X 6 + 3 G 1,0 | 15.7 | 276 | 420 | |
|
0036443
|
3 X 10 + 3 G 1,5 | 18 | 491 | 635 | |
|
0036444
|
3 X 16 + 3 G 2,5 | 20.2 | 723 | 930 | |
|
0036445
|
3 X 25 + 3 G 4 | 23.8 | 1136 | 1350 | |
|
0036446
|
3 X 35 + 3 G 6 | 26.9 | 1535 | 1780 | |
|
0036447
|
3 X 50 + 3 G 10 | 32.6 | 2156 | 2530 | |
|
0036448
|
3 X 70 + 3 G 10 | 36.4 | 2871 | 3225 | |
|
0036449
|
3 X 95 + 3 G 16 | 42 | 3953 | 4511 | |
|
0036450
|
3 X 120 + 3 G 16 | 47.8 | 4836 | 5663 | |
|
0036451
|
3 X 150 + 3 G 25 | 51.6 | 5412 | 6720 | |
|
0036479
|
3 X 185 + 3 G 35 | 56.5 | 7041 | 7855 | |
|
0036453
|
3 X 240 + 3 G 50 | 65.1 | 8986 | 9770 | |
