2XSLCH-J | 0.6/1kV LSZH Cable
- Product Type: 2XSLCH-J EMC motor cable
- Rated Voltage: 0.6/1kV
- Conductor: Class 5 flexible copper, IEC 60228
- Insulation: XLPE
- Sheath: LSZH / HFFR compound
- Shield: Aluminum/PET tape + tinned copper braid
- Use: Inverter, servo and EMC motor circuits
- MOQ: 300 meters
5
- Product Details

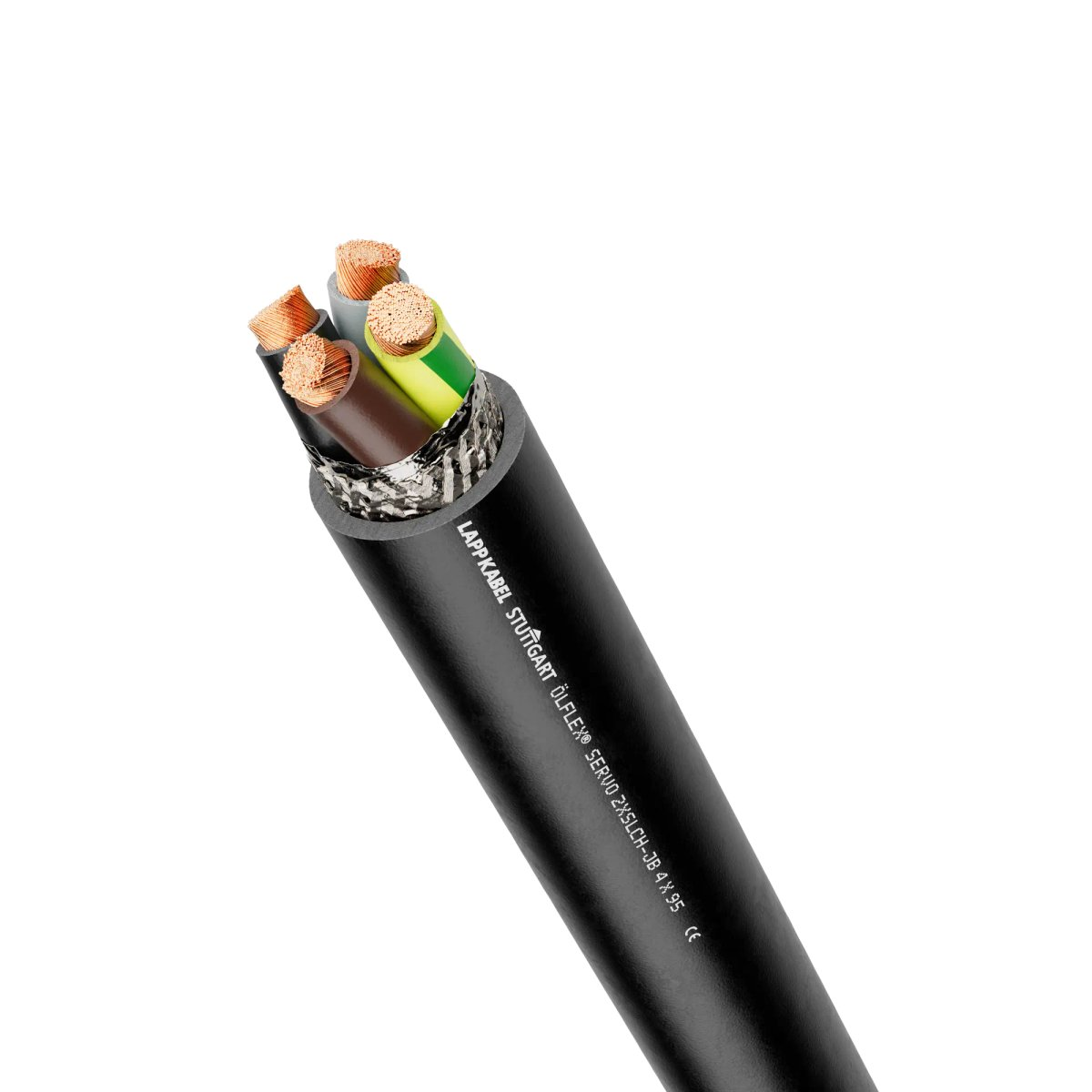

2XSLCH-J is a 0.6/1kV halogen-free EMC motor cable used on the output side of inverter and servo drive systems. The cable has Class 5 flexible copper conductors, XLPE insulation, aluminum/PET tape, tinned copper braid screening and a black LSZH outer sheath. The “J” type includes a green/yellow protective earth core.
In a drive installation, 2XSLCH-J carries motor power and helps control electrical noise around the cable route. XLPE insulation keeps capacitance lower than many PVC motor cables. The foil and braid screen provide EMC protection when the screen is terminated correctly at the drive cabinet and motor end.
This cable is normally selected for fixed installation or occasional movement. It should not be used as a continuous drag-chain cable. If the cable route is long, check the drive manufacturer’s maximum motor cable length and whether an output filter is required.
Typical applications include:
- Industrial pumps and fans
- Conveyor systems
- Packaging machines
- CNC and machine tools
- HVAC drive equipment
- Compressors and ventilation units
- Automated production lines
- Motor feeders from control cabinets
Installation notes: If nearby sensors, encoders or communication cables are affected by noise, check the screen termination first. The braid should make 360-degree contact through an EMC gland or shield clamp. A long pigtail earth connection weakens high-frequency shielding. For larger drives or longer feeders, compare the standard 4G version with the 3+3 symmetrical grounding version before ordering.
- Specification
2XSLCH-J Cable Specification：
- Rated Voltage U0/U: 600/1000V
- Maximum AC Operating Voltage: 700V conductor/earth; 1200V conductor/conductor
- Maximum DC Operating Voltage: 900V conductor/earth; 1800V conductor/conductor
- Test Voltage: 4000V
- Conductor Operating Temperature: +90°C
- Short-Circuit Temperature: +250°C
- Installation Temperature: -5°C to +90°C
- Fixed Installation Temperature: -40°C to +90°C
- Minimum Bending Radius, Fixed: 5 x D below 12mm; 7.5 x D from 12-20mm; 10 x D above 20mm
- Minimum Bending Radius, Dynamic: 10 x D below 12mm; 15 x D from 12-20mm; 20 x D above 20mm
- Flame Retardant: IEC 60332-1-2
- Halogen-Free / Low Corrosive Gas: IEC 60754-2
- Low Smoke Density: IEC 61034
- EMC Reference: EN 55011 / DIN VDE 0875-11
- UV / Weather Resistance: Suitable for outdoor use within temperature limits
- CPR Classification: Cca-s1a,d1,a1 available by manufacturer/version
- Construction

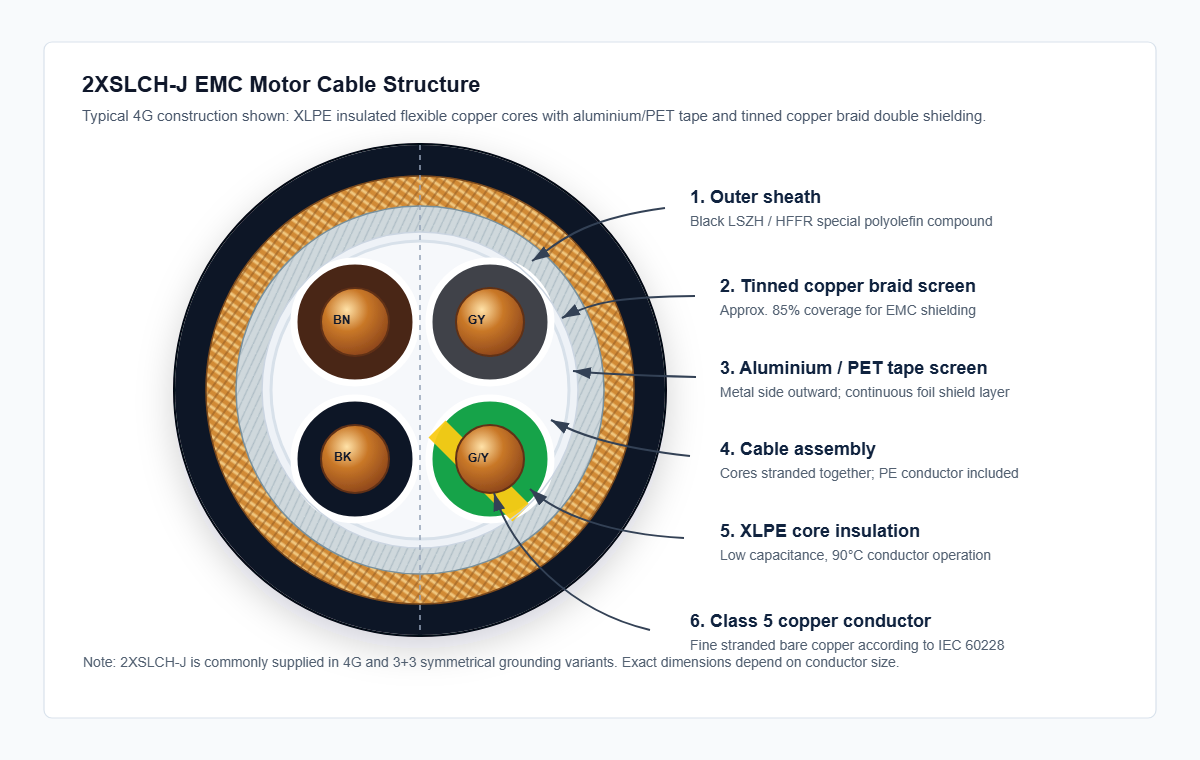

2XSLCH-J Cable Construction：
- Conductor: Fine stranded bare copper, Class 5
- Core Insulation: XLPE
- Core Identification: Brown, black, grey, green/yellow
- Core Assembly: Cores stranded together
- First Screen: Aluminum/PET tape
- Second Screen: Tinned copper wire braid
- Outer Sheath: Black LSZH / HFFR compound
- Common Versions: 4G and 3+3 symmetrical grounding construction
- Parameter
| Number of conductors x cross-sectional area (n x mm²) | Outer diameter ± 5% (mm) | Weight (kg/km) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 G 1.5 | 11.4 | 230 | |||||||||
| 4 G 2.5 | 12.4 | 300 | |||||||||
| 4 G 4 | 15.6 | 485 | |||||||||
| 4 G 6 | 17 | 630 | |||||||||
| 4 G 10 | 19.6 | 860 | |||||||||
| 4 G 16 | 21.6 | 1290 | |||||||||
| 3×1.5+3G0.25 | 11.4 | 140 | |||||||||
| 3×2.5+3G0.50 | 12.2 | 220 | |||||||||
| 3×4+3G0.75 | 14.4 | 323 | |||||||||
| 3×6+3G1.0 | 15.7 | 420 | |||||||||
| 3×10+3G1.50 | 18 | 615 | |||||||||
| 3×16+3G2.50 | 20.2 | 819 | |||||||||
