NYAF Kablo
- According to IEC and VDE Standard
- Approved by CCC, CE
- Place of Origin: Henan, China
- In Stock
- Number of Cores:1
- HS Code: 8544492100
- Packing: 100 Meters
0.1~0.9 $ / Meter
5
- Product Details

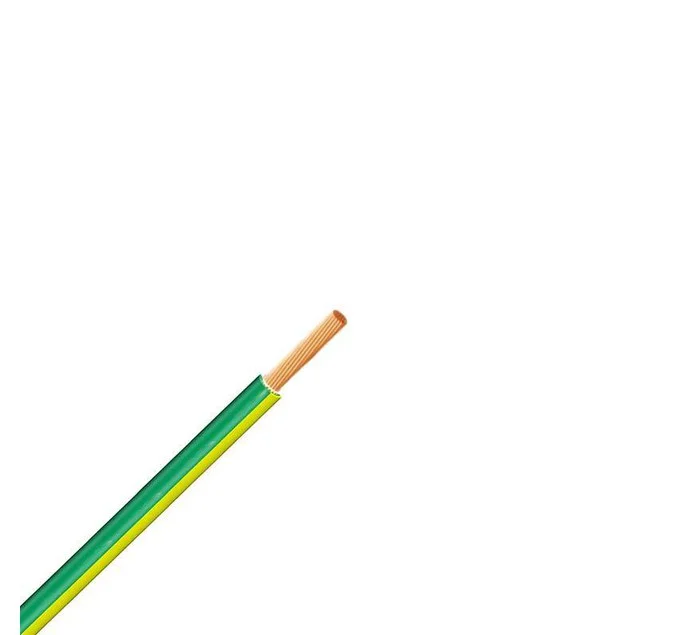

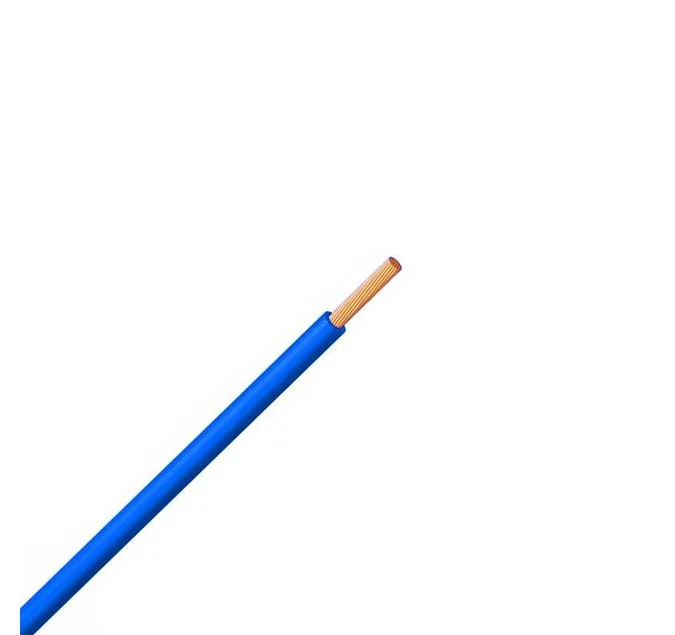

NYAF refers to a specific type of electrical wire with a stranded copper conductor class 5 and PVC insulation for 450/750 volts with flame retardant. NFYA is suitable for electrical installations in residential and commercial buildings, including lighting, electrical connections, etc. Nyaf cable also suitable for applications that require bending or moving due to its softness and flexibility.In China, kabel NYAF has characteristics similar to RV Cable.
- Specification
- Temperature range: -40℃ – +70℃
- Color: Red, black, blue, yellow, green, yellow/green, brown, white, gray, orange, purple
- Construction
- Conductor: Fine, stranded copper (Class 5).
- Insulation: PVC (Polyvinyl Chloride).
- Parameter
| Nominal Cross Section (mm2) | No/ Diameter of Conductor (mm) | Insulation Thickness(mm) | Max Outer Diameter(mm) | Ref. Weigth(kg/Km) |
| kabel nya 0.75mm | 16/0.2 | 0.6 | 2.8 | 11 |
| kabel nya 1.0mm | 32/0.2 | 0.6 | 3 | 13 |
| kabel nyaf 1.5mm | 30/0.25 | 0.7 | 3.5 | 19 |
| kabel nyaf 2.5mm | 50/0.25 | 0.8 | 4.2 | 30 |
| kabel nyaf 4mm | 56/0.3 | 0.8 | 4.8 | 46 |
| kabel nyaf 6mm | 84/0.3 | 0.8 | 6.3 | 67 |
| kabel nyaf 10mm | 80/0.4 | 1.0 | 7.6 | 121 |
| kabel nyaf 16mm | 128/0.4 | 1 | 8.8 | 173 |
| kabel nyaf 25mm | 200/0.4 | 1.2 | 11 | 268 |
| kabel nyaf 35mm | 280/0.4 | 1.2 | 12.5 | 370 |
| kabel nyaf 50mm | 400/0.4 | 1.4 | 14.5 | 526 |
FAQ
What is NYAF cable primarily used for?
NYAF is a fine-stranded flexible wire designed for internal wiring of switchboards, control panels, distributors, and automation systems.
What is the difference between NYAF and NYA cable?
The difference lies in the conductor class. NYA (H07V-U/R) uses a solid or rigid stranded conductor (Class 1 or 2). NYAF (H07V-K) uses a fine-stranded flexible copper conductor (Class 5), making it much easier to bend and route in tight spaces.
What is the rated voltage of NYAF cable?
For standard power sizes (1.5mm² and above), the rated voltage is 450/750V (U0/U). For smaller cross-sections (0.5mm² to 1.0mm²), the rating is typically 300/500V.
