H07Z-U Solid Copper Wire
- According to IEC and GB Standard
- Approved by CCC, CE
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details
The H07Z-U is a specialized low-voltage 450/750V single-core cable engineered for permanent, fixed installations. Distinguished by its solid conductor, it provides a rigid structure that—unlike stranded (H07Z-R) or flexible (H07Z-K) variants—is optimized for static routes where frequent bending is not required. Crucially, the cable features a flame-retardant, halogen-free (LSZH) outer sheath, which significantly reduces the generation of toxic gases and opaque smoke in the event of a fire. The enhanced safety profiles makes the H07Z-U the ideal solution for building wiring, industrial facilities, and fixed appliance connections where protecting human life and equipment is a priority.
- Manufactured in accordance with EN 50525-3-41
- Strong pressure resistance, bending resistance, not easy to break
- Acid-resistant and corrosion-resistant, high-temperature resistant, cold-resistant and freeze-resistant
- Enhanced safety in case of fire: low smoke (EN 61034-2), halogen-free (EN 60754-1, EN 60754-2), flame-retardant (EN 60332-1-2)
- Specification
- Rated voltage: 450/750 V
- Test Voltage: 2.5KV/5Min
- Temperature Range: +5°C to +90°C (Fixed)
- Max. short circuit temperature: 250°C
- maximum conductor temperature: 90°C
- Minimum installation temperature: -5°C
- Min. Bending Radius: 6 x Overall Diameter

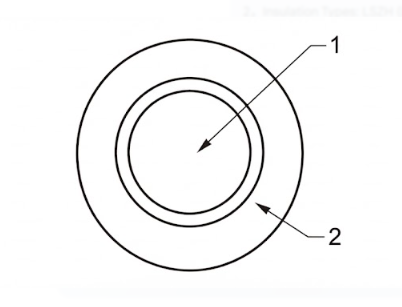

- Construction
- Conductor: Class 1 Solid Copper
- Insulation Types: LSZH (Low Smoke Zero Halogen)
- Core Identification: Red, Black, Blue, Yellow, Orange, White, Green/Yellow, Grey, Brown, Violet, Pink
- Parameter
|
Nominal cross section Area [mm²]
|
Nominal Stranding of conductor
[mm]
|
Nominal
thickness
insulation [mm]
|
Nominal outer diameter [mm]
|
Cable
weight
[kg/km]
|
Conductor resistance at 20°C
[Ohm/km]
|
|
1.5
|
1/1.38
|
0.8
|
3
|
22
|
13.3
|
|
2.5
|
7/1.78
|
0.8
|
3.7
|
33
|
7.98
|
|
4
|
1/2.25
|
0.9
|
4.2
|
48
|
4.95
|
|
6
|
7/1.05
|
0.9
|
4.8
|
68
|
3.3
|
|
10
|
7/1.35
|
1
|
6.3
|
120
|
1.91
|
|
16
|
7/1.7
|
1
|
6.9
|
175
|
1.21
|
|
25
|
7/2.1
|
1.2
|
8.4
|
260
|
0.78
|
|
35
|
19/1.5
|
1.2
|
9.5
|
350
|
0.554
|
|
50
|
19/1.78
|
1.4
|
11.2
|
475
|
0.386
|
FAQ
What is the difference between H07Z-U and H07V-U?
The key difference is the insulation. H07V-U is PVC, while H07Z-U is LSZH (Low Smoke Zero Halogen). You must use H07Z-U in public buildings (airports, hospitals) to ensure that, in the event of a fire, the cable does not emit toxic fumes or dense smoke.
What does the "U" stand for in H07Z-U?
The "U" indicates a Solid Copper Conductor (Class 1). Unlike flexible (-K) or stranded (-R) variants, H07Z-U is rigid. It is specifically designed for permanent, fixed wiring in switchboards, distribution panels, and conduits where high vibration or movement is not present.
How should H07Z-U be installed?
H07Z-U is a single-core, non-sheathed cable. It must be installed inside pipes, conduits, or closed trunking for mechanical protection. It is rated for 450/750V and is ideal for internal wiring of devices and lighting systems, but not for direct burial or outdoor exposure.
