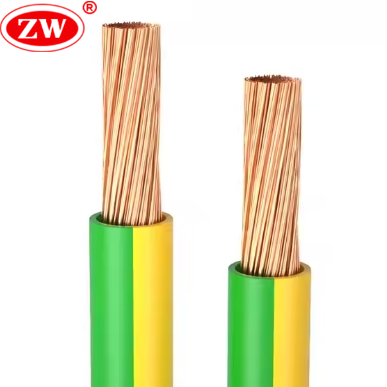

H07V-R is a multi-twisted PVC insulated cable with copper conductors according to VDE 0295/IEC 60228 Class 2. It is designed for fixed laying in dry or wet environments. The H07V-R single-core flexible cable is constructed with Class 2 stranded copper conductors and weather-resistant PVC insulation. Rated at 450/750V, it maintains stable performance in environments ranging from -15°C to +70°C. H07V-R electrical wire is mechanically stronger and more cost effective than flexible cables such as H07RN-F. H07V-R cables are suitable for fixed wiring and laying in power plants, internal wiring in construction sites, industrial and mining enterprises, and connection of electrical appliances such as lighting, electronic equipment, and instruments.

Product Features

1. Heat and radiation resistant, acid and alkali resistant, chemical corrosion resistant, waterproof
2. Stable electrical properties under high temperature (cold) environment; anti-aging
3. Flame retardant; long service life.
4. Low eccentricity of solid extrusion coating process, which can prevent the current from breaking through the circuit.

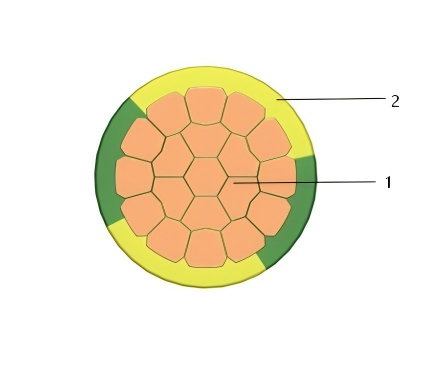

Cable Construction：

• Conductor: Stranded class 2 acc.VDE 0295 Class 2/1EC 60228 Class 2
• Insulation: PVC
• Sheath: PVC
• Sheath Color: Black, Blue, Grey, Red, Yellow, Brown, White Green/Yellow
