BVVB Cu Core/ PVC-Insulated Flat Cable
- According to IEC and GB Standard
- Approved by CCC, CE
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
0.1~2.0 $ / Meter
5
- Product Details
The full name of BVVB is copper core PVC insulated PVC sheathed flat cable. BVVB cables are a superior type of house wire and building cable. The BVVB electrical wire has the following characteristics and field of application:
Product Features:
- Flat double-core design: optimizes space utilization and facilitates installation.
When compared to RVVB (flexible cable), BVVB is more suitable for fixed installations. Compared to BVV (round cable), BVVB is more advantageous in terms of space utilization and visualization. Especially in decorative installations where flat wiring is required. - Corrosion and cold resistance: e.g. acidic and alkaline environments.
- Safe and environmentally friendly: low smoke and halogen-free materials can improve safety in case of fire.
- Heat Dissipation Advantage: In multi-core configurations, the flat shape of BVVB provides better heat dissipation than round cables.
Application:
- Indoor wiring: for residential or commercial interior wiring (power lighting fixtures, outlet wiring, concealed installation on walls and ceilings).
- Industrial mobile equipment: electrical connections for lifting and transfer machinery.
- Control and signal transmission: as control lines in automation equipment.
- Specification
- Maximum Conductor Temperature: 70℃
- Nominal cross section: 0.75～10 mm²
- Rated voltage: 300/500V
- Test voltage: 2000V

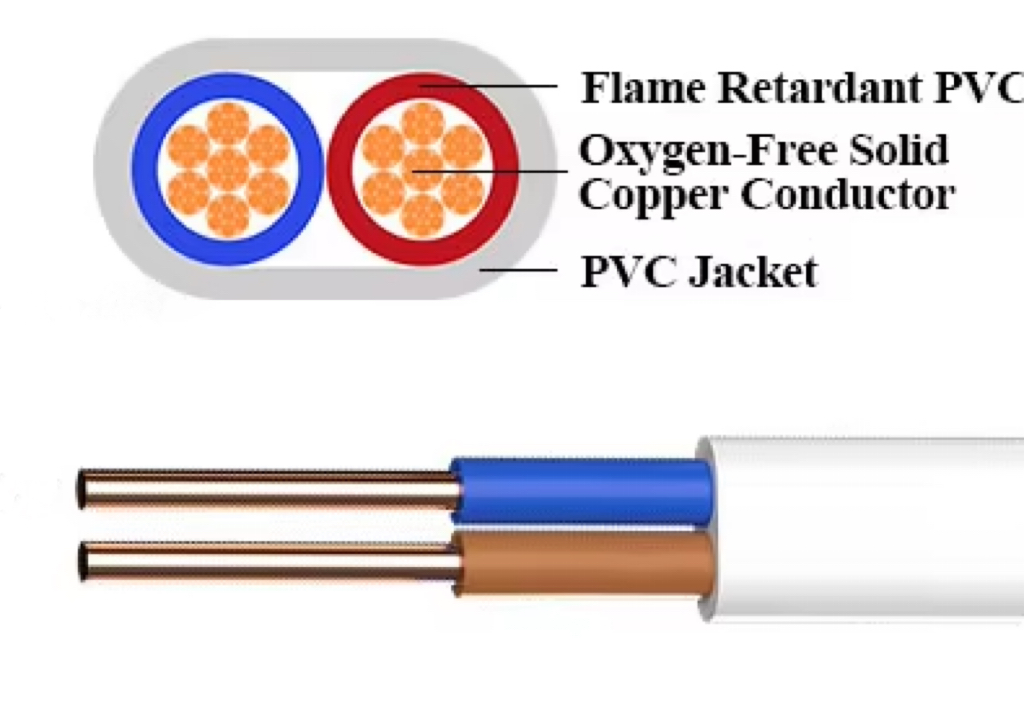

- Construction
- Conductor: Copper
- Insulation: PVC (polyvinyl chloride)
- Insulation Color: Black/Red/Yellow/Blue/Brown
- Sheath: PVC (polyvinyl chloride)
- Sheath Color: Black/White
- Material Shape: Flat Wire
- Core Number: 2 Cores, 3 Cores
- Parameter
| Nominal section (mm²） | Number/diameter of core (mm) | Maximum outer diameter (mm) | Cable Weight (approx) kg/km |
|
2 x 0.75
|
2 x 1/0.97
|
4.6 x 7.0
|
43.7
|
|
2 x 1.0
|
2 x 1/1.13
|
4.8 x 7.4
|
51.0
|
|
2 x 1.5
|
2 x 1/1.38
|
5.4 x 8.4
|
65.9
|
|
2 x 2.5
|
2 x 1/1.78
|
6.2 x 9.8
|
95.7
|
|
2 x 4
|
2 x 7/0,85
|
7.2 x 11.5
|
146.0
|
|
2 x 6
|
2 x 7/1.04
|
8.0 x 13.0
|
200.0
|
|
2 x 10
|
2 x 7/1.35
|
9.6 x 16.0
|
323.0
|
|
3 x 0.75
|
3 x 1/0.97
|
4.6 x 9.4
|
62.6
|
|
3 x 1.0
|
3 x 1/1.13
|
4.8 x 9.8
|
74.3
|
|
3 x 1.5
|
3 x 1/1.38
|
5.4 x 11.5
|
95.6
|
|
3 x 2.5
|
3 x 1/1.78
|
6.2 x 13.5
|
140
|
|
3 x 4
|
3 x 7/0.85
|
7.4 x 16.5
|
220
|
|
3 x 6
|
3 x 7/1.04
|
8.0 x 18.0
|
295
|
|
3 x 10
|
3 x 7/1.35
|
9.6 x 22.5
|
485
|
FAQ
What is the main application of BVVB cable?
It is designed for fixed installation in residential and commercial buildings. Its flat profile makes it ideal for surface mounting or concealed installation embedded in plaster on walls and ceilings to supply power to lighting and socket outlets.
What is the voltage rating of BVVB cable?
BVVB is typically rated at 300/500V. This voltage class is sufficient for standard domestic lighting circuits (230V) and general household power distribution but is not suitable for high-voltage industrial machinery.
Can BVVB cable be used outdoors?
Generally, No. Standard BVVB uses PVC insulation and sheathing that is not typically UV resistant. Prolonged exposure to direct sunlight will cause the jacket to crack. Outdoor installation requires a UV-stable sheath or protection inside conduits.
