Flexible 4mm Wire, 100 Meters


  • According to IEC and GB Standard
  • PVC Cable
  • Approved by ISO,CCC, CE
  • Place of Origin: Henan, China
  • In Stock
  • Number of Cores: 1
  • HS Code: 8544492100

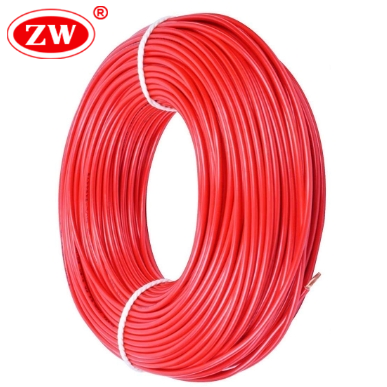

  • Packing: 100 Meters
  • MOQ: 100 Meters
  • Low Voltage

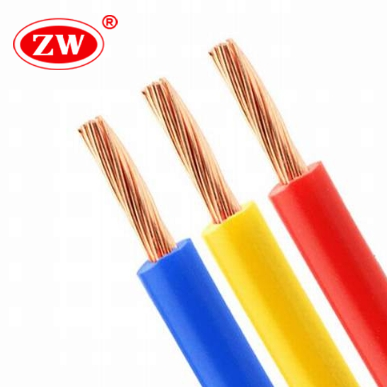

4mm wire refers to a type of house wire with a size of 4mm, where “4mm” stands for a cross sectional area of 4 square millimeters. 4mm² wire has a conductor that is generally single solid or stranded copper or aluminum, with PVC insulation wrapped around the outer layer. Flexible 4mm wire is characterized by durability and insulation. 4mm electrical wire is used in a wide range of applications, such as home circuit distribution, lighting, sockets, and other household appliances, and carries a stable and safe current.

4mm wire specification.

  • Diameter: 3.82mm
  • Conductor: Plain annealed copper Class 1 or Class 2
  • Insulation: PVC
  • Sheath Color: Red,Yellow, Blue, Green, Yellow-Green
  • Related Voltage: 450/750V
  • Test Voltage: 2.5KV/5Min
  • Temperature Range: Max 70°C, Min -10 °C
  • Conductor Resistance: ≤ 4.61(Ω/KM)
  • Weight: 45.9KG/KM

FAQs About 4 sq mm wire Wire

The 4mm wire load capacity is approximately 28amps, but the exact current rating depends on the application.

4mm2 wire price is $18.13 per meter. Prices are for reference only and the exact price will depend on the supplier or manufacturer purchased.

4mm2 electrical wire can be insulated with either PVC or XLPE, with PVC being the most commonly used as insulation.
