110KV HV Power Cable 2XS(FL)2Y
- According to IEC 60502-2, DIN VDE 0276 part 620
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 500 Meters
8~100 $ / Meter
5
- Product Details
2XS(FL)2Y Cable is a single core cable designed for high voltage power transmission. It is insulated with XLPE, which provides excellent electrical insulation and good mechanical strength. The optimized triple extrusion process provides electrical performance and transmission efficiency. In addition, the HDPE outer jacket assures that the cable is waterproof and environmentally resistant. Reliable operation is possible even in wet or underwater environments.
Application
- High- and medium-voltage power transmission: The 2XS(FL)2Y cable series is suitable for high-voltage networks up to 110 kV and medium-voltage networks of lower voltage classes. It allows the safe transmission of power from the power station to the distribution network, including the connection of transformers.
- Multi-environment installations: Designed for use in a wide range of installation environments, including underground burial, underwater, outdoor direct burial, indoor cabling, and in cable ducts.
- Industrial & Infrastructure: Meeting the power needs of plant operations and control systems in industrial facilities, power stations and distribution networks.
- Specification
- Temperature range: -30°C to +90°C
- Permissible operating temperature of the conductor: +90°C
- Laying Temperature: no less than – 20°C
- Permissible short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)
- Minimum bending radius: 15x

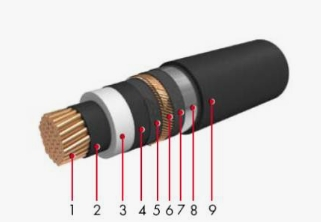

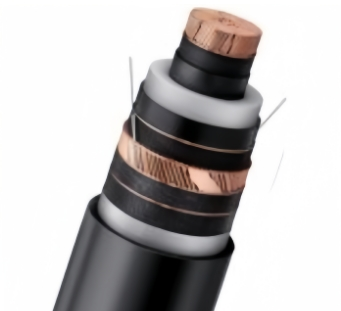

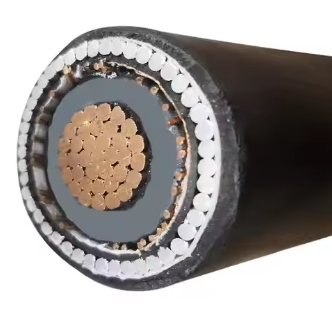

- Construction
- Conductor: Compacted or segmented Class 2 copper or aluminium
- Conductor screen: Extruded semi-conductive XLPE
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive XLPE
- Separator: Swellable semi-conductive tape
- Screen: Copper wire with a counter helix of copper tape
- Separator: Swellable semi-conductive tape
- Moisture Barrier: Copolymer-coated aluminium or copper tape
- Outer sheath: High-Density Polyethylene (HDPE), Black
- Parameter
| Cross-section of Conductor and Electric Protection (mm2) | Conductor Diameter (mm) |
Insulation Thickness (mm) | Diameter over insulation (mm) | Cable Diameter (mm) | Weight (approx)(kg/km) |
| 1×150/95 | 14,1 | 18 | 54,9 | 64,9 | 5035 |
| 1×185/95 | 15,7 | 17 | 54,5 | 64,5 | 5272 |
| 1×240/95 | 18,0 | 16 | 54,8 | 64,8 | 5742 |
| 1×300/95 | 20,3 | 15 | 55,1 | 65,1 | 6210 |
| 1×400/95 | 23,0 | 15 | 57.6 | 67,4 | 7208 |
| 1×500/95 | 26,5 | 15 | 61,3 | 71,7 | 8322 |
| 1×630/95 | 30,3 | 15 | 64,5 | 75,2 | 9886 |
| 1×800/95 | 36,9 | 15 | 71,8 | 82,6 | 12042 |
FAQ
What is the typical voltage range for this cable?
It is designed for High Voltage (HV)transmission. Common rated voltages (U/U) include 38/66kV (72.5kV), 64/110kV (123kV),and 76/132kV (145kV)
Can 2XS(FL)2Y cable be buried directly in the ground?
Yes. The rugged HDPE (High-Density Polyethylene) sheath and the water-blocking structure make it ideal for direct burial in soil, even in areas with high water tables or aggressive soil chemistry.
Is this cable suitable for underwater installation?
Yes. Thanks to the radial Aluminum-laminate barrier (FL) and PE sheath, it is longitudinally and radially watertight, making it suitable for installation in fresh water or wet environments.
