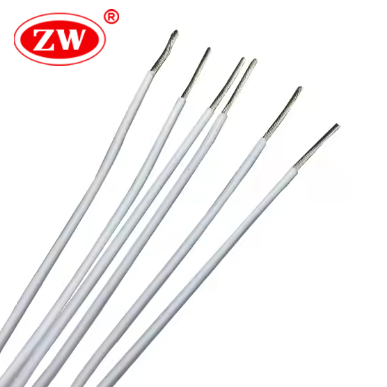

PTFE Silver Plated Teflon Hook Up Wire
- According to UL758 Standard
- Approved by UL
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 1
- HS Code: 8544492900
- Packing: 100 Meters
- MOQ: 3050 Meters
- 300V/600V
0.1~2.0 $ / Meter
5
Silver Plated Teflon Wire is designed for high frequency electronics, aerospace systems and high temperature industrial environments. The high temperature wires use silver-plated copper conductors and PTFE insulation to maintain stability between -30 °C and + 200 °C. It is MIL-W-22759/32 and UL 1330 certified, and the silver plating reduces high-frequency signal loss, making it the wire of choice for demanding applications in wire for electronics.
Product Features
- Multi-strand silver plating reduces impedance by 50% in the high frequency band, while the chemical inertness of PTFE increases its life by a factor of 3 in pickling equipment or fuel cells.
- PTFE is highly resistant to oils and lubricants; fuel resistant and non-flammable, as well as being very flexible with tensile strengths exceeding the flexibility of comparable solid core hook up wire.
- Safety approvals: UL 3271 (high-temperature resistant cables), RoHS/REACH (halogen-free and environmentally friendly), covering global compliance needs.
Cable Construction
- Conductor: Strands Silver-plated
- Insulation: PTFE
- Insulation Color: Blue / Orange / Yellow / Grey / Red / Black / White / Green / Brown/ Transparent as your request
Teflon Insulated Silver Wire Specification
- Working Temperature: -30°C°C+200°C
- Nominal voltage: 600V
- Specifications: 10-36AWG
Silver Plated Teflon Wire Parameter
| AWG | Stranding | Conductor Diameter (in) | Nom. Inside Dia. (In) |
|---|---|---|---|
| 26 | 7/34 | 0.019 | 0.063 |
| 26 | 19/38 | 0.019 | 0.063 |
| 24 | 7/32 | 0.024 | 0.067 |
| 24 | 19/36 | 0.024 | 0.068 |
| 22 | 7/30 | 0.030 | 0.074 |
| 22 | 19/34 | 0.030 | 0.074 |
| 20 | 7/28 | 0.038 | 0.081 |
| 20 | 19/32 | 0.038 | 0.081 |
| 18 | 7/26 | 0.048 | 0.091 |
| 18 | 19/30 | 0.047 | 0.091 |
| 16 | 19/0.0117 | 0.056 | 0.100 |
| 14 | 19/0.0147 | 0.071 | 0.115 |
