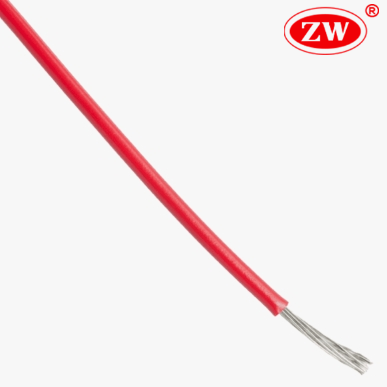

UL1332 22 AWG Teflon Wire
- According to UL758 Standard
- Approved by UL
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492900

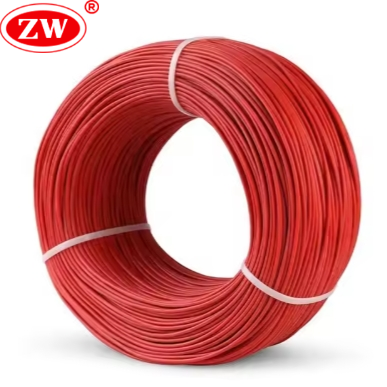

- Packing: 100 Meters
- MOQ: 3050 Meters
- 300V/600V
5
22 AWG Teflon Wire is a high temperature wire designed for harsh environments. Teflon insulated wire is made of high purity oxygen-free copper multi-stranded stranded with a tinned surface, which significantly improves resistance to oxidation and vulcanization. PTFE is formed through an extrusion process to form a uniform insulating layer, with a thickness of 0.2mm ± 0.02mm, for low signal loss. This high-temperature wire type is capable of continuous operation from -60°C to +260°C, with an instantaneous temperature resistance of up to 300°C (e.g., near solder joints). 22 gauge Teflon Wire is suitable for use in corrosive environments and high-frequency circuits, such as those found in aerospace electronics, medical equipment, and industrial sensors.
Product Features
- Chemically inert: PTFE resists strong acids, bases, solvents and grease.
- Temperature Stability: Remains flexible at temperatures as low as -60°C and does not soften or outgas at high temperatures.
- Safety approvals: UL 3271 (high-temperature resistant cables), RoHS/REACH (halogen-free and environmentally friendly), covering global compliance needs.
Cable Construction
- Conductor: Tinned Copper
- Insulation: PTFE
- Insulation Color: Blue / Orange / Yellow / Grey / Red / Black / White / Green / Brown as your request
22 AWG Teflon Wire Specification
- Working Temperature: -60°C°C+260°C
- Nominal voltage: 600V
- Conductor Construction No./dia.(mm): 19/0.15
- Insulation Thickness: 0.3mm
- 22 Gauge Teflon Wire Diameter (mm): 1.41
- Maximum Resistance at 20℃ (Ω/km): 59.40
- Flame-retardant rating: UL VW-1 / IEC 60332-1-2
