UL Certification 12 Gauge High Temperature Wire
- According to UL758 Standard
- Approved by UL
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 1
- HS Code: 8544492900
- Packing: 100 Meters
- MOQ: 3050 Meters
5
12 gauge high temperature wire is a specialized wire that can withstand high heat, corrosive environments and mechanical stress for extended periods of time. Major applications include high temperature wire for heating elements, industrial machinery, and appliances such as ovens, furnaces, and HVAC equipment. 12ga high temp wire utilizes a double layer of silicone rubber insulation and tinned copper conductors for perfect operation in environments ranging from -60°C to +200°C. It meets UL 3135, RoHS compliant, and is available in a wide range of colors. It meets UL 3135, RoHS and SAE J1127 standards, and outperforms PVC and fiberglass wire in flexibility, service life and safety.
Product Features
- Super Soft ,Waterproof, High Temperature Resistance, Anti-Low Temperature,oilproof,Anti-aging
- Flame retardancy: UL VW-1 and IEC 60332-1-2 vertical flame test passed
- High-purity silicone rubber withstands short-term high temperatures of 200°C and 300°C continuously.
- Stranded construction can be bent many times without cracking.

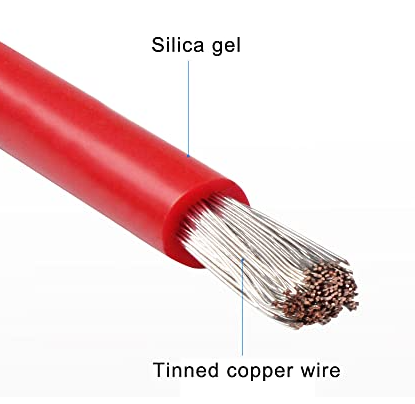

Cable Construction
1) Conductor material : Tinned copper
2) Insulator material : Silicone Rubber
3) Colors : Red/Yellow /Blue/White/Black/Yellow/Green/Brow/Orange/Purple as your request
12 Gauge High Temperature Wire Specification
- Rated Temperature: -60°C~+200°C
- Nominal Voltage : 600 V
- Test Voltage : 2000 V
- 12 AWG High Temperature Wire Overall Diameter(mm): 4.5
-
Insulation Thickness(mm): 1.05
- Ampacity(A): 88
- Max.Cond Resistance (Ω/KM): 5.64
