Two of the most popular insulated materials for high-temperature wires are silicone and Teflon; however, there are noticeable differences between their performance and features. In the section that follows, we will offer you a introduction to the topic of Silicone wire and Teflon wire, which will aid you in the selection of the most appropriate kind of cable for your requirements.
Silicone vs Teflon: Temperature Resistance
Silicone Wire
Heat tolerance levels
Silicone wire is suitable for temperatures ranging from -60°C to 200°C. The temperature range makes it suitable for applications requiring moderate heat resistance. At 150℃, the silicone cable is able to achieve almost permanent stable operation and is suitable for connecting equipment under continuously high temperature conditions. At higher temperatures of 200°C, they have a continuous operating capacity of more than 10,000 hours.

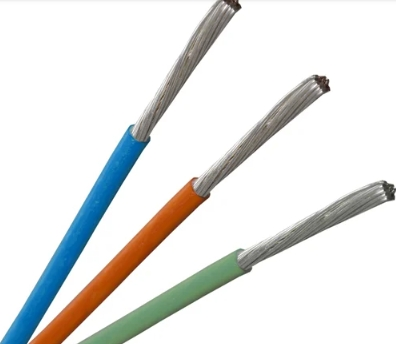

Teflon Wire
Heat tolerance levels
Teflon wire can withstand temperatures from -65°C to +260°C continuously. The high melting point makes Teflon wire ideal for extreme high temperature environments. Also types of insulation for the outer layer of teflon conductors are available in FEP, PFA, and PTFE. Examples include PTFE cables that are able to operate continuously at temperatures up to 260°C, and for short periods of time can even withstand temperatures of up to 290-300°C.
Silicone vs Teflon: Flexibility and Ease of Handling
Silicone Wire
Flexibility Characteristics
The silicone wire is highly elastic, proving useful for single and multi-core electric cables with large cross-section areas. It exhibits flexibility at the extreme low temperature of -60°C. The silicone threads have elastic properties equivalent to rubber threads and can instantly return to their original shape after being manually bent. It allows the wiring and the installation processes to be done effectively, even in confined areas. The fact that the materials can be easily handled and manipulated reduces the time and effort expended in the installation process.
Teflon Wire
Flexibility Characteristics
Despite being binded with a layer of Teflon, which adds to its durability, Teflon wire is comparatively more firm than a silicone wire and also does tend to lose its shape a little when bent by hand. Teflon wire, due to very low temperatures, may harden up making it brittle but with extremes in heat, the mechanical characteristics are generally unaffected. There is a possibility that it will be less flexible in installation and wiring through a confined space may be somewhat problematic.
Silicone vs Teflon: Durability and Longevity
Silicone wire service life in different environments
Silicone wires offer excellent resistance to abrasion and tearing. In applications where there is frequent movement or mechanical friction, the flexible nature of silicone reduces the risk of damage to the internal conductors.
Silicone wires have excellent aging resistance and long service life, making them suitable for long-term use. Silicone wire has good resistance to acid and alkali, corrosion and fungus, and can be used in acid and alkali, fungus, hot and humid environments and grease-rich places. In addition, the excellent water resistance and chemical stability of silicone can further extend its service life in humid or chemical vapor-laden environments. Especially in the medical, food processing and outdoor lighting fields.
Teflon Wire service life in different environments
Teflon wire exhibits extremely high abrasion resistance due to its hard and low coefficient of friction surface. The material is not easily scratched or abraded and maintains the integrity of the conductor even during extreme mechanical handling.
In aerospace, semiconductor manufacturing and high-temperature baking equipment, Teflon wire offers long-term stability and excellent chemical resistance. In addition, Teflon has non-stick properties that reduce the buildup of dirt and corrosion further extending its service life. High temperature Teflon wire and cable will last for decades or more with proper maintenance and correct installation.
Practical Applications
Silicone Wire
Common industries and uses
Silicone wire is used in a variety of industries because of its flexibility and temperature resistance. Silicone wires are often used in the automotive industry, where their heat resistance and durability make them suitable for applications in the engine compartment and under the hood. In medical devices, silicone wires are biocompatible and resistant to sterilization, allowing them to be used in surgical instruments, implants and monitoring devices. The versatility of silicone wires also extends to robotics and automation.
Examples of use
A manufacturing plant needed wire that could withstand the high temperatures of the engine compartment while remaining flexible enough to fit in tight spaces. They chose silicone wire because it can withstand temperatures up to 200°C and is easy to install. It also maintains performance without frequent replacement.
Teflon wire
Common industries and uses
Teflon wire is known for its durability and resistance to high temperatures, making it indispensable in several industries. In situations where extreme temperatures and shock resistance are required, silicone insulation ensures that electrical connections remain intact. Oil and aircraft processing also rely on the corrosion resistance of Teflon wire. Teflon is safe and long-lasting in home appliances and industrial ovens since it can tolerate temperatures of up to 450°C.
Examples of use
Aerospace components are required to work in harsh, corrosive environments and high temperature areas, which pose special challenges for wiring. As a result, Teflon wire was chosen for its excellent heat and even abrasion resistance. The stability of the system under harsh conditions illustrates the utility of Teflon wire in challenging applications.
Silicone cable and Teflon cable on the subject of this content you get help? Silicone wires excel in flexibility, biocompatibility and medium-temperature applications, while Teflon wires dominate in temperature extremes, abrasion resistance and chemical stability. Again if you are in the market looking forward to a reliable high temperature wires manufacturer for your project then ZW cable range has you covered.
