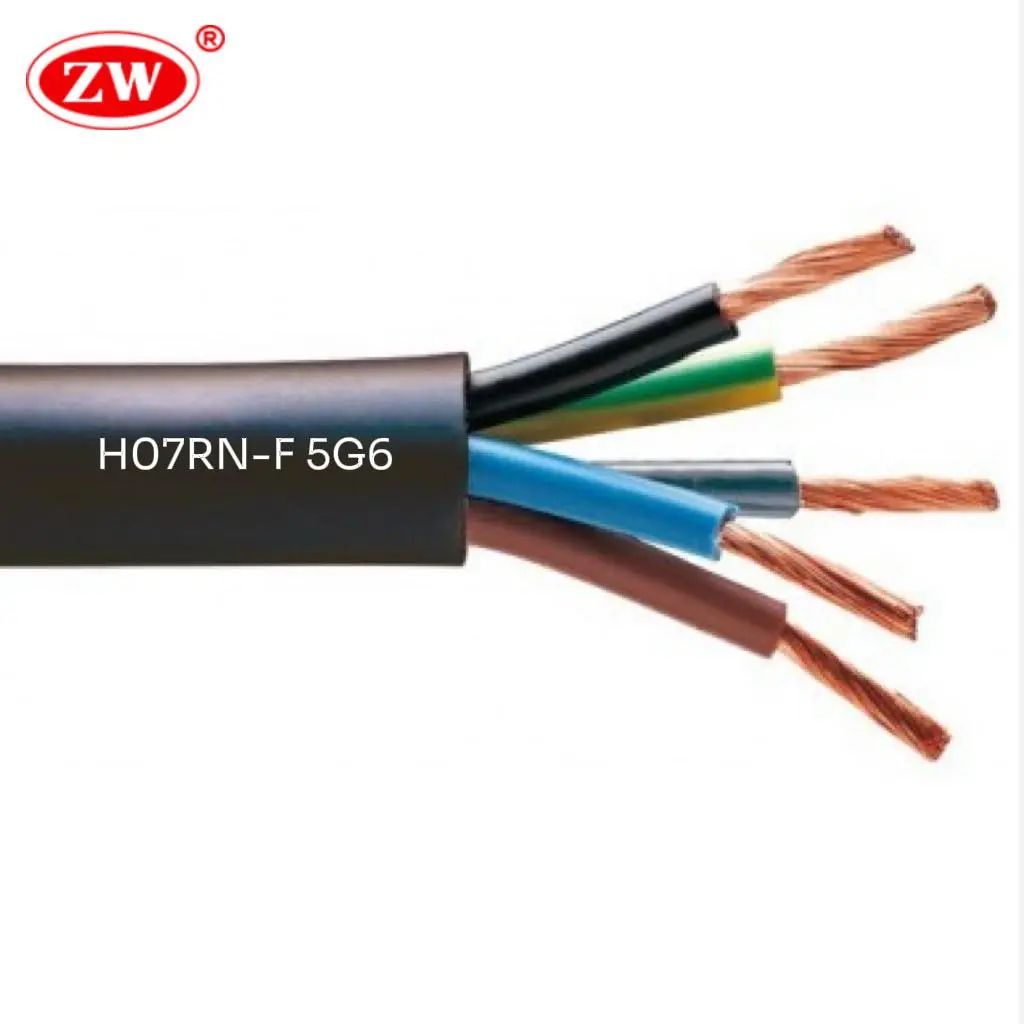

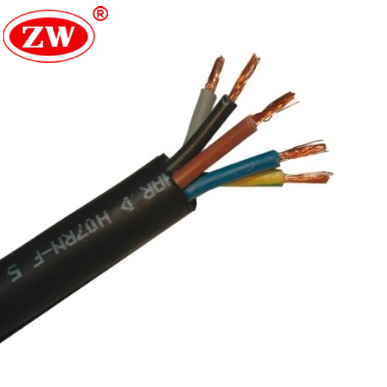

H07RN-F 5G6mm2 Power Cable
- According to IEC and VDE Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
H07RN-F 5G6 cables: “H07RN-F” denotes coordinated rubber insulated flexible cables and “5G6” denotes a 5-core configuration with a 6mm² cross sectional area per conductor. Designed for medium to high power dynamic applications, this rubberized cable is extremely flexible (operating temperature range -30°C to +60°C). H07RN-F 5G6mm2 cable is made of fatigue-resistant grade 5 copper stranded wire as well as an oil-resistant rubber sheath. H07RN-F 6mm 5 core cable is mainly recommended for indoor or outdoor use in scenarios where power is supplied to mobile or stationary equipment, such as mobile equipment on construction sites (cranes, pumps), heavy machinery, explosion-proof chemical plants and cable reels. Common specifications of the same series with different core counts are H07RN-F 3×1.5mm², H07RN-F 4G2.5mm² and H07RN-F 5G25mm² flexible rubber cables.
Product Features
- Moisture, cold and heat resistant
- Oil, solvent and abrasion resistance
- Good flexibility and elasticity, strong mechanical properties
- The sheath passes the oil-immersion test and is suitable for outdoor or places where grease can be contacted.
- Dual fire certification: IEC 60332-3-24 (bundle burning class A) + EN 45545-2 HL3 (railroad severe environment).
- Low eccentricity; uniform thickness prevents current breakage and shock, realizing safer electricity use
Cable Construction
- Conductor: Plain Annealed Copper Class 5
- Insulation: EPDM Rubber
- Sheath: Rubber (CPE)
H07RN-F Cable 5G6mm² Specification
- Temperature range: -30°C to +60°C
- Test Voltage: 3000V
- Nominal voltage: 450/750V
- Insulation Thickness (mm): 1
- Jacket Thickness(mm): 2.5
- Overall Diameter(mm): 18.2
- Max. Conductor Resistance at 20°C (Ω/KM): 3.3
- Nominal Weight(kg/km): 567
