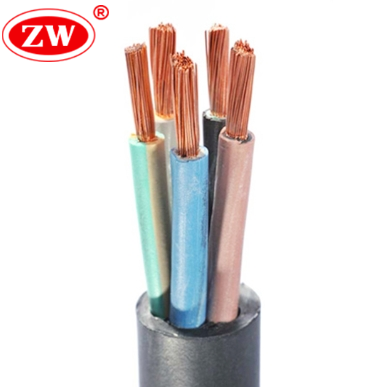

H07RN-F 5G25mm2 Flexible Cable
- According to IEC and VDE Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details
The H07RN-F 5G25mm2 is a five-core rubber-insulated cable designed for heavy-duty mobile equipment. This H07RN-F cable is constructed with a 5 x 25mm² copper conductor and rubberized composite jacket to maintain superior fatigue resistance and mechanical strength in extreme environments from -30°C to +60°C. It is mainly recommended for medium to high mechanical stress scenarios, such as mobile equipment on construction sites (cranes, pumps), heavy machinery, explosion-proof chemical plants and cable reels. Common specifications in the same series include H07RN-F 3×1.5mm², H07RN-F 3G2.5mm² and H07RN-F 3G6mm² flexible rubber cables.
Product Features
- Moisture, cold and heat resistant
- Oil, solvent and abrasion resistance
- Good flexibility and elasticity, strong mechanical properties
- The sheath passes the oil-immersion test and is suitable for outdoor or places where grease can be contacted.
- Dual fire certification: IEC 60332-3-24 (bundle burning class A) + EN 45545-2 HL3 (railroad severe environment).
- Low eccentricity; uniform thickness prevents current breakage and shock, realizing safer electricity use
- Specification
- Temperature range: -30°C to +60°C
- Test Voltage: 3000V
- Nominal voltage: 450/750V
- Insulation Thickness (mm): 1.4
- Overall Diameter(mm): 33.9
- Nominal Weight(kg/km): 2096
- Construction
- Conductor: Plain Annealed Copper Class 5
- Insulation: EPDM Rubber
- Sheath: Rubber (CPE)
- Parameter
FAQ
What is the current carrying capacity (Ampacity) of H07RN-F 5G25mm²?
In free air at 30°C, H07RN-F 5G25mm² typically carries between 100A and 127A. The exact rating depends on whether the cable is laid straight or coiled. Always apply derating factors for higher ambient temperatures.
How much power (kW) can H07RN-F 5G25mm² transmit?
For a 400V three-phase system, this cable can typically handle a load between 70kW and 85kW, depending on the installation method and power factor (assuming a current of ~100-120A).
What does "5G25" indicate in the specification?
5: The cable has 5 conductors (3 Phases + Neutral + Earth). G: Includes a Green/Yellow Ground/Protective Earth conductor. 25: Each conductor has a nominal cross-sectional area of 25mm².
