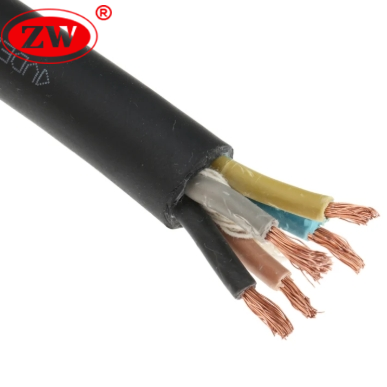

H07RN-F 5G16mm2 Power Cable

H07RN-F 5G16 Cable: “H07RN-F” denotes harmonized rubber insulated flexible cable and “5G16” denotes a 5-core configuration with a cross-sectional area of 16mm² per conductor. H07RN-F power cables are constructed with a conductive stranded copper core, ethylene propylene rubber (EPR) insulation and a polychloroprene (PCP) outer jacket. H07RN-F 5G16mm² is designed for power supplies rated at 450/750V and is mainly recommended for powering heavy mobile and fixed equipment. It is highly flexible (operating temperature range of -30°C to +60°C) and robust, making it the backbone cable for industries where reliability is critical. In addition, ZW Cable is available in different core counts and common specifications, such as: H07RN-F 3G1.5mm², H07RN-F 4G2.5mm² and H07RN-F 5G25mm² flexible rubber cables.

Product Features

• Moisture, cold and heat resistant
• Oil, solvent and abrasion resistance
• Good flexibility and elasticity, strong mechanical properties
• The sheath passes the oil-immersion test and is suitable for outdoor or places where grease can be contacted.
• Dual fire certification: IEC 60332-3-24 (bundle burning class A) + EN 45545-2 HL3 (railroad severe environment).
• Low eccentricity; uniform thickness prevents current breakage and shock, realizing safer electricity use

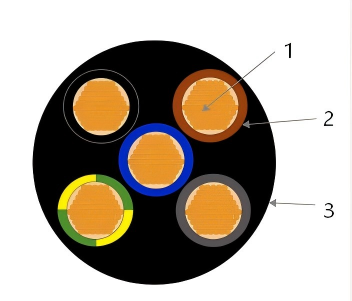

Cable Construction

• Conductor: Plain Annealed Copper Class 5
• Insulation: EPDM Rubber
• Sheath: Rubber (CPE)
