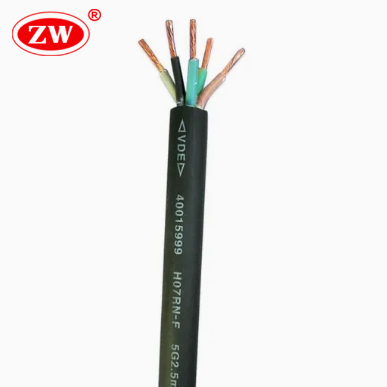

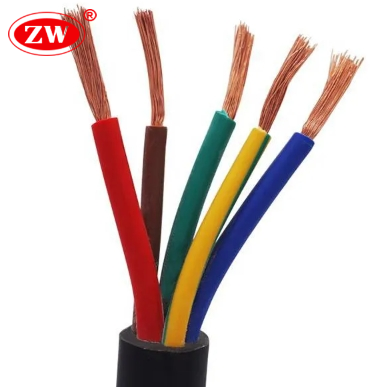

Multi-Core Rubber Cable H07RN-F 5G2.5mm2

H07RN-F 5G2.5mm2 Cable” denotes harmonized rubber-insulated flexible cable, and ‘5G2.5’ denotes a 5-conductor configuration with a cross-sectional area of 2.5mm² per conductor. Rated at 450/750 V, this h07rn-f rubber cable is suitable for powering medium-sized mobile machines and fixtures that require multi-phase power distribution. It is flexible and robust over a wide temperature range (-30°C to +60°C). For different power requirements, ZW Cable is available in a wide range of sizes and core counts, such as H07RN-F 3G1.5mm² for light applications, H07RN-F 4G2.5mm² for three-phase systems with neutral, and the high-capacity H07RN-F 5G25mm² for heavy machinery.

Product Features

• Chemical Performance – Sheathing passes the oil immersion test and is suitable for use outdoors or in locations where grease is accessible.
• Thermal Performance- Insulation maintains dielectric integrity even under fluctuating loads, preventing overheating under continuous use.
• Flexibility – Precision stranded copper wire allows for small bend radii without compromising conductivity, ideal for dynamic setups such as cranes or portable generators.
• Compliant with safety standards – Complies with IEC 60332-3-24 (Bundle Flame Class A) + EN 45545-2 HL3. Flame retardancy and low smoke emissions are guaranteed; safer operation in confined spaces.
• Low eccentricity and uniform thickness prevents current breaks and shocks, safe for electrical use

Cable Construction

• Conductor: Plain Annealed Copper Class 5
• Insulation: EPDM Rubber
• Sheath: Rubber (CPE)
