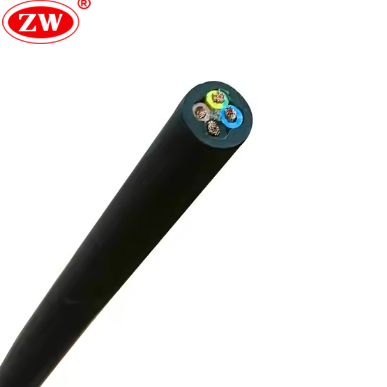

H07RN-F 4G2.5mm2 Black

According to IEC and VDE Standard
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
HS Code: 8544492100
Packing: 100 Meters

5

H07RN-F 4G2.5mm2 is a four-core rubber insulated cable designed for three-phase four-wire industrial equipment. It is made of 4×2.5mm² copper conductor with double EPDM rubber jacket, which maintains excellent flexibility and fatigue resistance in -30℃ to +60℃ environment. It is mainly recommended for indoor or outdoor environments such as food processing lines, intelligent storage AGVs, mobile stage lighting and rail transportation. Other common cable sizes are H07RN-F 3g1.5 , H07RN-F 3g2.5 and H07RN-F 3G6mm2 EPDM rubber sheathed cables.

Product Features

Wear-resistant – Low temperature resistant – Toughness – High temperature resistant
Life cycle cost is 32% lower than traditional cables (based on 10 years)
Low eccentricity; uniform thickness prevents current breakage and shocks for safer electricity use
EN 50396-3-1 temperature cycling test with no cracks in the sheath.
Sheath passes oil immersion test.
Dual certification for fire protection; passed IEC 60332-1 (vertical combustion) and EN 45545-2 (fire protection for rail transportation)

Temperature range: -30°C to +60°C
Test Voltage: 3000V
Nominal voltage: 450/750V
Insulation Thickness (mm): 0.9
Jacket Thickness (mm): 1.9
Overall Diameter(mm): 13.3±0.4
Max. Conductor Resistance at 20°C (Ω/KM): 7.98

Conductor: Plain Annealed Copper Class 5
Insulation: EPDM Rubber
Sheath: Rubber (CPE)

FAQ

What is the current carrying capacity of H07RN-F 4G2.5mm²?

In free air at 30°C, a 4G2.5mm² cable typically handles between 21A and 25A per phase. For continuous motor applications, always consult the specific derating factors for ambient temperature and cable grouping.

Is this cable suitable for 3-Phase motors?

Yes. The 4-core configuration (3 Phases + Earth) is specifically designed for 3-phase 400V motors, pumps, and generators that do not require a neutral wire.

What is the core color code for 4G2.5mm²?

According to the HD 308 S2 standard for 4-core cables with Earth, the colors are: Green/Yellow (Earth), Brown (L1), Black (L2), and Grey (L3).
