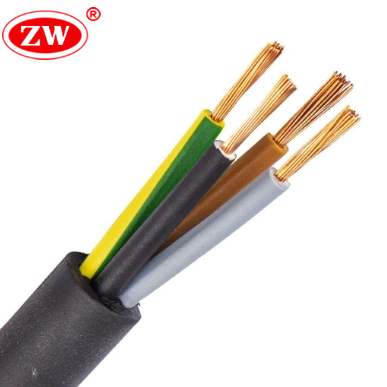

H07RN-F 4G16mm2 Black
- According to IEC and VDE Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details

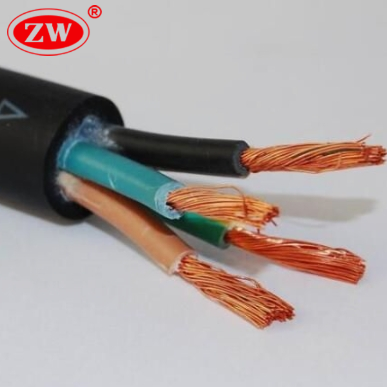

H07RN-F 4G16mm2 is a four-core rubber insulated cable designed for high current dynamic scenes. It utilizes 4 x 16mm² copper conductors with a double EPDM rubber jacket to maintain superior fatigue resistance and mechanical strength in extreme environments from -30°C to +60°C. It is mainly recommended for indoor or outdoor environments such as mobile equipment in construction sites, heavy machinery in mines, explosion-proof chemical plants and cable reels, as well as for power supply in extreme environments and explosion-risk areas. Common specifications in the same series include H07RN-F 3g1.5, H07RN-F 3g2.5 and H07RN-F 4g2.5 EPDM rubber sheathed cables.
Product Features
- Wear-resistant – Low temperature resistant – Toughness – High temperature resistant
- Life cycle cost is 32% lower than traditional cables (based on 10 years)
- Low eccentricity; uniform thickness prevents current breakage and shocks for safer electricity use
- ISO 4649 60N pressure abrasion test to withstand tracked equipment.
- Sheath passes oil immersion test
- Dual certification for fire protection; passed IEC 60332-1 (vertical combustion) and EN 45545-2 (fire protection for rail transportation)
- Specification
- Temperature range: -30°C to +60°C
- Test Voltage: 3000V
- Nominal voltage: 450/750V
- Insulation Thickness (mm): 1.2
- Jacket Thickness (mm): 2
- Overall Diameter(mm): 25.4
- Nominal Weight(kg/km): 1138

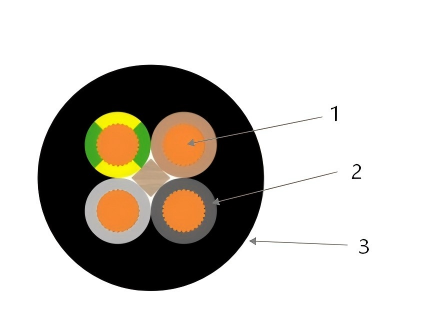

- Construction
- Conductor: Plain Annealed Copper Class 5
- Insulation: EPDM Rubber
- Sheath: Rubber (CPE)
- Parameter
FAQ
What is the current carrying capacity (Ampacity) of H07RN-F 4G16mm²?
In free air at 30°C, H07RN-F 4G16mm² is typically rated for approximately 70A to 80A.
Is H07RN-F 4G16mm² suitable for 3-phase applications?
Yes, but specifically for 3-phase motor loads or equipment where a Neutral is not required (3 Phases + Earth). If a Neutral is required (3 Phases + Neutral + Earth), you must use a 5G16mm² cable.
What is the primary application for H07RN-F 4G16mm²?
It is standard for 63A 3-phase (3P+E) extension leads used in industrial power distribution, large generators, heavy motor connections, and temporary power for events.
