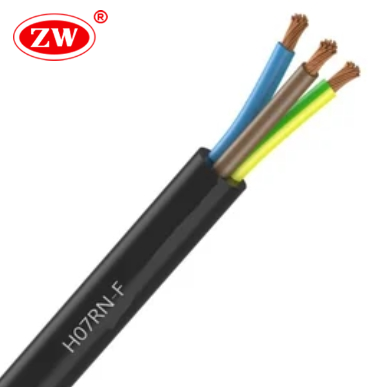

H07RN-F 3G6mm2 Black

According to IEC and VDE Standard
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
HS Code: 8544492100
Packing: 100 Meters

5

H07RN-F 3G6mm2 is a 3-core rubber insulated cable designed for high mechanical stress scenarios. It is constructed with a 3 x 6mm² copper conductor and a double EPDM rubber jacket that remains ultra-flexible in extreme environments from -30°C to +60°C. It is mainly recommended for indoor or outdoor environments, but can also be used in harsh industrial environments such as industrial machinery, harbor equipment, mobile power and outdoor power connections for renewable energy sources (e.g. wind farms). Other common cable sizes are H07RN-F 3g1.5 and H07RN-F 3g2.5 EPDM rubber sheathed cables.

Product Features

Wear-resistant – Low temperature resistant – Toughness – High temperature resistant
Life cycle cost is 32% lower than traditional cables (based on 10 years)
Low eccentricity; uniform thickness prevents current breakage and shocks for safer electricity use
Passed ISO 4649 40N pressure abrasion test, resistant to gravel impact and track crushing.
Sheath passes oil immersion test
Dual certification for fire protection; passed IEC 60332-1 (vertical combustion) and EN 45545-2 (fire protection for rail transportation)

Temperature range: -30°C to +60°C
Test Voltage: 3000V
Nominal voltage: 450/750V
Insulation Thickness (mm): 1
Jacket Thickness (mm): 2.1
Overall Diameter(mm): 15.4±0.5
Max. Conductor Resistance at 20°C (Ω/KM): 3.3
Minimum Bending Radius: 6 x overall diameter

Conductor: Plain Annealed Copper Class 5
Insulation: EPDM Rubber
Sheath: Rubber (CPE)

FAQ

What is the current carrying capacity (Ampacity) of H07RN-F 3G6mm²?

In free air at 30°C, H07RN-F 3G6mm² typically carries between 36A and 44A, depending on the installation method (single phase). Always apply derating factors for higher ambient temperatures or coiled cables.

What is the H07RN-F 3G6mm2 used for?

It is primarily used for heavy-duty single-phase power connections in harsh environments. Common applications include connecting mobile generators, heavy pumps, stage lighting equipment, and shore power for yachts or RVs.

What is the color code for the internal cores?

According to HD 308 S2, the color code for a 3-core cable with a protective conductor is: Green/Yellow (Earth), Blue (Neutral), and Brown (Live).
