**H07RN-F 3*2.5mm2**

According to IEC and VDE Standard
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
HS Code: 8544492100
Packing: 100 Meters

5

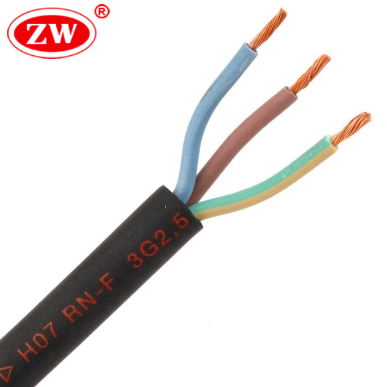

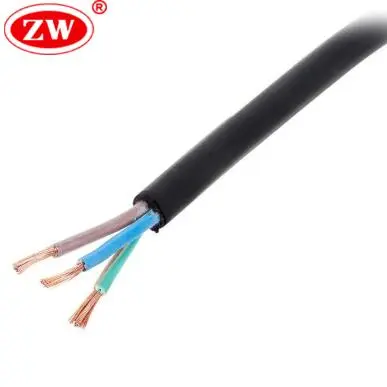

H07RN-F 3G2.5mm2 is a 3 core 2.5mm² cross section plus yellow and green ground heavy duty rubber cable. It conforms to IEC 60245 and BS 6004. These electrical cables are designed to be highly flexible and able to withstand weather, oil/grease, mechanical and thermal stress. Mainly recommended for use in indoor or outdoor environments for low stress electrical equipment in dry, wet and humid areas and also for use in harsh industrial environments. Other common cable sizes are H07RN-F 3g1.5 and 4-core H07RN-F flexible cables.

Product Features

High-precision oxygen-free copper material, enough square meters of low resistance, not easy to heat up.
The rubber sheath is tested to EN 60811-2-1 for oil resistance and is resistant to debris impact, UV aging and frequent drag bending in environments from -30°C to +60°C.
Low eccentricity and uniform thickness; prevent current breakdown and fire, ensure the safety of electric power

Temperature range: -30°C to +60°C
Test Voltage: 3000V
Nominal voltage: 450/750V
Insulation Thickness (mm): 0.9
Jacket Thickness (mm): 1.8
Overall Diameter(mm): 12.1±0.4
Max. Conductor Resistance at 20°C (Ω/KM): 7.98
Minimum Bending Radius: 6 x overall diameter

Conductor: Plain Annealed Copper Class 5
Insulation: EPDM Rubber
Sheath: rubber (CPE)

FAQ

What does "3G2.5mm²" signify in cable specifications?

"3G" indicates the cable has 3 cores, one of which is a Green/Yellow Ground (Earth) conductor. "2.5mm²" refers to the nominal cross-sectional area of each copper conductor.

What is the current carrying capacity (Ampacity) of 3G2.5mm²?

For single-phase AC supplies in free air (at 30°C), H07RN-F 3G2.5mm² is typically rated for 20A to 25A continuous load. It is the standard cable size for 16A industrial extension leads.

Is the cable oil and chemical resistant?

Yes, the outer sheath complies with EN 60811-404, offering high resistance to industrial oils, fats, and chemical solvents.
