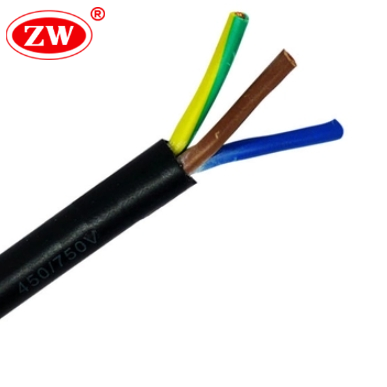

H07RN-F 3*1.5mm2
- According to IEC and VDE Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details
H07RN-F 3×1.5mm² is a heavy duty multi-core rubber cable designed for high mechanical stress and harsh environments. The 3 x 1.5mm² size is particularly suitable for mobile equipment, construction machinery and temporary power supply systems. It is IEC 60245 and CE certified and is oil, abrasion and UV resistant, making it the cable of choice for open pit mines, harbor cranes and agricultural equipment.
Product Features
- It is tested to EN 60811-2-1 for oil resistance and UV aging, and is resistant to temperature extremes from -40°C to +60°C. The sheath is also resistant to cuts, tears, and abrasions.
- Sheath resistant to cuts, tears and abrasions
- Bend radius of only 6 x cable O.D. for wiring in confined spaces (e.g. robotic drag chain systems).
- Brown (L1), black (L2), gray (L3) and yellow-green ground wires in accordance with the IEC 60446 phase standard reduce wiring errors.
- Specification
- Temperature range: -30°C to +60°C
- Test Voltage: 3000V
- Nominal voltage: 450/750V
- Insulation Thickness (mm): 0.8
- Jacket Thickness (mm): 1.6
- Weight appr. (kg/km): 134
- Max. Conductor Resistance at 20°C (Ω/KM): 13.3
- Minimum Bending Radius: 6 x overall diameter

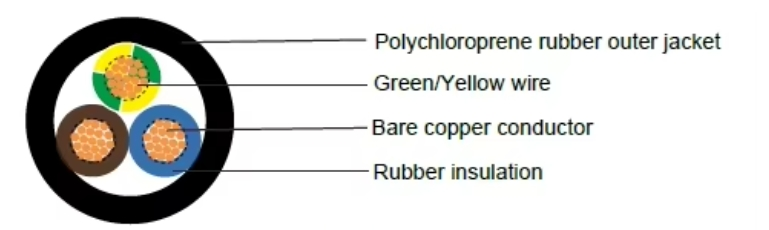

- Construction
- Conductor: Plain Annealed Copper Class 5
- Insulation: EPDM Rubber
- Sheath: rubber (CPE)
- Parameter
FAQ
What is the current carrying capacity of H07RN-F 3x1.5mm²?
In free air (at 30°C ambient temperature), the typical current rating for H07RN-F 3x1.5mm² is approximately 16A to 22A.
What do the 3 cores represent in this cable?
According to HD 308 S2 color coding, the three cores are: Green/Yellow: Earth (Protection) Blue: Neutral Brown: Live (Line)
Is H07RN-F 3x1.5mm² suitable for outdoor use?
Yes. The heavy-duty PCP (Polychloroprene/Neoprene) sheath offers excellent resistance to UV radiation, ozone, and moisture, making it ideal for long-term outdoor exposure.
