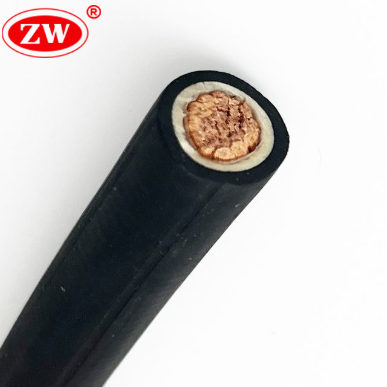

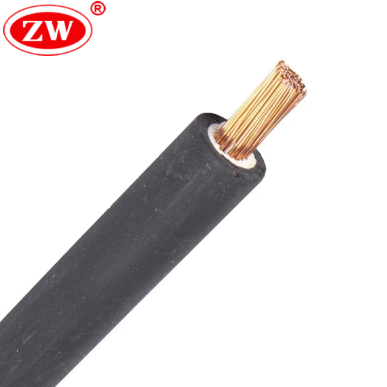

H07RN-F 1x70mm2 Rubber Cable
- According to IEC and VDE Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- Number of Conductors: 1
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details
H07RN-F 1×70 is a single-core rubber-insulated flexible cable with a conductor cross-section of 70mm². H07RN-F 170mm² is constructed with a class 5 normal annealed copper core; EPR rubber insulation that withstands thermal fluctuations (-30°C to +60°C) and a robust black polychloroprene (PCP) jacket with excellent resistance to oils, abrasion and UV rays. H07RN-F 70mm² is suitable for heavy-duty applications requiring a robust single-phase power supply, as well as for cold and harsh industrial environments, such as providing mains power and connecting mobile equipment and appliances to arc welders, crushers or high-torque motors in manufacturing plants. The H07RN-F cable series is also available in various sizes such as H07RN-F 3-core, H07RN-F 4-core (3-phase + neutral) and H07RN-F 5-core for complex machinery with control circuits.
Product Features
- Resistant to chemicals, moisture and mechanical stresses
- Insulation maintains dielectric integrity at peak temperatures, preventing insulation breakdown under continuous use.
- Designed for frequent bending and movement, ideal for cranes, robotic arms or temporary movable grids.
- Complies with IEC 60245 for flame retardancy and low smoke emissions
- Specification
- Temperature range: -30°C to +60°C
- Test Voltage: 2500V
- Nominal voltage: 450/750V
- Max. Temperature During Short Circuit (≤5S): 200°C
-
Minimum Bending Radius: Fixed: 4 x overall diameter; Flexed: 6 x overall diameter
- Insulation Thickness (mm): 1.6
- Jacket Thickness(mm): 2.6
- Overall Diameter(mm): 17.8
- Nominal Weight(kg/km): 760
- Construction
- Conductor: Plain Annealed Copper Class 5
- Insulation: EPR Rubber
- Sheath: PCP (Polychloroprene)
- Sheath Color: Black
- Parameter
