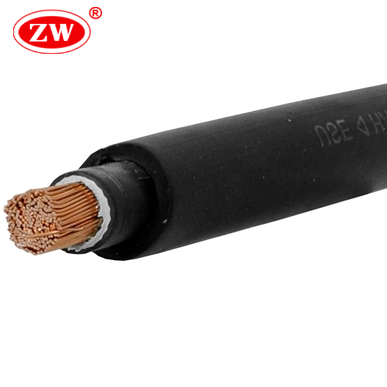

H07RN-F 1x50​mm2 Flexible Cable

H07RN-F 1x50mm2 is a single core rubber insulated cable designed for high current power transmission in dynamic environments. It features a class 5 normal annealed copper core for excellent flexibility and fatigue resistance, EPR rubber insulation that can withstand thermal stresses up to +60°C, and a durable black polychloroprene (PCP) jacket that is resistant to oil, abrasion, and UV degradation. Classified at 450/750V, the H07RN-F flexible cable 1x50mm² is ideally suited for powering heavy-duty stationary or mobile equipment that requires a robust single-phase supply, such as industrial generators, shipyard machinery or mining conveyor systems. In addition, for multi-core applications such as H07RN-F 3×1.5mm² for low-voltage control circuits, H07RN-F 4G2.5mm² for three-phase systems with a neutral conductor, and the high-capacity H07RN-F 5G25mm² for complex distribution networks, the ZW Cable cable manufacturer offers the most detailed customization requirements.

Product Features

• The rubber insulation is stable over a temperature range of -30°C to +60°C; the jacket protects against cuts, oil and weathering.
• Optimized for frequent movement, such as cable reels, temporary movable grids, or manufacturing robotic arms
• Complies with IEC 60245 for flame retardancy and low smoke emissions
• IEC 60331-25 (fire resistant) and ATEX Zone 1 certified, smoke density (IEC 61034) ≤ 40%, toxicity index (NES 713) ≤ 0.4.

Cable Construction

• Conductor: Plain Annealed Copper Class 5
• Insulation: EPR Rubber
• Sheath: PCP (Polychloroprene)
• Sheath Color: Black
