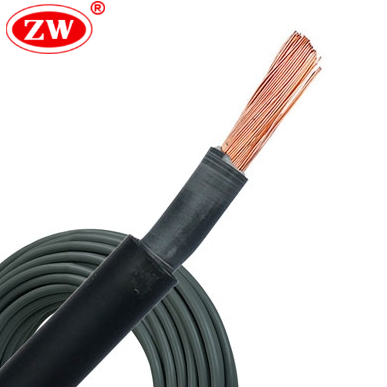

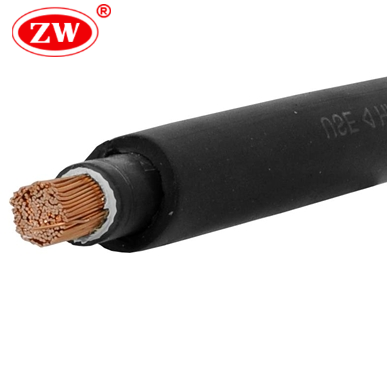

H07RN-F 1x120mm2 Power Cable

H07RN-F 1×120 is a single-core rubber insulated cable according to IEC 60245 international standard. It features a 120mm² Class 5 annealed copper conductor + EPR/PCP composite construction. H07RN-F 1x120mm2 is designed for harsh industrial environments and is widely used in construction sites, port machinery, mining equipment and outdoor temporary power supply systems. H07RN-F flexible rubber cable supports fixed (mechanically anchored/conduit-protected) and free-floating deployments, and can be laid in bridges, brackets, feedthroughs or outside walls, It can be laid on bridges, supports, conduits or outside walls, and can be flexibly adapted to multiple cabling scenarios under protected or unprotected conditions. Other common single-core cable types include H07RN-F 1×50, H07RN-F 1×70 and H07RN-F 1×95.

Product Features

• The inner insulating EPR rubber insulation provides excellent resistance to ozone, UV rays and aging, and maintains insulation stability even after long-term exposure to outdoor environments;
• The outer black PCP jacket offers excellent mechanical protection, tear resistance, oil resistance and flame retardancy (IEC 60332-1 tested) to meet industrial safety standards.
• In addition to single-core models, the H07RN-F series is also available in multi-core configurations such as H07RN-F 3-core, H07RN-F 4-core, and H07RN-F 5-core to meet the needs of complex equipment with multi-loop control.
• The surface of the cable is matte and non-slip, with high tensile strength.

Cable Construction

• Conductor: Plain Annealed Copper Class 5
• Insulation: EPR Rubber
• Sheath: PCP (Polychloroprene)
• Sheath Color: Black
