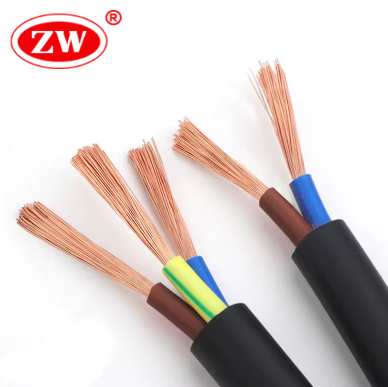

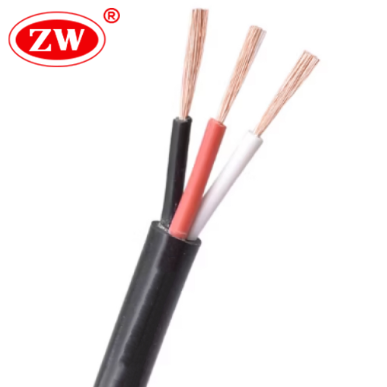

Royal Cord Flexible RVV Power Cable
- According to IEC and GB Standard
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- In Stock
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details
Royal cord, also referred to as portable cord, flexible cord, or RVV cable, is a flexible PVC insulated and sheathed multi-core cable intended for general-purpose electrical wiring. It is constructed with stranded annealed copper conductors, PVC insulation, and a robust PVC outer sheath, offering both high strength and good flexibility. With 2 to 5 cores available and conductor sizes from 0.5mm² up to 6mm² and beyond, this cable suits household appliances, power tools, and light industrial equipment. It performs reliably in dry, damp, and outdoor environments.
- Specification
- Voltage Rating: 300/500V or 450/750V
- Test Voltage: 2000 V
- Max. Conductor Temperature: 70°C
- Max. Short-Circuit Temperature: 150°C (max. 5 sec)
- Temperature Range: -40°C to +80°C (Fixed); -5°C to +70°C (Moving)
- Min. Bending Radius: 6 x Overall Diameter (Fixed)
- Flame Retardancy: IEC 60332-1-2 (vertical flame test)

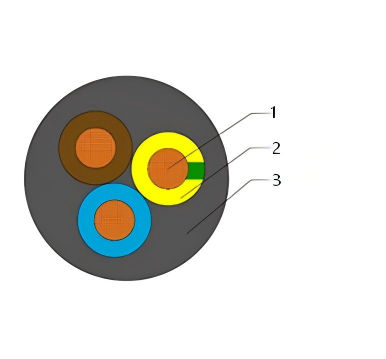

- Construction
- Conductor material: Flexible Stranded Copper
- Insulation: PVC
- Outer Sheath: PVC
- Parameter
|
NORMAL AREA（MM²） |
STRUCTRE（MM） | INSULATION THICKNESS（MM） | OVERALL DIA.（MM） |
| 2×0.50 | 28/0.15 | 0.5 | 5.2 |
| 2×0.75 | 24/0.20 | 0.5 | 6.4 |
| 2×1.00 | 32/0.20 | 0.6 | 6.6 |
| 2×1.50 | 30/0.25 | 0.7 | 7.6 |
| 2×2.50 | 49/0.25 | 0.8 | 9.4 |
| 3×0.75 | 24/0.20 | 0.5 | 6.8 |
| 3×1.00 | 32/0.20 | 0.6 | 7.2 |
| 3×1.50 | 30/0.25 | 0.7 | 8.5 |
| 3×2.50 | 49/0.25 | 0.8 | 10.0 |
| 3×4.00 | 56/0.30 | 0.8 | 11.7 |
| 3×6.00 | 84/0.30 | 0.8 | 13.0 |
| 3×10.0 | 126/0.32 | 1.0 | 16.1 |
| 3×16.0 | 126/0.40 | 1.0 | 19.4 |
| 4×1.00 | 32/0.20 | 0.6 | 8.0 |
| 4×1.50 | 30/0.25 | 0.7 | 9.2 |
| 4×2.50 | 49/0.25 | 0.8 | 10.9 |
| 4×4.00 | 56/0.30 | 0.8 | 12.8 |
| 4×6.00 | 84/0.30 | 0.8 | 15.4 |
| 4×10.0 | 126/0.32 | 1.0 | 17.6 |
| 4×16.0 | 126/0.40 | 1.0 | 21.1 |
| 5×1.50 | 48/0.20 | 0.7 | 10.7 |
| 5×2.50 | 49/0.25 | 0.8 | 12.8 |
| 5×4.00 | 56/0.30 | 0.8 | 14.5 |
| 5×6.00 | 84/0.30 | 0.8 | 16.4 |
| 5×10.0 | 126/0.32 | 1.0 | 20.1 |
| 5×16.0 | 126/0.40 | 1.0 | 24.4 |
FAQ
What is the difference between royal cord and ordinary PVC cable?
Royal cord uses finely stranded copper conductors (Class 5) for high flexibility and fatigue resistance, while ordinary PVC cable often uses solid or coarse stranded conductors (Class 1 or 2) intended for fixed installation.
Can royal cord be used outdoors?
Yes, royal cord with a UV-stabilized PVC sheath can be used outdoors for temporary installations or portable equipment. However, for permanent outdoor burial or continuous sun exposure, additional protection or a specialized cable is recommended.
How flexible is royal cord compared to rubber cable?
Royal cord is very flexible due to its fine-stranded copper, but rubber-insulated cables (e.g., H05RR-F) are generally more flexible, especially in cold temperatures.
