What is the first thing that comes to mind when grounding is mentioned? Grounding wire is not only a safety barrier, it is a critical component that supports the proper functioning of the entire system. Today, we will share the basic concepts of grounding and its importance in detail.
Definition of Grounding Wires
Grounding is the practice of establishing a connection from a part of an electrical device, system or structure to the earth through a conductor, using the earth as a potential reference point to ensure electrical safety and proper functioning of the circuit. In layman’s terms, in the event of an electrical fault, a grounding wire directs excess current from the appliance to the earth. This process not only protects your equipment, but also minimizes the risk of electrical hazards.
People usually understand the purpose of grounding as simply avoiding electric shocks however, it also has many other functions in practice such as protecting equipment and wiring from the impact of current storms, preventing combustion/overheating, providing protection from lightning strikes, protection from static discharge, and ensuring the reliability of electrical systems. We can say it is like a “safety net” for capturing stray current before it does any damage.
Importance of Grounding Wires
Effective means of lightning protection and mitigation. The grounding wire is the first line of defense against electric shock. For example, if a household appliance is not grounded, its metal casing may become electrically charged when the insulation is damaged, which may lead to an electric shock accident if contacted. With a grounding wire, the leakage current is directed to earth, protecting the user from harm.
Electromagnetic compatibility and interference suppression. For example, the grounding of a spectrum analyzer prevents electromagnetic noise from surrounding equipment from affecting the measurement results and ensures high accuracy of the experiment.
Static discharge. For flammable and explosive environments, the grounding wire can effectively release the accumulated static electricity and prevent static sparks from causing explosions or fires.
Components of a grounding system
A grounding system consists of several key components that work together to keep your home safe. Understanding these components can help you realize the importance of a well-maintained grounding system.
Grounding Rods
Grounding rods are metal rods that are inserted into the ground to provide a physical connection between the electrical system and the ground. They are the primary point of contact for the grounding wire that make sure excess power has a direct path to safely dissipate.
Grounding Conductors

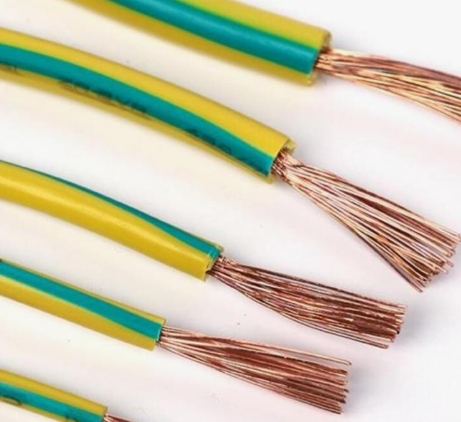

Yellow-green striped grounding wires that connect the electrical system to the grounding rod. They carry excess current away from the appliance and into the earth. These conductors must be made of materials that can withstand high electrical loads to be safe and reliable, such as copper or aluminum.
Grounding Electrodes
Grounding electrodes are components that make contact with the earth and provide a stable connection to the grounding system. They include grounding rods, metal water pipes, or other conductive materials buried in the ground. The choice of grounding electrode depends on local building codes and the specific needs of the electrical system.
How Grounding Wires Function
We divide the work of the grounding wire into two main areas: the path of the fault current and its interaction with other electrical components.
Fault Current Pathway
A grounding wire directs the current or charge in a circuit underground to protect personal safety and equipment. The stabilization of voltage levels keeps electrical systems running efficiently and safely.
Fault Current Diversion
Fault current shunting involves the ground wire acting as a low-resistance path for excess current.
Interaction with other electrical components
Connection to Circuit Breakers
Ground wires work in conjunction with circuit breakers to improve home electrical safety. Circuit breakers are designed to interrupt current flow when a fault is detected.
Integration with Surge Protectors
Surge protectors also rely on grounding wires to function effectively. These devices protect appliances from voltage spikes by directing excess power into the ground.
Common Issues with Grounding Wires
Poor Grounding Signs
Flickering Lights
Are your lights flickering unexpectedly? This could be a sign of a poor earth connection. Flickering lights usually indicate an unstable electrical connection. When the grounding system fails to provide a stable path for energizing the electricity, it can lead to fluctuations in the power supply.
Frequent Tripping of Circuit Breakers
This indicates that your grounding system is not effectively diverting excess current. It can lead to repeated interruptions in power supply, indicating the need for an inspection.
Causes of Grounding Problems
Corrosion and wear and tear
Over time, grounding conductors and components are subject to corrosion and abrasion. Exposure to moisture and environmental elements can corrode metal parts and weaken the grounding system. This degradation reduces the system’s ability to conduct electricity safely.
Improper Installation
This can lead to changes in power quality and increase the risk of electrical hazards.
Common types of grounding cables
Common types of grounding cables are bare copper and insulated copper. Bare copper is highly conductive and is suitable for outdoor grounding systems or highly corrosive environments because of its direct contact with the soil and its ability to dissipate current quickly.
The flexible construction of stranded copper wire reduces the risk of mechanical damage that may be encountered during installation. In contrast, the stable structure of solid copper wires provides a more stable physical connection and conductivity, e.g. in the main grounding grid of a building.
Grounding conductors are used across a wide range of applications, from grounding wire for house to complex industrial systems and critical infrastructures. So grounding wires have a very important role in electrical systems. For more different specification requests or installation problems for grounding wires, please feel free to contact our ZW CABLE representatives!
