The use of “grounding wires” is prevalent in everyday life. However, do you know the purpose and importance of a ground wire? Grounding wires are integral in any electrical system, as safety is always a top priority. They provide an additional layer of protection for nearly all electrical circuits. Whether it is a home, office or industrial environment, the proper installation and maintenance of grounding cables is a basic requirement for the proper operation of electrical systems and the safety of personnel.
In the following section, we can gain a clear understanding of the content：
- Decoding the basics of grounding cables
- The mechanism behind its workings
- The purpose of ground wire

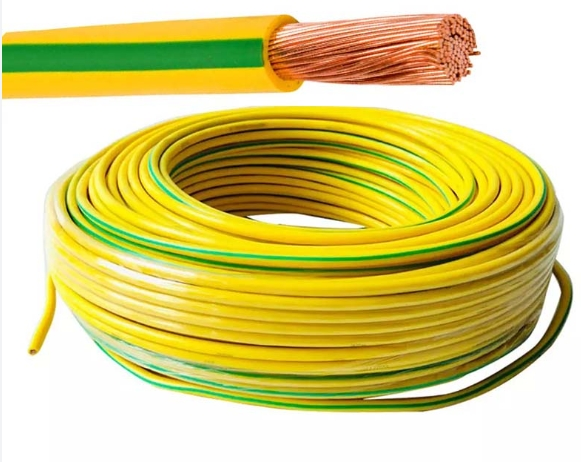

What is Grounding wire?
A grounding wire is an important part of an electrical system designed to establish a direct connection to the earth. Its primary function is to provide a safe path for excessive voltage or irregular currents.
When such abnormalities occur, the grounding wire effectively directs the current away from the electrical system and towards the earth. This process reduces the risk of electric shock, fire and equipment damage. In addition, earthing prevents the build-up of potentially dangerous voltages, thus keeping the stability and safety of the entire power grid. Energy is transferred to the ground in an environmentally safe manner that does not harm the surrounding ecosystem.
Grounding Wire Basics:
About “ground wire colour”
Green is the predominant color for grounding wires and it can also be identified by green wires with yellow stripes or bare copper wires without colored insulation.
About “Types of Grounding wire”
Grounding wires are almost always made of copper, and most copper wire manufacturers offer a wide range of sizes. Most of the grounding wires that we use mostly have a variety of types to meet the needs and enhance safety:
e.g. the classification of conductors can include:
- Solid copper wire
- Stranded copper wire
In terms of insulation condition it can include:

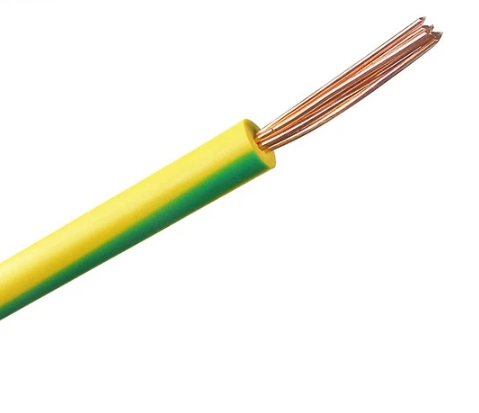

- Insulated ground wire
Insulated grounding wires are usually insulated with polyvinyl chloride (PVC) or high molecular weight polyethylene (HMWPE).
What is the purpose of grounding wire?
Grounding wires are vital in providing a safety path for electrical systems in case of a short circuit or circuit overload. A short circuit causes an imbalance of current between the two ends of the circuit. Without proper grounding, the soil and building materials around the wires can absorb some of the current, reducing the voltage level across the circuit. It not only causes damage to electrical equipment but also poses a threat to human health.
In such situations, the grounding wire can prompt a circuit breaker to automatically trip or cause a fuse to blow, thus preventing the risk of a possible electric shock. The precaution is far less severe and more manageable than the consequences of suffering a direct electric shock.
How Does Ground Wire Work?
The process by which a grounding wire works is a pivotal circuit protection device. It works by creating a safe path through the short-circuit current. At some point, the occurrence of a surge or short circuit may cause that path to temporarily fail, causing positive charges to seek an alternate path. Electrical grounding provides an alternate path to divert the current away from the safe area before the risk of a possible electric shock.
A ground wire directly connects the system to earth. As a result, when faced with high voltage or irregular currents, the grounding wire, secured with a grounding clamp, secures that power is safely transferred to the ground rather than further into the electrical system. The method of energy transfer is not only safe and efficient, but also environmentally friendly.
The benefits of grounding are varied and significant.
- First, it reduces the potentially dangerous buildup of static electricity in electrical systems.
- Second, grounding prevents the risk of electric shock that occurs when the human body comes into contact with conductive parts.
- Finally, even in the event of a fault, the grounding system is still able to quickly cut off the power supply, thus minimizing the impact of the fault on other equipment and personnel.

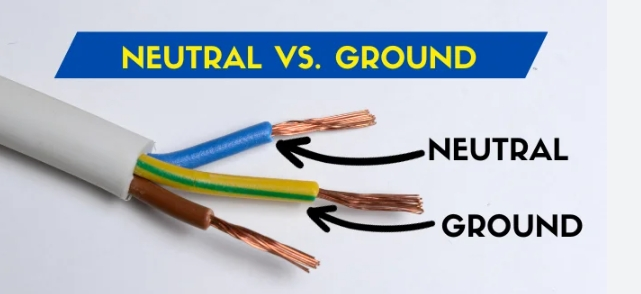

Ground vs neutral wire
Typically, how do we recognize the two types of cables? From the outside, Green wires or green wires with a yellow stripe indicate a ground wire, while blue wires usually signify a neutral wire colour.
Both ground and neutral wires play a indispensable role in assuring the safety of an electrical system, but there is a major difference between their uses in an electrical system.
- Grounding wires are specifically designed as a safety measure to prevent electrocution, fire and equipment damage in the event of a fault.
- The neutral wire provides a return path for current to return to the power source in the circuit. It helps balance electrical loads and prevents overloads that could otherwise lead to overheating and potential fire hazards.
In short, but whereas grounding wires are more concerned with preventing injury in the event of an electrical fault, neutral wires work to maintain circuits in proper working order, assuring that all equipment is supplied with adequate power while avoiding safety risks due to overloading
Grounding Wire Conclusion
Grounding wires can go a long way toward maintaining stable operation of your electrical system as well as protecting the safety of its occupants. Whether it’s aluminum or copper PV wire, bare copper grounding wire, stranded wire or solid wire, you can effectively strengthen your grounding system. Please also take care to select and use the correct wire for each situation. Do you have questions about grounding your home or are you looking for the best shopping deals? Let ZW Cable assist you with professional advice and reasonable ground wire price.
FAQs:
Where is ground wire used?
Typically, we can connect grounding wires to outlets, various electrical equipment and the ground through the breaker box. Ground wires are found in all kinds of buildings, including homes, medical facilities, stadiums, airports, and other public facilities. They are also used on construction sites and to connect large construction equipment, such as generators, to provide electricity.
What is the difference between grounding and earthing?
Both are essential practices for maintaining safety and functionality in electrical installations.
Earthing involves connecting the non-current carrying parts of an electrical system to the earth. It makes certain that in case of an insulation failure, the leaked current will safely dissipate into the ground, protecting individuals from electric shocks.
Grounding involves connecting the current-carrying parts of the electrical system directly to the ground. Grounding wire is essential for maintaining balanced loads and stabilizing voltage levels within the electrical system.
What happens if ground wire is not connected?
The primary purpose of grounding wire as a safety measure for electrical systems is to provide you and your home with the necessary protection in the event of a circuit failure or electrical overload. In real life, power surges occur from time to time.
They are transient high voltages and currents generated by the starting or switching of electrical equipment. In this case, without proper grounding, powerful currents may be released from wires without warning, posing a great threat to the surrounding environment. It may cause damage to household appliances, or even fire or even personal safety.
